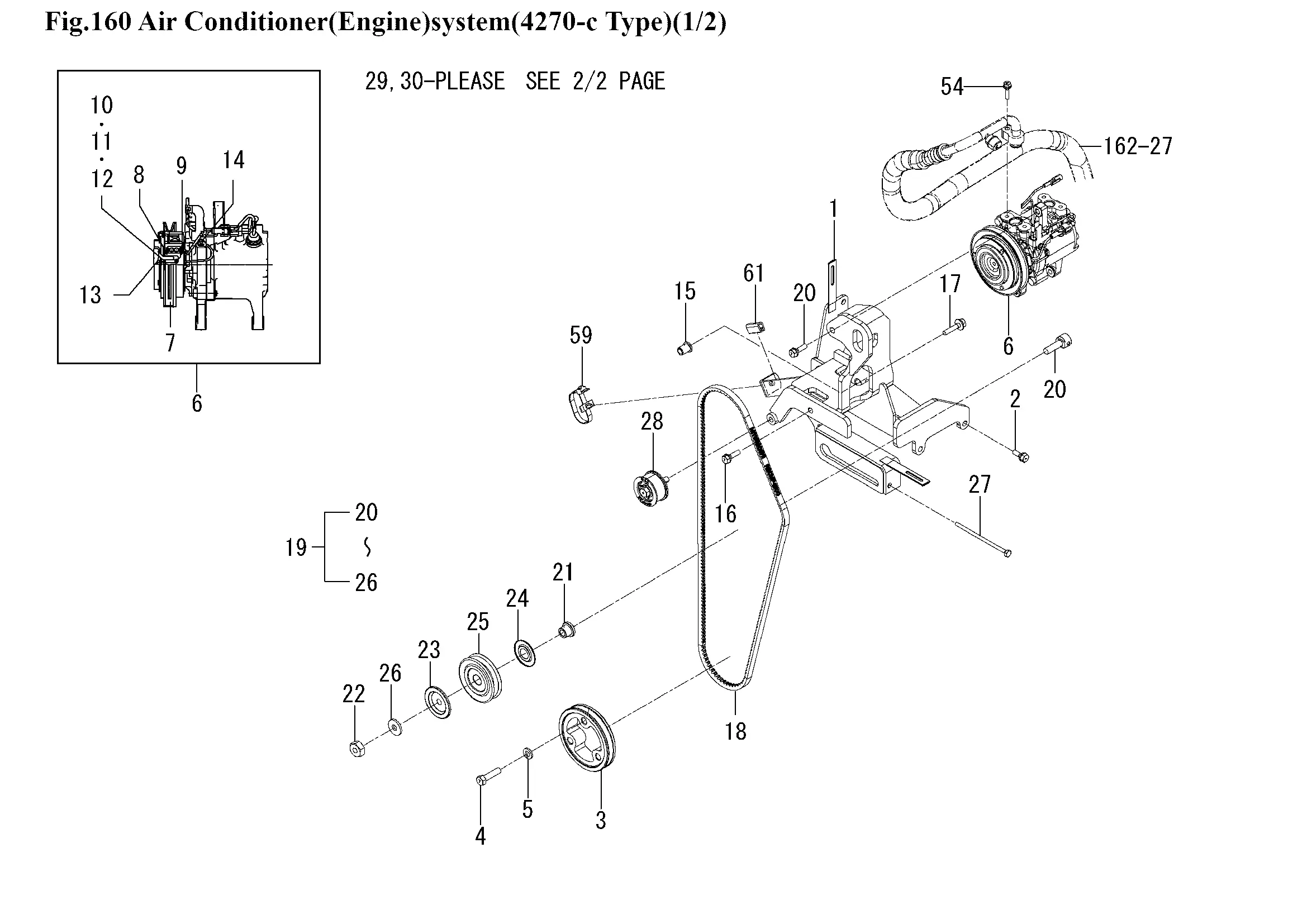

Kompressor, Klimaanlage
Ersatzteile (62 Teile)
1
1855-780-200-10
2
V211-560-802-00
3
PULLY/V/HM/104
4
V203-361-003-50
5
WASHER,SP/M10
6
COMPRESSOR ASSY
7
1817-780-252-00
8
1716-780-303-00
9
1716-780-304-00
10
1716-780-305-00
11
1716-780-306-00
12
1716-780-307-00
13
1716-780-308-00
14
1716-780-309-00
15
1716-780-001-00
16
BOLT,S/M8X25/7T
17
V211-660-803-50
18
BELT/VCOG/HM/50
19
1801-780-300-00
20
1801-780-011-00
21
COLLAR
22
1801-780-013-00
23
1801-780-014-00
24
1801-780-015-00
25
PULLEY/VA076
26
V411-260-010-00
27
BOLT/M06X110
28
PULLEY/FT/45X20 SET
29
CONDENSER ASSY
30
1757-780-003-00
31
1757-780-002-00
32
WASHER/6X24X2
33
V210-260-603-00
34
RECEIVER/DRYER ASSY
35
1729-780-250-10
36
V210-360-602-00
37
1716-780-006-00
38
JOINT/RECEIVER ASSY
39
O-RING
40
V210-360-602-50
41
1855-780-220-00
42
O-RING
43
V210-260-602-50
44
1855-780-230-00
45
1729-780-512-00
46
O-RING
47
PLUG
48
BOLT,SP/M6X30
49
V210-360-602-50
50
1729-780-001-00
51
FLANGEBOLT/M6X12
52
1757-780-004-00
53
NUT/WASHER/M6
54
V210-360-602-50
55
1829-780-003-00
56
1829-780-004-10
57
1800-780-007-00
58
CLIP/HOSE/18-22
59
1560-666-004-00
60
1342-402-006-00
61
TRIM/30
62
BAND,WIRE/140
