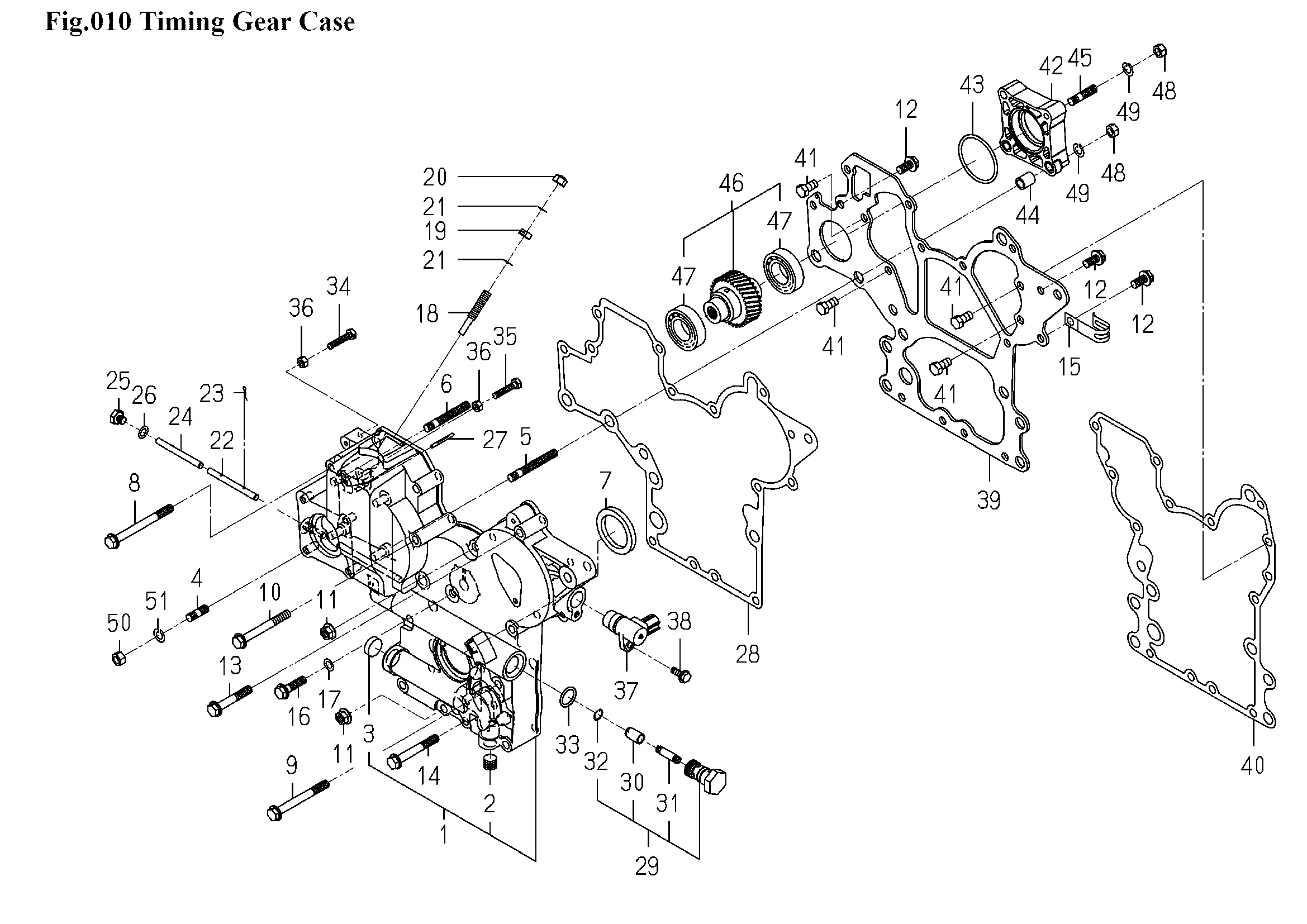

Stirnradgetriebe
Ersatzteile (51 Teile)
1
6211-310-040-60
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
8
FLANGEBOLT/M8X85
9
FLANGEBOLT/M8X75
10
FLANGEBOLT/M8X70
11
NUT/M08
12
FLANGEBOLT/M8X16
13
FLANGEBOLT/M8X50
14
FLANGEBOLT/M8X60
15
HOLDER/JE/9-9
16
V231-360-803-00
17
WASHER/08X14X01
18
6215-546-003-30
19
V305-260-008-00
20
6209-490-006-00
21
WASHER/PLATE/COPPER
22
PIN/ARM
23
PIN/SNAP
24
PIN
25
PLUG/SCREW
26
WASHER/08X14X01
27
PIN/GROOVE
28
6211-312-005-10
29
VALVE/RELIEF ASSY
30
PISTON/VALVE/RELIEF
31
SPRING/RELIEF VALVE
32
RING,SNAP/12 C
33
O-RING/1A,P18
34
6209-050-001-00
35
6209-050-002-00
36
V301-260-006-00
37
SENSOR/REVOLUTION/R
38
FLANGEBOLT/M6X16
39
6211-311-013-20
40
6211-312-006-10
41
6902-050-816-00
42
6211-319-032-00
43
O-RING/1A,S50
44
6209-749-001-30
45
STUD
46
SHAFT/HYDRAULIC ASSY
47
V600-110-600-50
48
NUT/M8
49
WASHER,SP/M8
50
NUT/M8
51
WASHER,SP/M8
