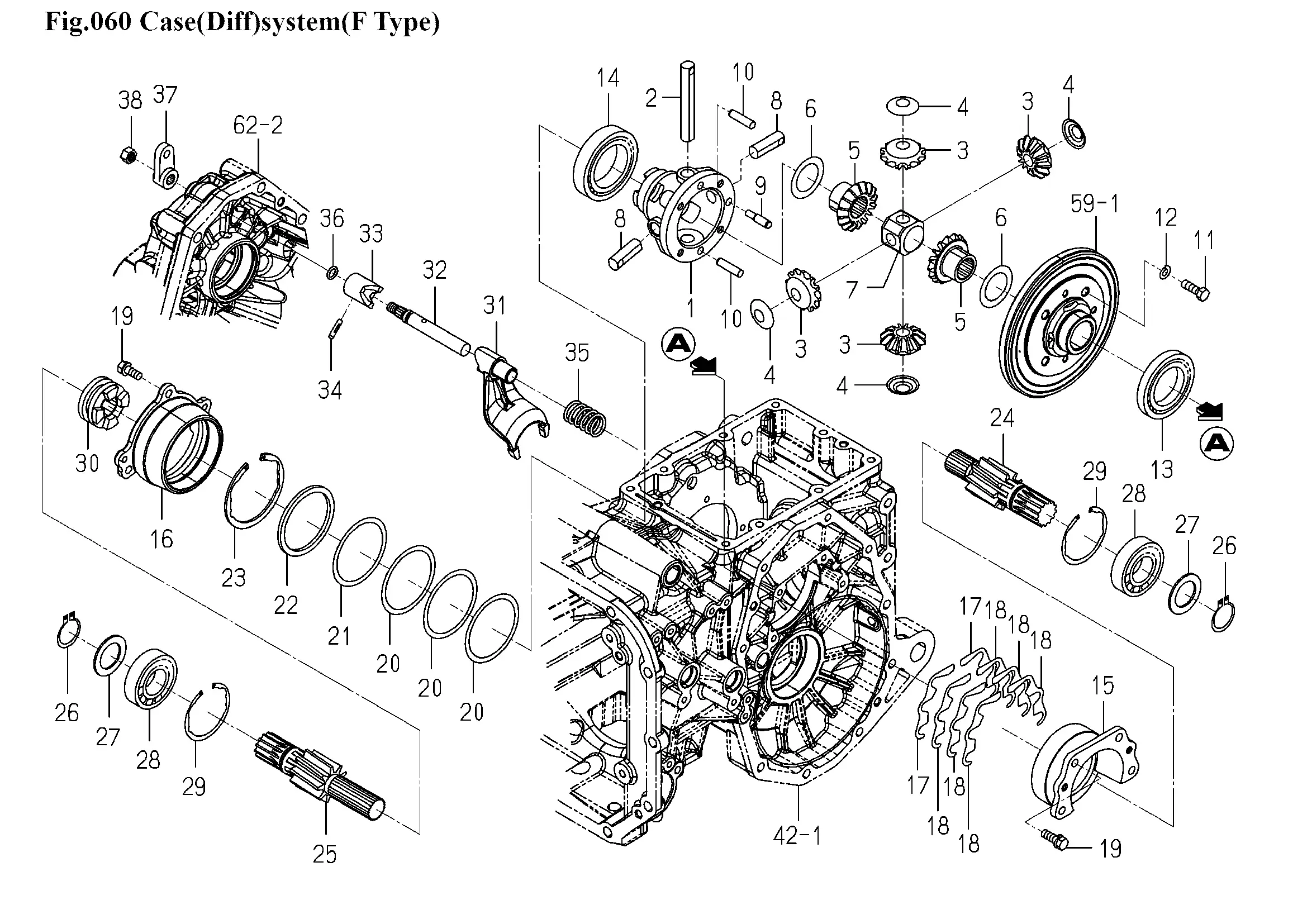

Differentialgetriebe
Ersatzteile (38 Teile)
1
1774-304-200-10
2
PIN/14X94
3
1717-304-071-10
4
1802-432-001-00
5
1774-304-024-10
6
COLLAR,THRUST
7
HOLDER/SHAFT/DIFF
8
PIN/14X40
9
PIN/08X32
10
1672-301-002-00
11
BOLT/M8X25
12
WASHER,SP/M8
13
BEARING/BALL
14
BEARING,RB/6010
15
METAL,DIFF-CASE LH
16
1855-304-003-00
17
1427-201-014-10
18
1427-201-015-10
19
BOLT,S/M8X25/7T
20
SHIM/0.2
21
SHIM/0.1
22
WASHER/68X80X02
23
RING,SNAP/R80
24
1855-304-001-00
25
1855-304-002-00
26
RING,SNAP/30 C
27
WASHER/36X46X02
28
BEARING/BALL
29
RING,SNAP/R62
30
1776-304-005-00
31
1774-304-019-20
32
STAY/SHIFTER
33
CAM/DIFFLOCK
34
V530-240-502-40
35
SPRING,PRESS/40
36
O-RING/1A,P10A
37
ARM/DIFF
38
1776-201-011-10
