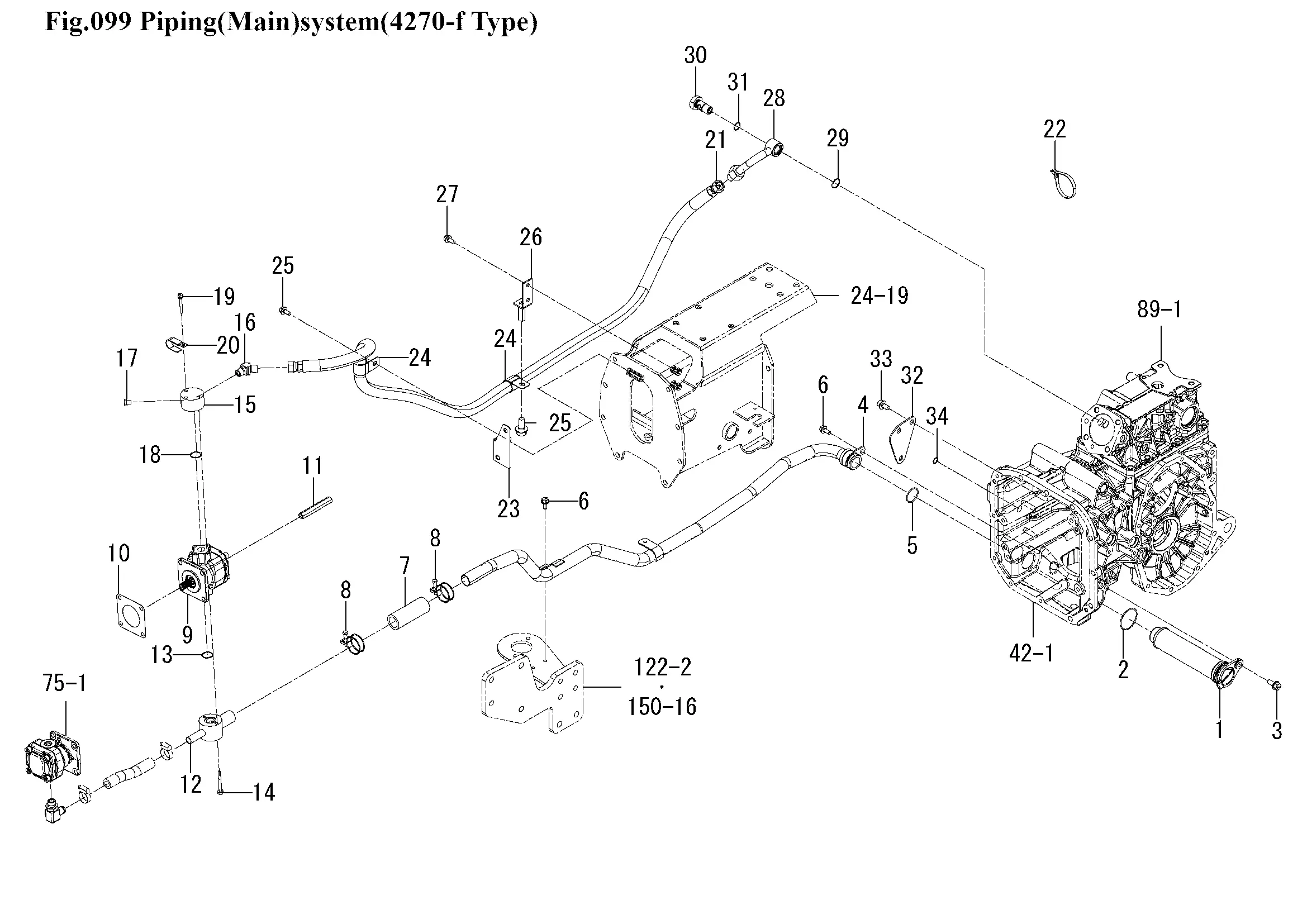

Hydraulikleitung, Pumpe, Filter
Ersatzteile (34 Teile)
1
FILTER/SUCTION/250
2
O-RING/1A,G45
3
V231-361-002-00
4
1855-508-340-00
5
O-RING/1A,P29
6
FLANGEBOLT/M8X16
7
1550-508-001-20
8
CLAMP/WIRE/28-36
9
PUMP/GEAR/L9 ASSY
10
PACKING,OIL PUMP
11
NUT/M08
12
PIPE/SUC/FRONT COMP
13
O-RING/1B,P20
14
BOLT,S/M6X50/7T
15
1775-508-001-10
16
ADAPTER/45/R3/8XG3/
17
PLUG/SCREW/SEAL
18
O-RING/1B,P20
19
BOLT,S/M6X40/7T
20
3737-172-009-00
21
1774-508-550-00
22
1342-402-006-00
23
1855-508-240-00
24
1440-105-006-00
25
FLANGEBOLT/M8X16
26
1855-508-250-00
27
FLANGEBOLT/M8X16
28
1855-508-290-00
29
O-RING/1B,P20
30
1855-508-002-00
31
O-RING/1B,P14
32
1855-508-004-00
33
V231-361-001-60
34
O-RING/1B,P10A
