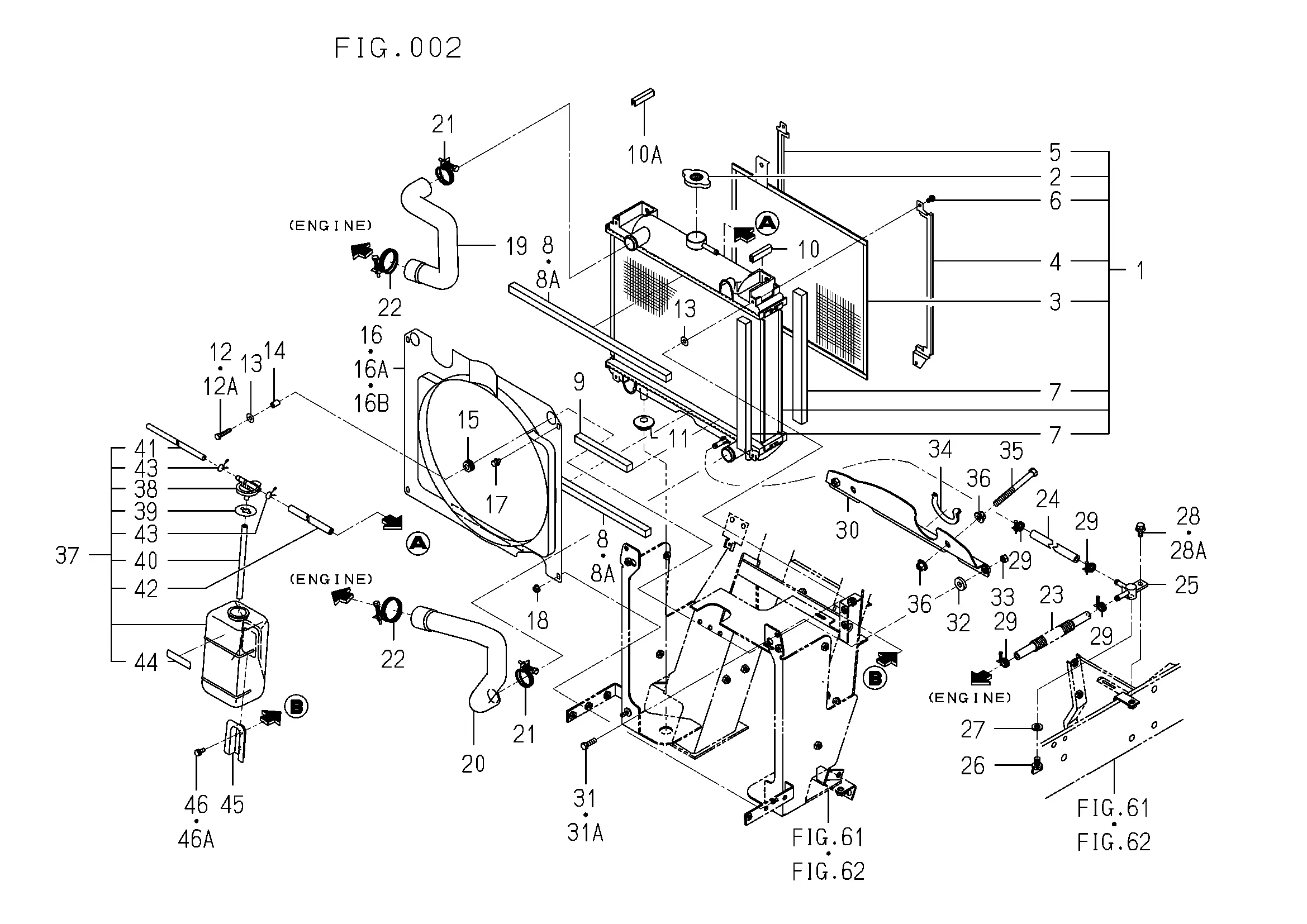

Kühler
Ersatzteile (54 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1650-102-006-00
8A
INSULATOR
9
INSULATOR/15X15X140
10
3666-202-005-00
10A
PAD/50
11
BUSH,LEVER
12
V200-260-603-00
12A
FLANGEBOLT/M6X30
13
WASHER
14
COLLAR
15
GROMMET
16
1725-102-220-10
16A
1728-102-210-10
16B
SHROUD
17
V210-360-601-20
18
NUT/WASHER/M6
19
HOSE/RADIATOR/UPPER
20
HOSE/RADIATOR/LOWER
21
J061-230-038-00
22
CLAMP/WIRE/36-44
23
Schlauch
24
HOSE/290
25
CONNECTOR
26
1424-101-203-00
27
PACKING
28
BOLT,SP/M8X20
28A
BOLT,SP/M8X16
29
J061-210-015-00
30
1725-102-200-20
31
V201-260-802-50
31A
FLANGEBOLT/M8X25
32
CUSHION/RUBBER/10X25
33
NUT/M8
34
TRIM/140
35
V201-261-010-00
36
NUT/WASHER/M10
37
RESERVETANK ASSY
38
CAP
39
PACKING
40
HOSE/RUBBER
41
PIPE
42
1705-102-252-20
43
CLAMP
44
6221-408-007-00
45
Halter
46
V210-260-601-60
46A
FLANGEBOLT/M6X12
