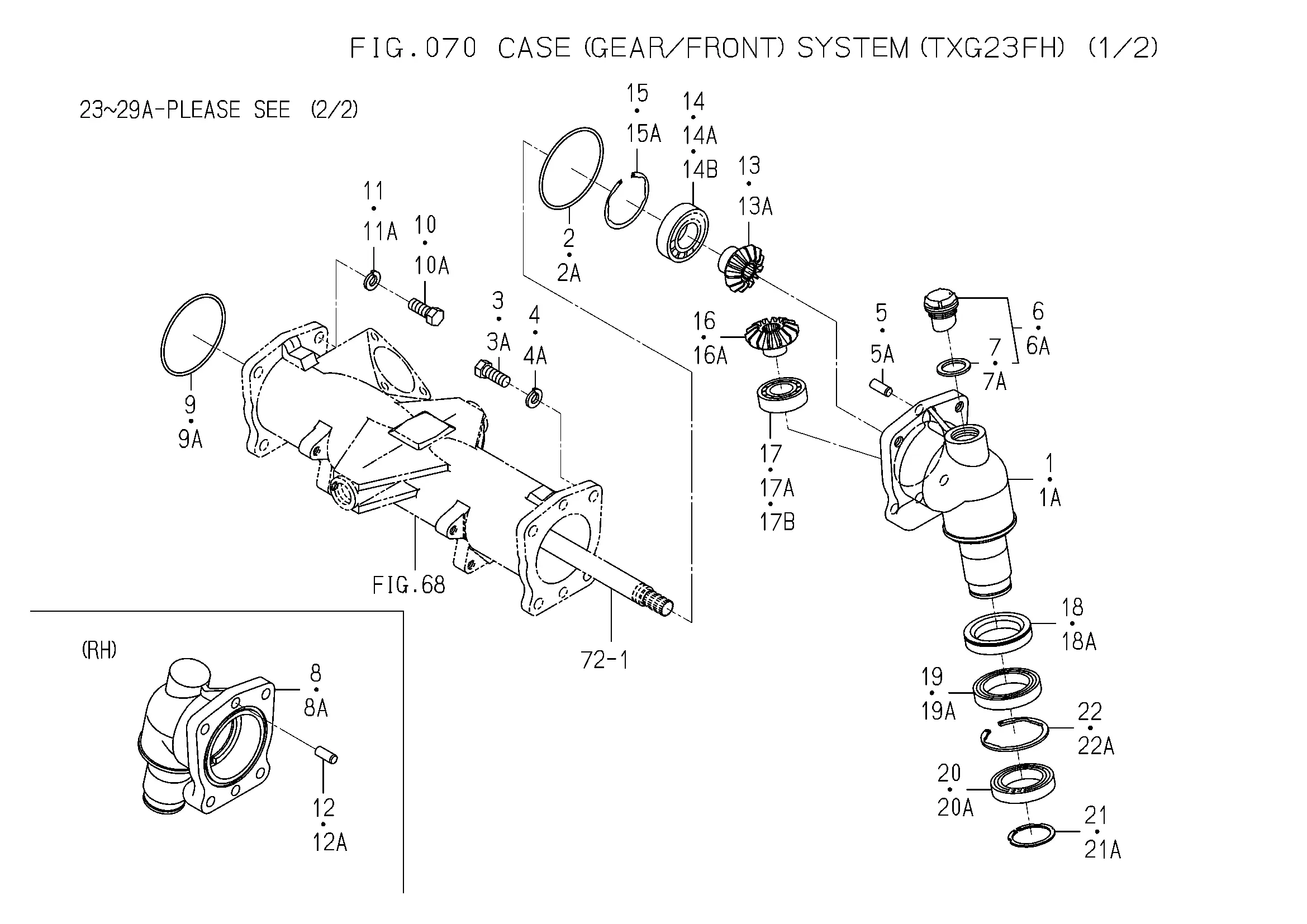

Achsschenkel, vorne
Ersatzteile (89 Teile)
1
Gehäuse, li
1A
Gehäuse, li
2
O-RING/1A,G90
2A
O-RING/1A,G90
3
BOLT/M12X30/7T
3A
BOLT/M12X30/7T
4
WASHER,SP/M12
4A
WASHER,SP/M12
5
PIN,ST,B/10X24
5A
PIN,ST,B/10X24
6
Deckel
6A
CAP,OIL
7
Dichtung
7A
PACKING
8
Gehäuse, re
8A
Gehäuse, re
9
O-RING/1A,G90
9A
O-RING/1A,G90
10
BOLT/M12X30/7T
10A
BOLT/M12X30/7T
11
WASHER,SP/M12
11A
WASHER,SP/M12
12
PIN,ST,B/10X24
12A
PIN,ST,B/10X24
13
Zahnrad, 13Z
13A
Zahnrad, 13Z
14
BEARING,RB/6206
14A
V600-410-620-60
14B
V600-410-620-60
15
RING,SNAP/R62
15A
RING,SNAP/R62
16
Zahnrad, 14Z
16A
Zahnrad, 14Z
17
BEARING,RB/6205
17A
V600-410-620-50
17B
V600-410-620-50
18
SEAL/OIL ASSY
18A
SEAL/OIL ASSY
19
BEARING,RB/6910
19A
BEARING,RB/6910
20
Kugellager
20A
Kugellager
21
V706-140-045-00
21A
V706-140-045-00
22
V707-140-068-00
22A
V707-140-068-00
23
1725-434-006-00
23A
1725-434-006-00
24
PLUG/SCREW/SEAL
24A
PLUG/SCREW/SEAL
25
V201-361-003-50
25A
V201-361-003-50
26
V304-460-010-00
26A
V304-460-010-00
27
1725-434-007-00
27A
1725-434-007-00
28
PLUG/SCREW/SEAL
28A
PLUG/SCREW/SEAL
29
V201-361-003-50
29A
V201-361-003-50
30
V304-460-010-00
30A
V304-460-010-00
31
Zahnrad
31A
Zahnrad
32
BEARING,RB/6304
32A
V600-410-630-40
32B
V600-410-630-40
33
SHAFT/WHEEL
33A
SHAFT/WHEEL
34
Kegelrad
34A
Kegelrad
35
WASHER/27X36X03
35A
WASHER/27X36X03
36
SEAL/OIL ASSY
36A
SEAL/OIL ASSY
37
BEARING,RB/6205
37A
V600-410-620-50
37B
V600-410-620-50
38
BEARING,RB/6206
38A
V600-410-620-60
38B
V600-410-620-60
39
1725-434-014-00
39A
Gehäusedeckel, Vorderachse
40
PIN,ST,B/10X24
40A
PIN,ST,B/10X24
41
BOLT,SP/M10X30/7T
41A
BOLT,SP/M10X30/7T
42
1725-434-015-20
42A
1725-434-015-20
