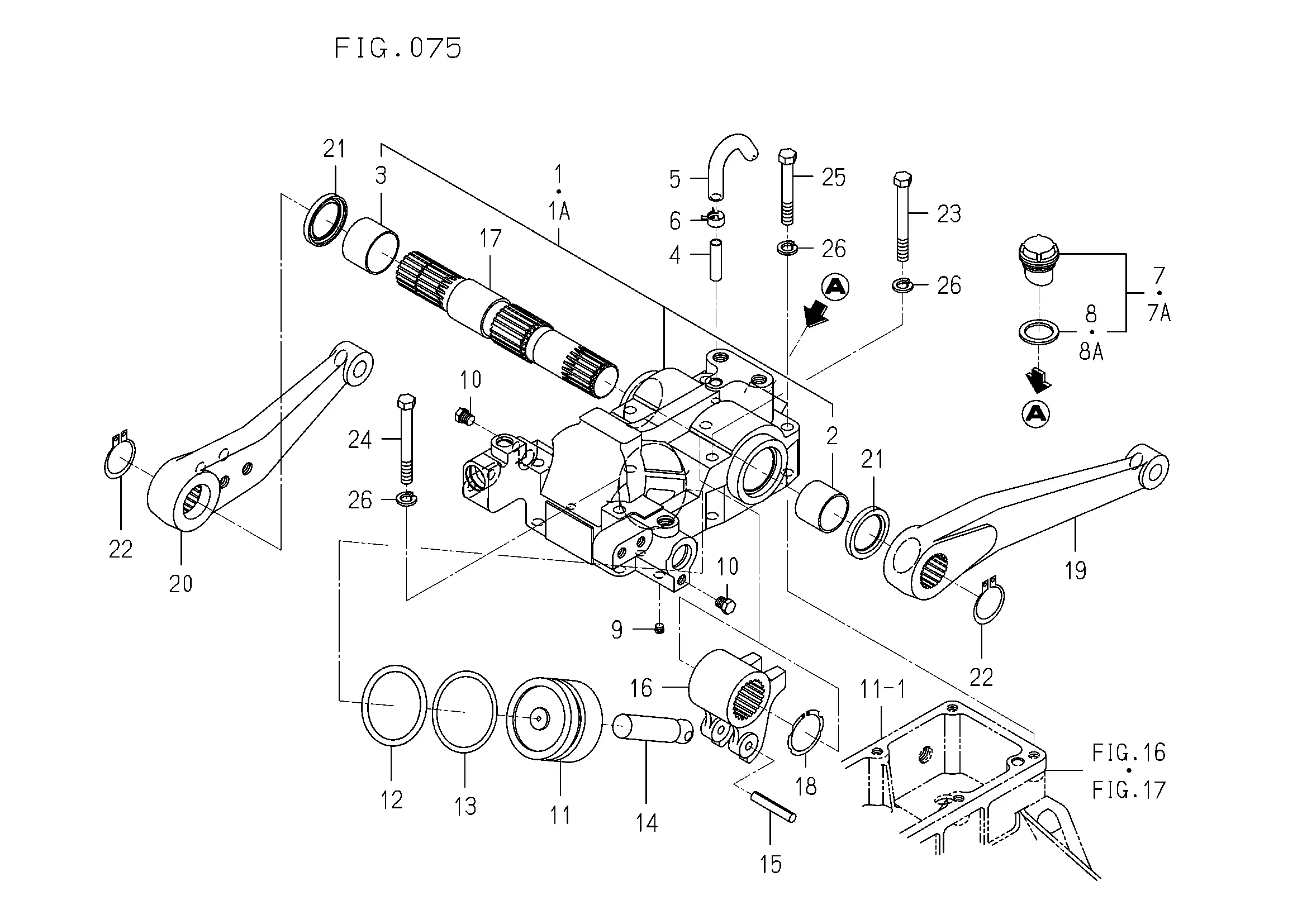

Zylinder, Hubarme Heckhydraulik
Ersatzteile (29 Teile)
1
Gehäuse
1A
1725-501-200-20
2
BUSH/35X39X30
3
BUSH/40X43X30
4
PIPE,BREATHER
5
Schlauch
6
J062-138-148-00
7
Deckel
7A
CAP,OIL
8
Dichtung
8A
PACKING
9
PLUG/SCREW
10
PLUG/SCREW/SEAL
11
PISTON
12
O-RING/1B,P65
13
RING,BACK UP
14
ROD
15
V580-140-805-00
16
CRANK/LIFT
17
Welle
18
RING,SNAP/S40
19
ARM/LIFT/LH
20
ARM/LIFT/RH
21
SEAL,OIL/VC35506
22
RING,SNAP/35 C
23
V201-361-008-50
24
BOLT/M10X85/7T,SEAL
25
V201-361-007-00
26
WASHER,SP/M10
