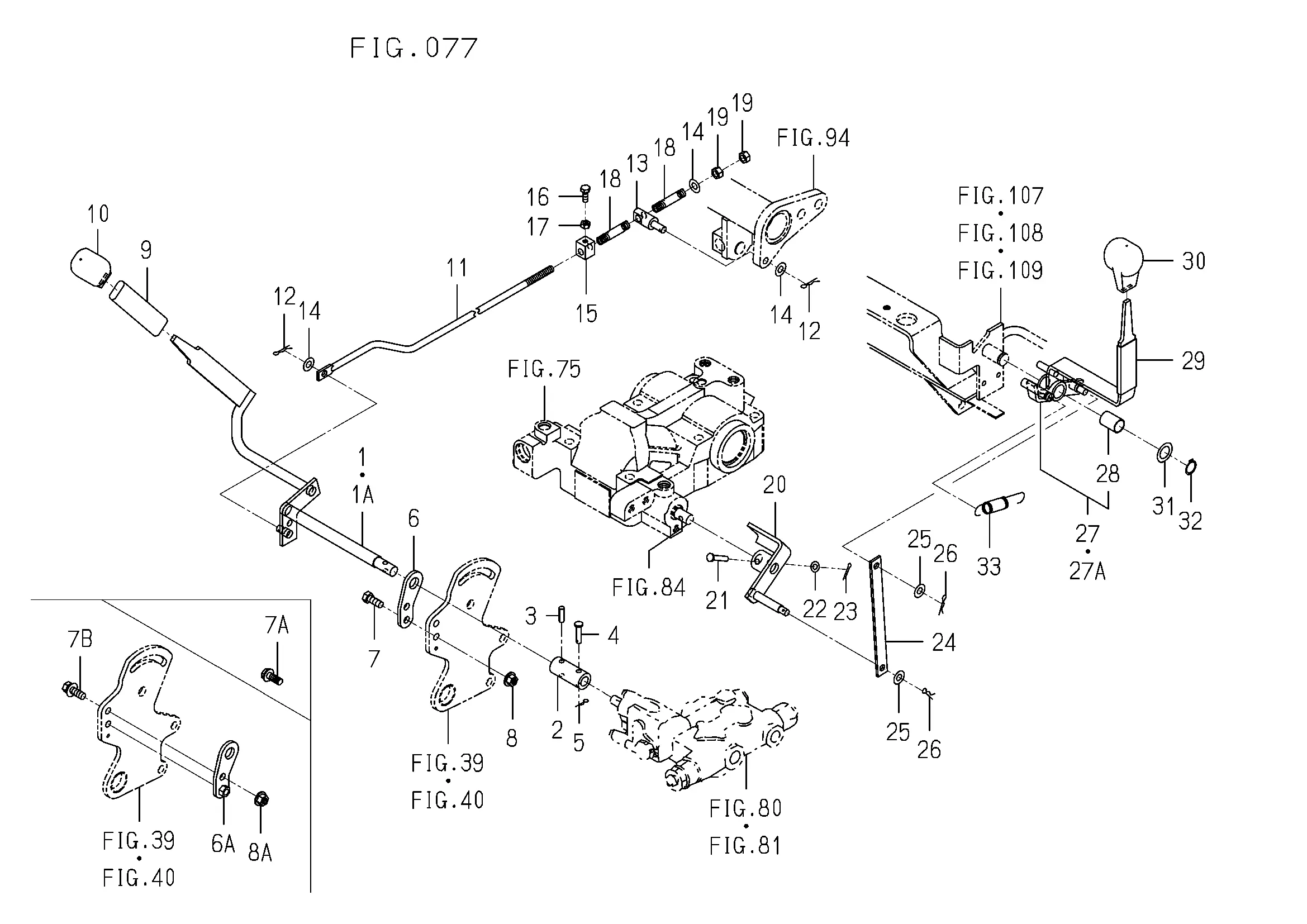

Hebel Heckhydraulik bis Ser.Nr. -6058
Ersatzteile (39 Teile)
1
Hebel
1A
1725-505-200-10
2
Buchse
3
V580-140-602-20
4
Bolzen 06x26
5
PIN/SNAP
6
Platte
6A
1725-505-250-00
7
V201-360-802-00
7A
V231-360-802-00
7B
BOLT,SP/M8X25
8
Kombimutter-M8
8A
Kombimutter-M8
9
INSULATOR/120
10
GRIP/SUB
11
ROD/M08X465
12
PIN/SNAP
13
Bolzen 16x48
14
WASHER,PL/M8
15
Führung
16
V200-360-601-60
17
V301-260-006-00
18
Feder
19
NUT/M8
20
1725-505-210-10
21
PIN/06X31
22
V411-260-006-00
23
V500-162-001-50
24
Strebe, 16x180
25
WASHER,PL/M8
26
PIN/SNAP
27
Hebel, PTO
27A
1725-505-240-20
28
3662-223-005-00
29
INSULATOR/LEVER/SUB
30
GRIP/MID/PTO
31
WASHER/17X26X02
32
RING,SNAP/16 C
33
Feder, PTO Spannrolle
