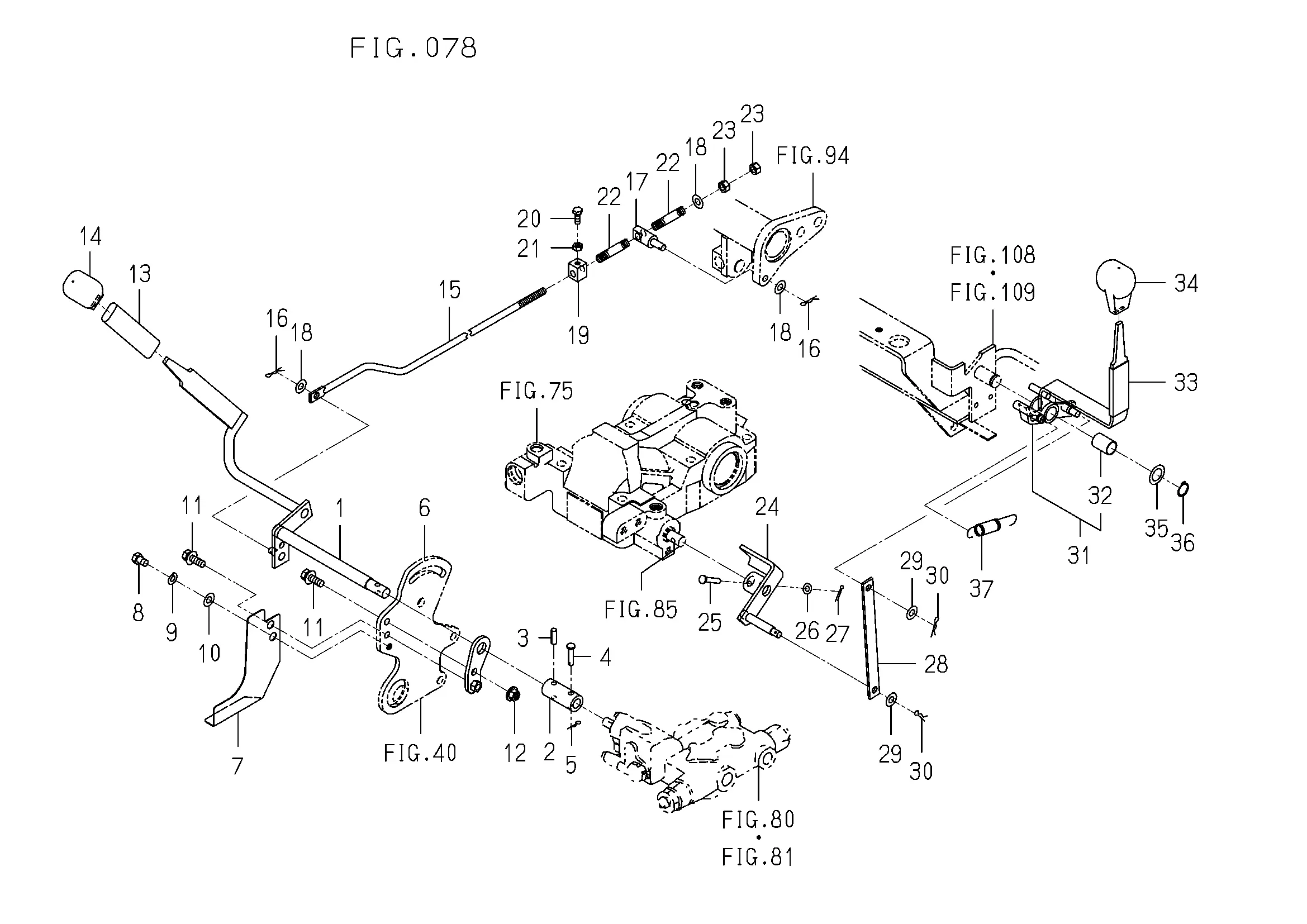

Hebel Heckhydraulik ab Ser.Nr. -6059
Ersatzteile (37 Teile)
1
1725-505-200-10
2
Buchse
3
V580-140-602-20
4
Bolzen 06x26
5
PIN/SNAP
6
1725-505-250-00
7
1739-505-002-10
8
Schraube M8X12
9
WASHER,SP/M8
10
WASHER,PL/M8
11
BOLT,SP/M8X25
12
Kombimutter-M8
13
INSULATOR/120
14
GRIP/SUB
15
ROD/M08X465
16
PIN/SNAP
17
Bolzen 16x48
18
WASHER,PL/M8
19
Führung
20
V200-360-601-60
21
V301-260-006-00
22
Feder
23
NUT/M8
24
1725-505-210-10
25
PIN/06X31
26
V411-260-006-00
27
V500-162-001-50
28
Strebe, 16x180
29
WASHER,PL/M8
30
PIN/SNAP
31
1725-505-240-20
32
3662-223-005-00
33
INSULATOR/LEVER/SUB
34
GRIP/MID/PTO
35
WASHER/17X26X02
36
RING,SNAP/16 C
37
Feder, PTO Spannrolle
