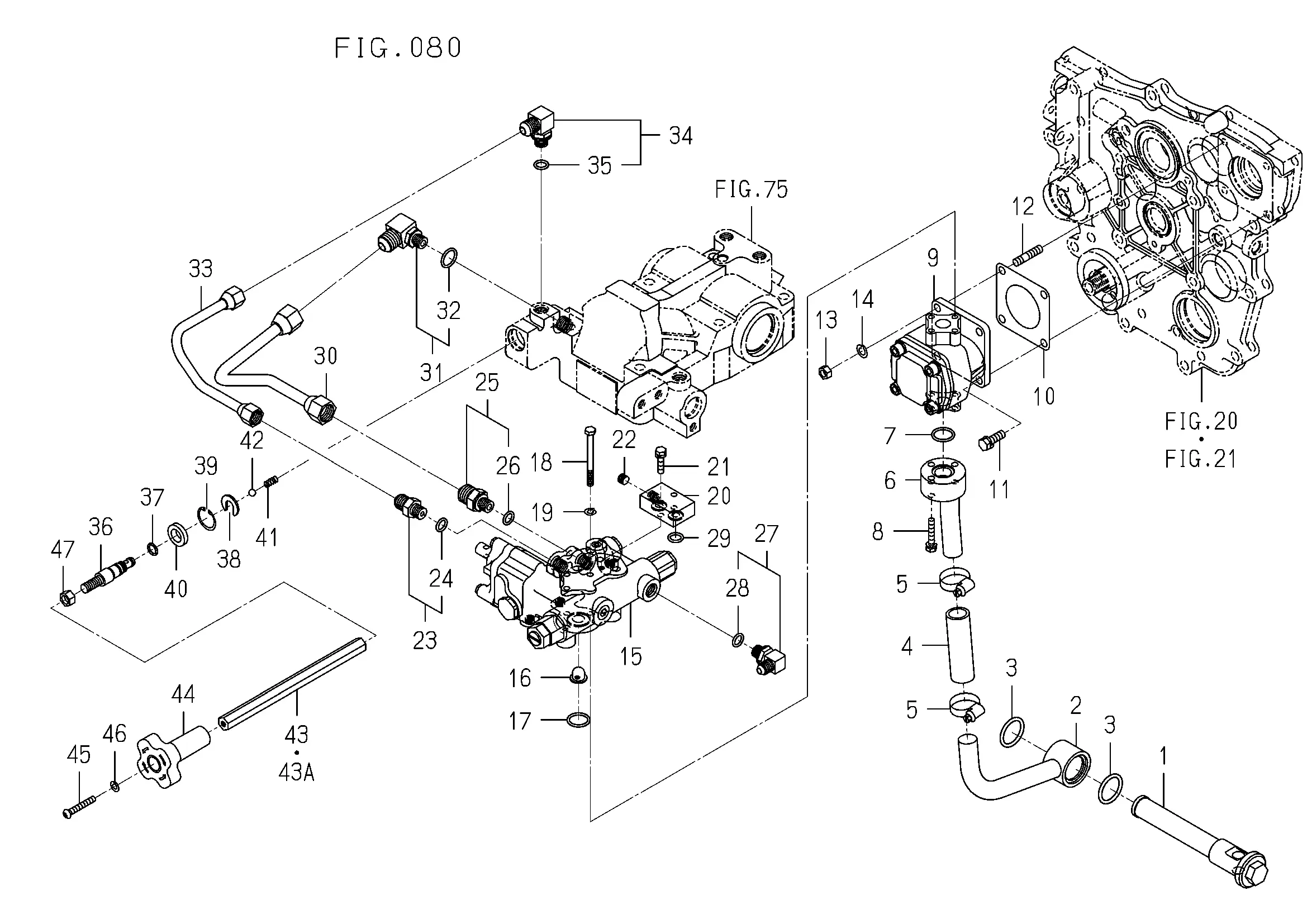

Hydraulikpumpe, -Steuerventil
Ersatzteile (49 Teile)
1
Hydraulikfilter
2
Hydraulikleitung
3
O-RING/1B,P28
4
Schlauch
5
J061-120-032-00
6
Leitung
7
O-RING/1B,P20
8
BOLT,S/M6X35/7T
9
Hydraulikpumpe
10
PACKING,OIL PUMP
11
BOLT,S/M8X25/7T
12
V251-260-802-50
13
NUT/M8
14
WASHER,SP/M8
15
Steuerventil
16
FILTER/LINE/12X18X15
17
O-RING/1B,P20
18
V200-360-606-50
19
V401-160-006-00
20
COVER
20
Adapter f.Hydr.-steuerungsventil TXG
21
BOLT,S/M6X25/7T
22
PLUG/SCREW
23
ADAPTER/PF1/4 ASSY
24
O-RING/1B,P11
25
1725-508-330-00
26
O-RING/1B,P11
27
ADAPTER/L/G1/4 ASSY
28
O-RING/1B,P11
29
O-RING/1B,P12
30
PIPE/RETURN COMP
31
ADAPTER/L/G1/4 ASSY
32
O-RING/1B,P18
33
PIPE/MAIN COMP
34
ADAPTER/L/PF1/4 ASSY
35
O-RING/1B,P11
36
SHAFT/SLOWRETURN
37
O-RING/1B,P10
38
PLATE/STOPPER
39
RING,SNAP/25 C
40
SEAL/DUST
41
SPRING/HC015
42
BALL,STEEL
43
Verstellwelle
43A
1563-507-221-20
44
KNOB
45
SCREW/M6X40
46
V401-160-006-00
47
NUT/M10
