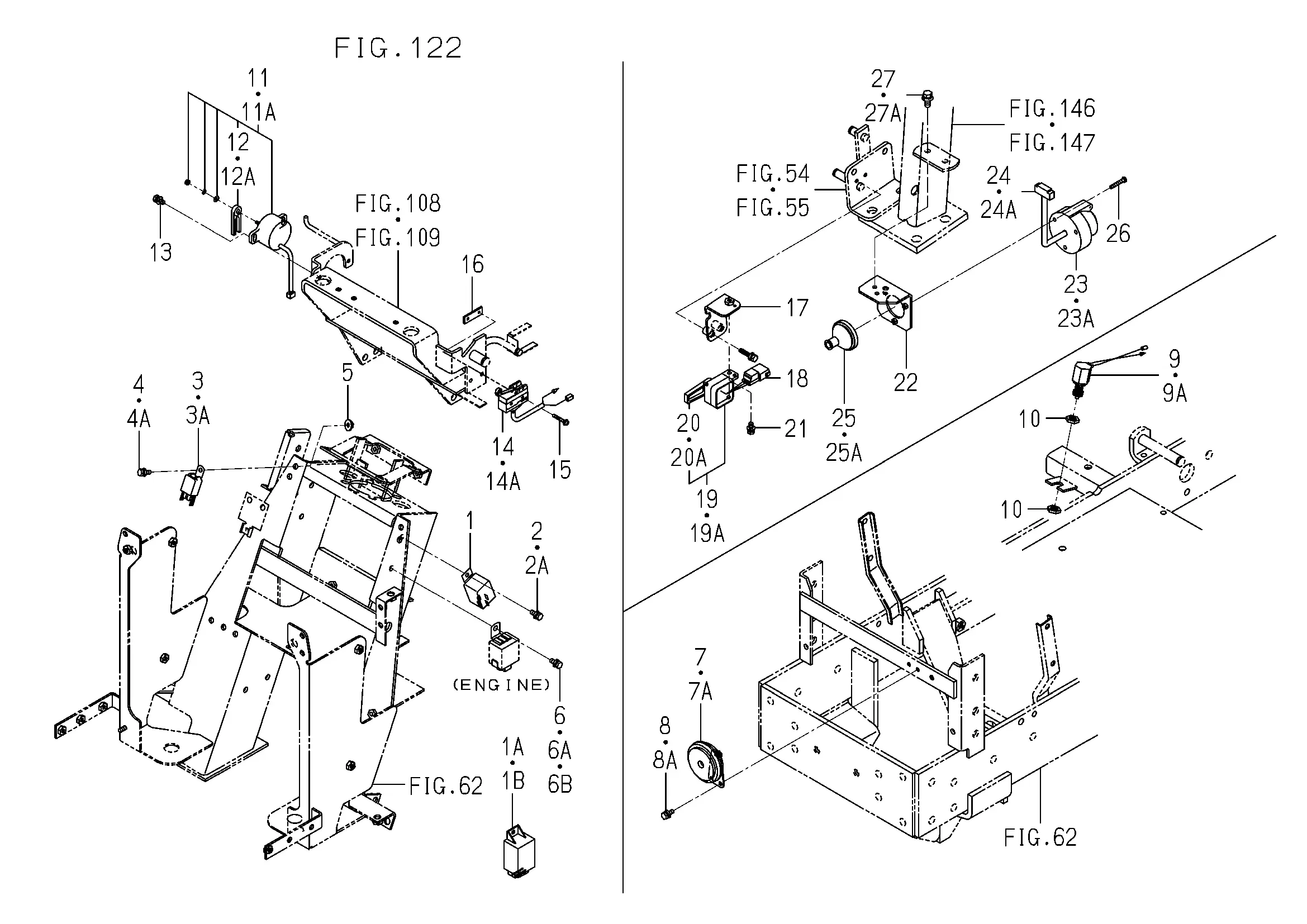

Schalter, Hupe, Steckdose ab Ser.Nr. 1293-
Ersatzteile (46 Teile)
1
1600-623-002-00
1A
Blinkrelais
1B
1739-681-220-10
2
BOLT,SP/M6X16
2A
FLANGEBOLT/M6X12
3
Relais Motorstart
3A
Relais Motorstart
4
BOLT,SP/M6X16
4A
FLANGEBOLT/M6X12
5
NUT/WASHER/M6
6
BOLT,SP/M6X16
6A
BOLT,SP/M6X16
6B
FLANGEBOLT/M6X12
7
Hupe
7A
Hupe
8
BOLT,SP/M6X16
8A
FLANGEBOLT/M6X12
9
SWITCH,STOP
9A
SWITCH,STOP
10
NUT,LOCK
11
SENSOR ASSY
11A
SENSOR ASSY
12
PLATE/SENSOR
12A
PLATE/SENSOR
13
BOLT,SP/M6X16
14
Sicherheitsschalter
14A
Sicherheitsschalter
15
Schraube M4x30
16
Platte
17
1739-681-210-20
18
BOLT,SP/M6X30
19
Bremslichtschalter
19A
Bremslichtschalter
20
ARM
20A
ARM
21
BOLT,SP/M6X16
22
Halter, Steckdose
23
PLUG/7P
23A
PLUG/7P
24
HARNESS/SOCKET ASSY
24A
HARNESS/SOCKET ASSY
25
1650-654-036-00
25A
1650-654-036-00
26
V120-265-003-00
27
BOLT,SP/M8X20
27A
FLANGEBOLT/M8X16
