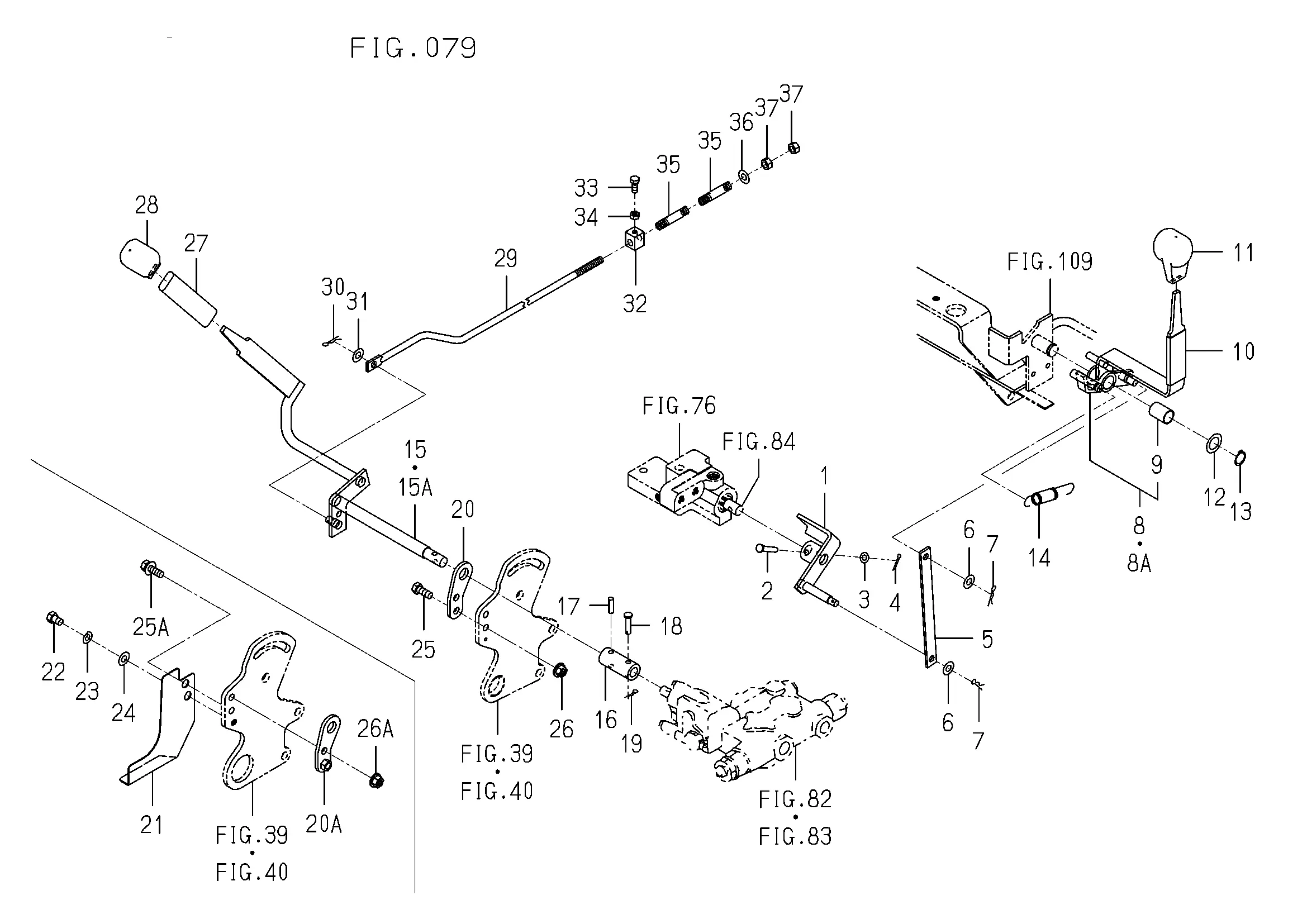

Hebel Mähwerkhöhenverstellung
Ersatzteile (42 Teile)
1
1725-505-210-10
2
PIN/06X31
3
V411-260-006-00
4
V500-162-001-50
5
Strebe, 16x180
6
WASHER,PL/M8
7
PIN/SNAP
8
Hebel, PTO
8A
1725-505-240-20
9
3662-223-005-00
10
INSULATOR/LEVER/SUB
11
GRIP/MID/PTO
12
WASHER/17X26X02
13
RING,SNAP/16 C
14
Feder, PTO Spannrolle
15
Hebel
15A
1725-505-200-10
16
Buchse
17
V580-140-602-20
18
Bolzen 06x26
19
PIN/SNAP
20
Platte
20A
1725-505-250-00
21
1739-505-002-10
22
Schraube M8X12
23
WASHER,SP/M8
24
WASHER,PL/M8
25
V201-360-802-00
25A
BOLT,SP/M8X25
26
Kombimutter-M8
26A
Kombimutter-M8
27
INSULATOR/120
28
GRIP/SUB
29
ROD/M08X465
30
PIN/SNAP
31
WASHER,PL/M8
32
Führung
33
V200-360-601-60
34
V301-260-006-00
35
Feder
36
WASHER,PL/M8
37
NUT/M8
