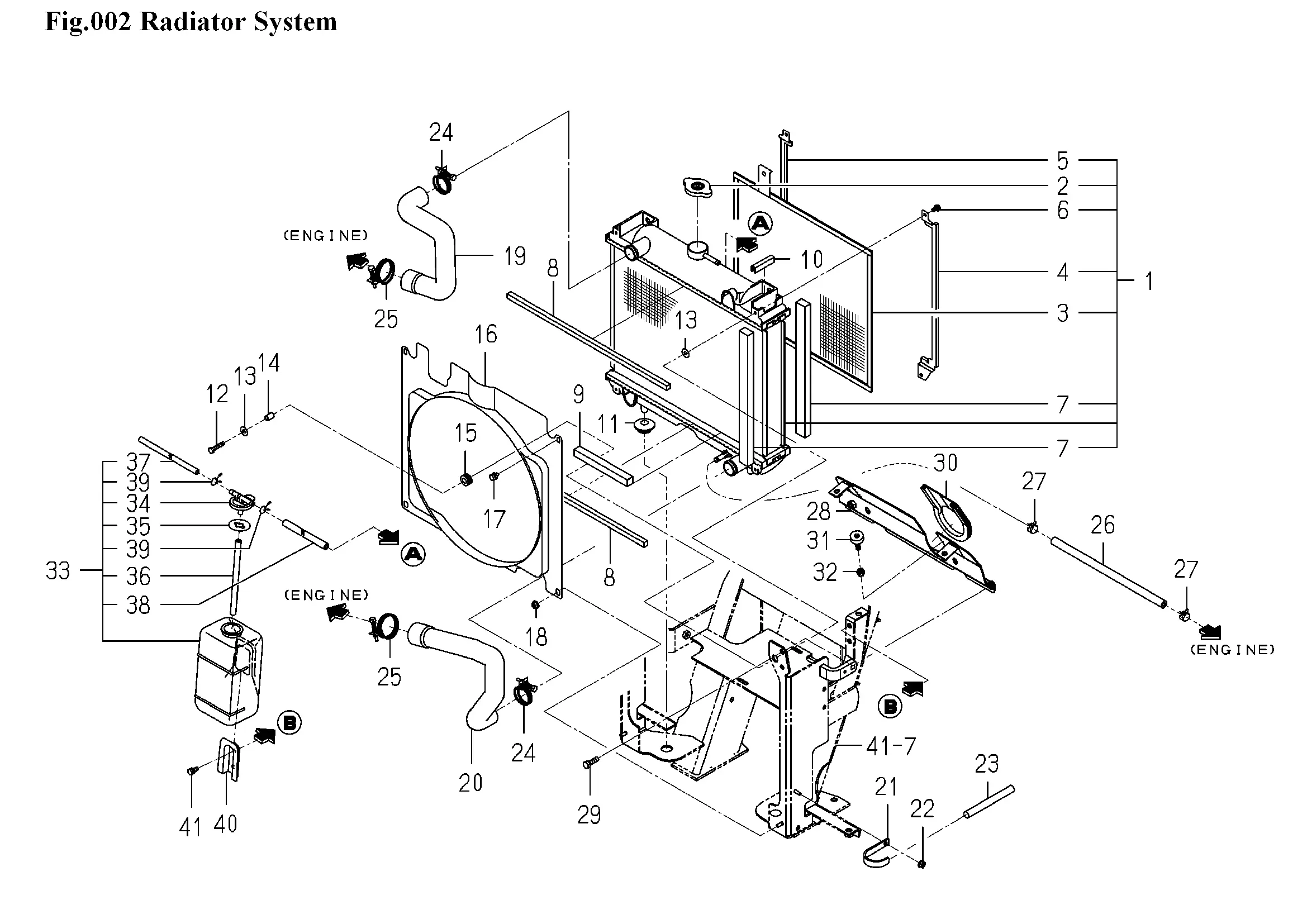

Kühler
Ersatzteile (41 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
SEAL/10X10X420
9
INSULATOR/15X15X140
10
PAD/50
11
BUSH,LEVER
12
FLANGEBOLT/M6X30
13
WASHER
14
COLLAR
15
GROMMET
16
SHROUD
17
V210-360-601-20
18
NUT/WASHER/M6
19
HOSE/RADIATOR/UPPER
20
HOSE/RADIATOR/LOWER
21
1725-102-072-00
22
NUT/WASHER/M6
23
TUBE/120
24
J061-230-038-00
25
CLAMP/WIRE/36-44
26
HOSE/290
27
CLIP/HOSE/14.7-15.9
28
1739-102-710-10
29
V231-360-802-00
30
1725-102-071-00
31
1421-602-005-10
32
NUT/M8
33
RESERVETANK ASSY
34
CAP
35
PACKING
36
HOSE/RUBBER
37
PIPE
38
1705-102-252-20
39
CLAMP
40
Halter
41
FLANGEBOLT/M6X12
