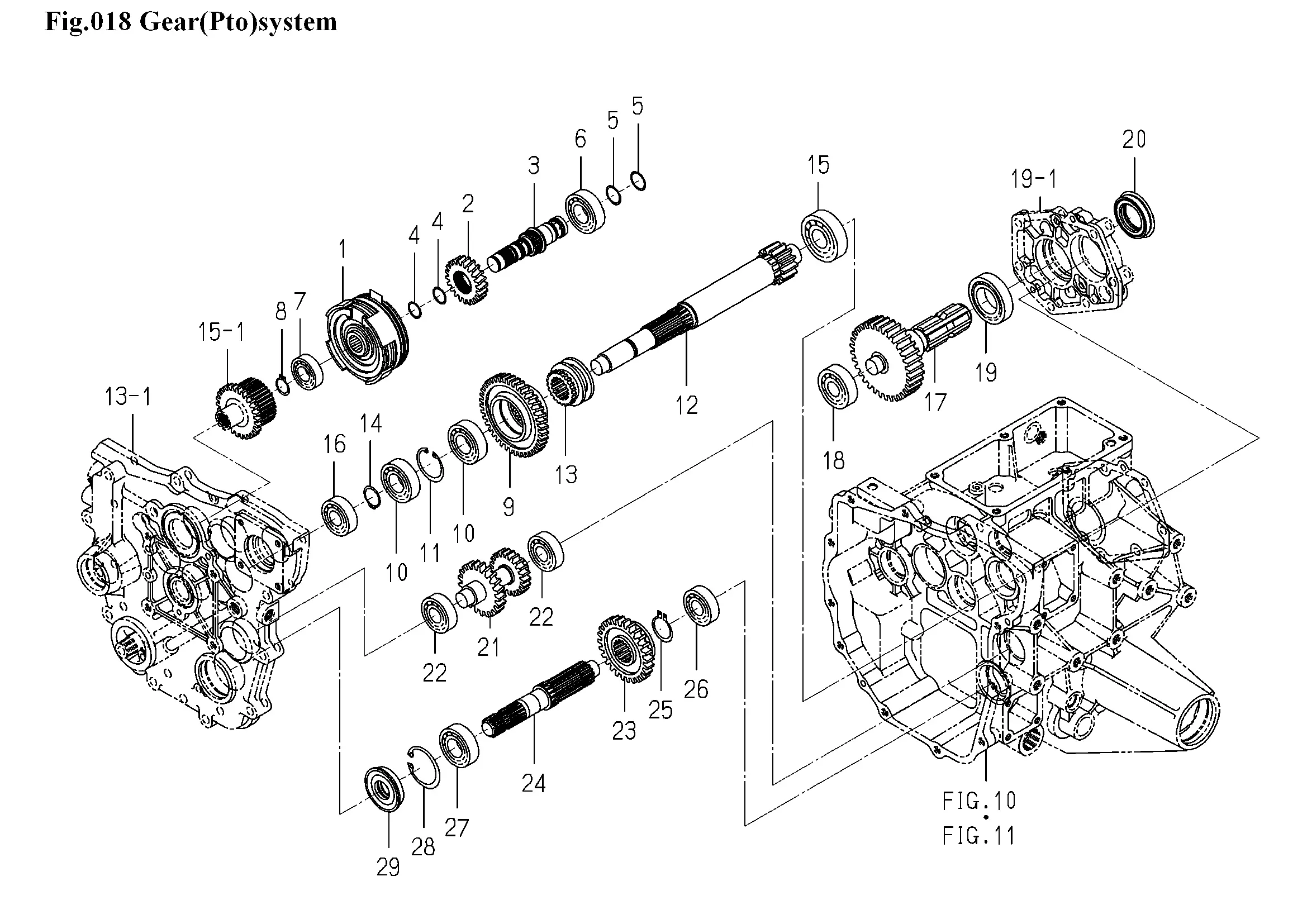

Getriebe, PTO
Ersatzteile (29 Teile)
1
1725-219-210-20
2
GEAR/HELICAL/21
3
SHAFT/PTO COMP
4
RING/22
5
RING/25
6
BEARING,RB/6205
7
1725-219-013-00
8
RING,SNAP/20 C
9
GEAR/HELICAL/40
10
BEARING/BALL
11
RING,SNAP/52 C
12
GEAR/SPUR/13
13
SLEEVE/PTO
14
RING/SNAP/CS25
15
1594-218-001-00
16
V600-110-620-40
17
GEAR/SPUR/32
18
BEARING/BALL
19
BEARING/BALL
20
SEAL/OIL
21
GEAR/21-21
22
V600-110-620-40
23
GEAR/SPUR/26
24
SHAFT/PTO/MID
25
RING,SNAP/30 C
26
V600-110-620-40
27
BEARING,RB/6205
28
RING,SNAP/52 C
29
SEAL/OIL
