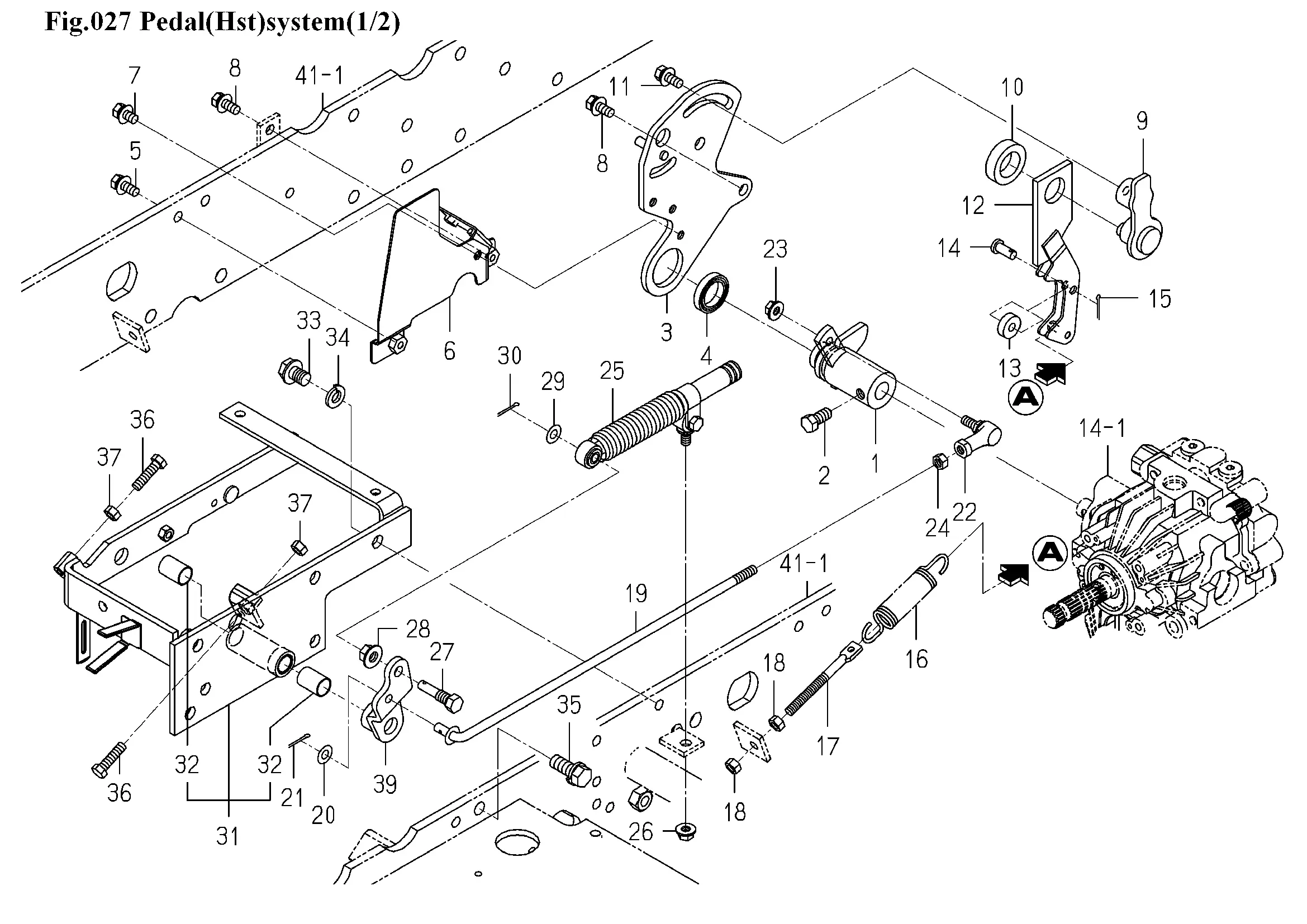

Pedal HST
Ersatzteile (59 Teile)
1
1725-273-440-00
2
BOLT/SM/M10X23
3
1725-273-370-10
4
BEARING/BALL
5
V211-660-802-00
6
1739-272-860-00
7
BOLT,SP/M8X16
8
BOLT,SP/M8X20
9
LEVER/ADJUST COMP
10
COLLAR/25X40X11
11
1725-103-004-00
12
ARM/NEUTRAL COMP
13
BEARING/BALL
14
Bolzen 8x19
15
PIN,SPLIT/2.5X20
16
SPRING/HE108
17
Spannstange
18
NUT/M8
19
ROD/HST/376 COMP
20
WASHER,PL/M8
21
PIN,SPLIT/2.5X20
22
1560-695-021-00
23
Kombimutter-M8
24
NUT/M8
25
DAMPER/OIL ASSY
26
Kombimutter-M8
27
PIN/08X46
28
NUT/WASHER/M10
29
WASHER,PL/M8
30
PIN,SPLIT/2.5X20
31
BASE/LINK/F3 ASSY
32
1656-664-221-10
33
BOLT/M12X20/7T
34
WASHER,SP/M12
35
BOLT/S
36
V201-360-803-00
37
NUT/M8
38
ARM/HST COMP
39
ARM COMP
40
PIN/GROOVE
41
PLATE/I/16X56
42
PLATE/I/16X107
43
WASHER,PL/M8
44
PIN,SPLIT/2.5X20
45
PLATE/IR/25X95
46
V231-360-802-00
47
ARM/PEDAL/F ASSY
48
1656-664-221-10
49
NIPPLE,GREASE
50
V401-160-006-00
51
PEDAL/HST/F COMP
52
PAD/HST/R
53
V211-660-801-60
54
ARM/PEDAL/R COMP
55
HUB/PEDAL/R COMP
56
PIN/GROOVE
57
PEDAL/HST/R COMP
58
PAD/HST/R
59
V211-660-801-60
