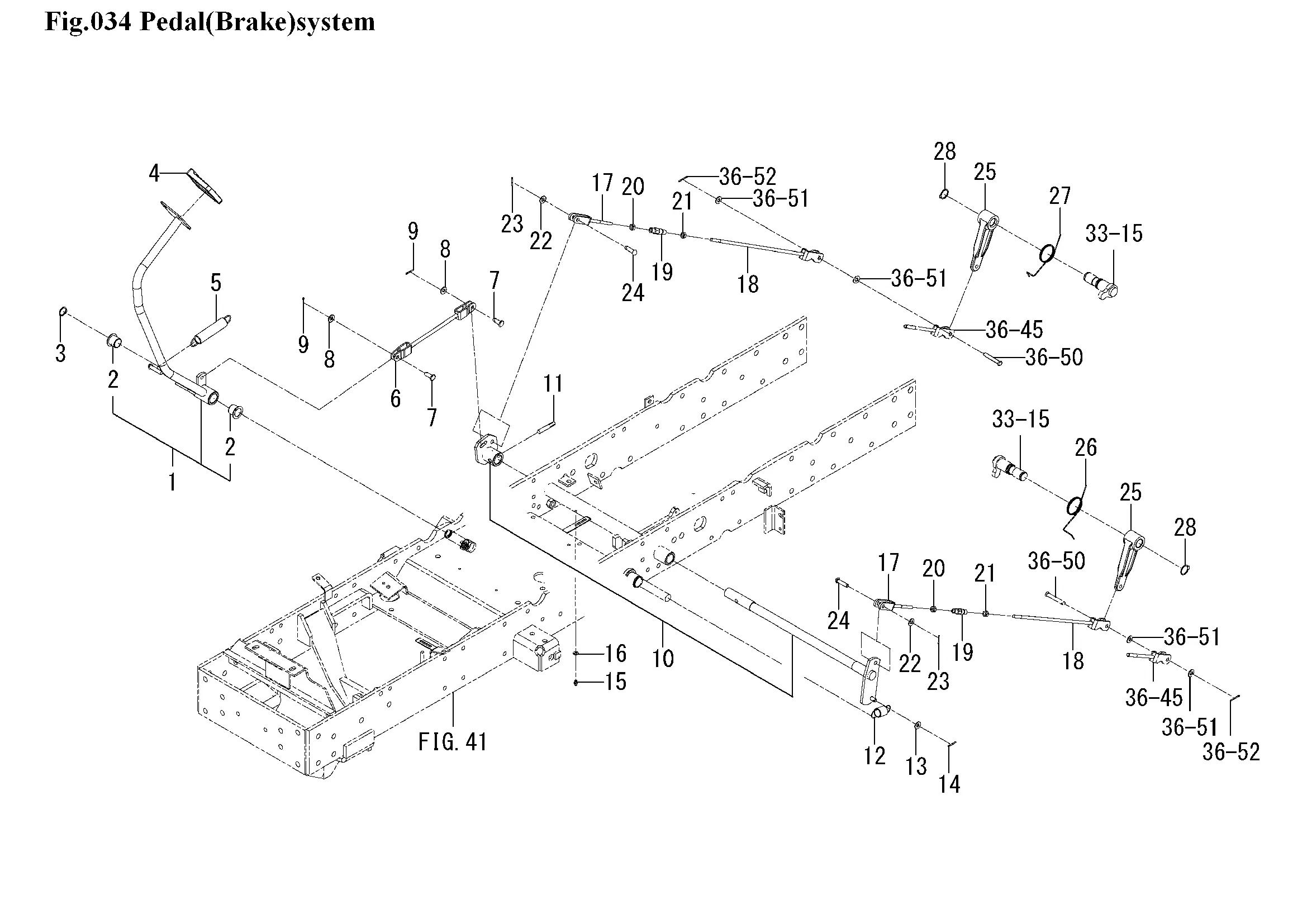

Pedal, Bremse
Ersatzteile (28 Teile)
1
PEDAL/BRAKE ASSY
2
BUSH/20X23X20
3
RING,SNAP/20 C
4
PAD
5
SPRING/HE126
6
FORK COMP
7
PIN
8
WASHER,PL/M8
9
PIN,SPLIT/2.5X20
10
1739-312-710-20
11
PIN,TAPER/8X50
12
SPRING
13
WASHER,PL/M8
14
PIN,SPLIT/2.5X20
15
NIPPLE,GREASE
16
V401-160-006-00
17
ROD/132 COMP
18
ROD/380/LH COMP
19
TURNBUCKLE/M8
20
NUT/M8
21
NUT/LH/M08
22
WASHER,PL/M8
23
PIN,SPLIT/2.5X20
24
PIN/08X26
25
ARM/BRAKE
26
SPRING/HT042/LH
27
SPRING/HT042/RH
28
RING,SNAP/22 C
