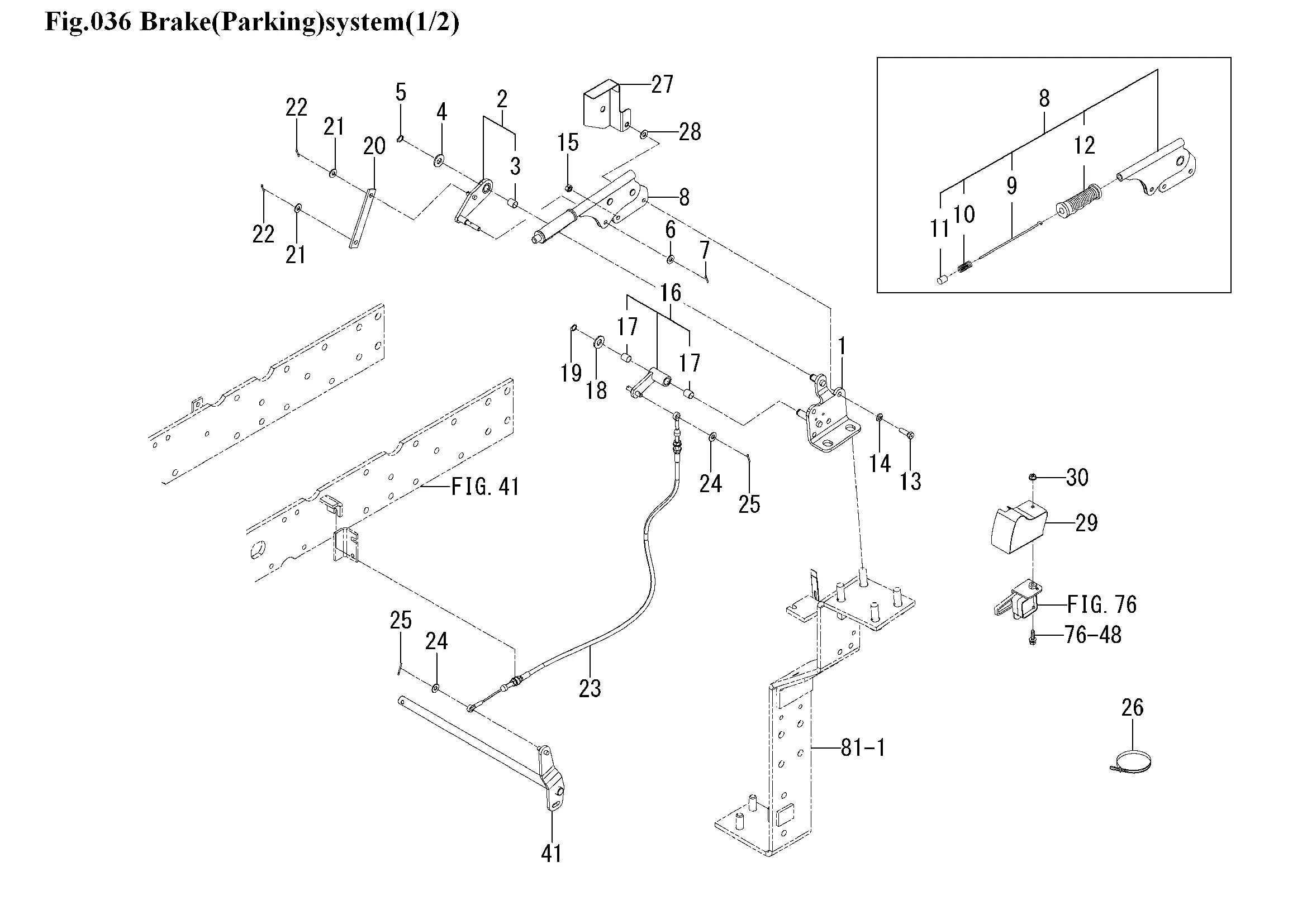

Festellbremse
Ersatzteile (52 Teile)
1
1739-314-720-20
2
ARM/PARKING/A ASSY
3
BUSH/12X14X15
4
V411-260-012-00
5
RING,SNAP/12 C
6
WASHER,PL/M8
7
PIN,SPLIT/2.5X15
8
1740-313-300-10
9
ROD
10
SPRING
11
BUTTON
12
GRIP/ORANGE
13
V201-260-802-50
14
WASHER,SP/M8
15
Kombimutter-M8
16
1739-314-920-10
17
BUSH/12X14X15
18
V411-260-012-00
19
RING,SNAP/12 C
20
1739-314-082-00
21
WASHER,PL/M8
22
PIN,SPLIT/2.5X15
23
CABLE/PARKING ASSY
24
WASHER,PL/M8
25
PIN,SPLIT/2.5X20
26
1342-402-006-00
27
1739-314-740-10
28
WASHER,PL/M8
29
1739-314-750-20
30
NUT/WASHER/M6
31
1739-314-810-00
32
3640-111-001-10
33
V762-150-000-00
34
V401-160-006-00
35
FLANGEBOLT/M12X16
36
1739-314-840-00
37
3640-111-001-10
38
NIPPLE,GREASE
39
V401-160-006-00
40
FLANGEBOLT/M12X16
41
1739-314-830-00
42
1739-314-860-00
43
PIN/GROOVE
44
ROD/104 COMP
45
ROD/160/LH COMP
46
TURNBUCKLE/M8
47
NUT/M8
48
NUT/LH/M08
49
PIN/08X26
50
1110-241-001-10
51
WASHER,PL/M8
52
PIN,SPLIT/2.5X20
