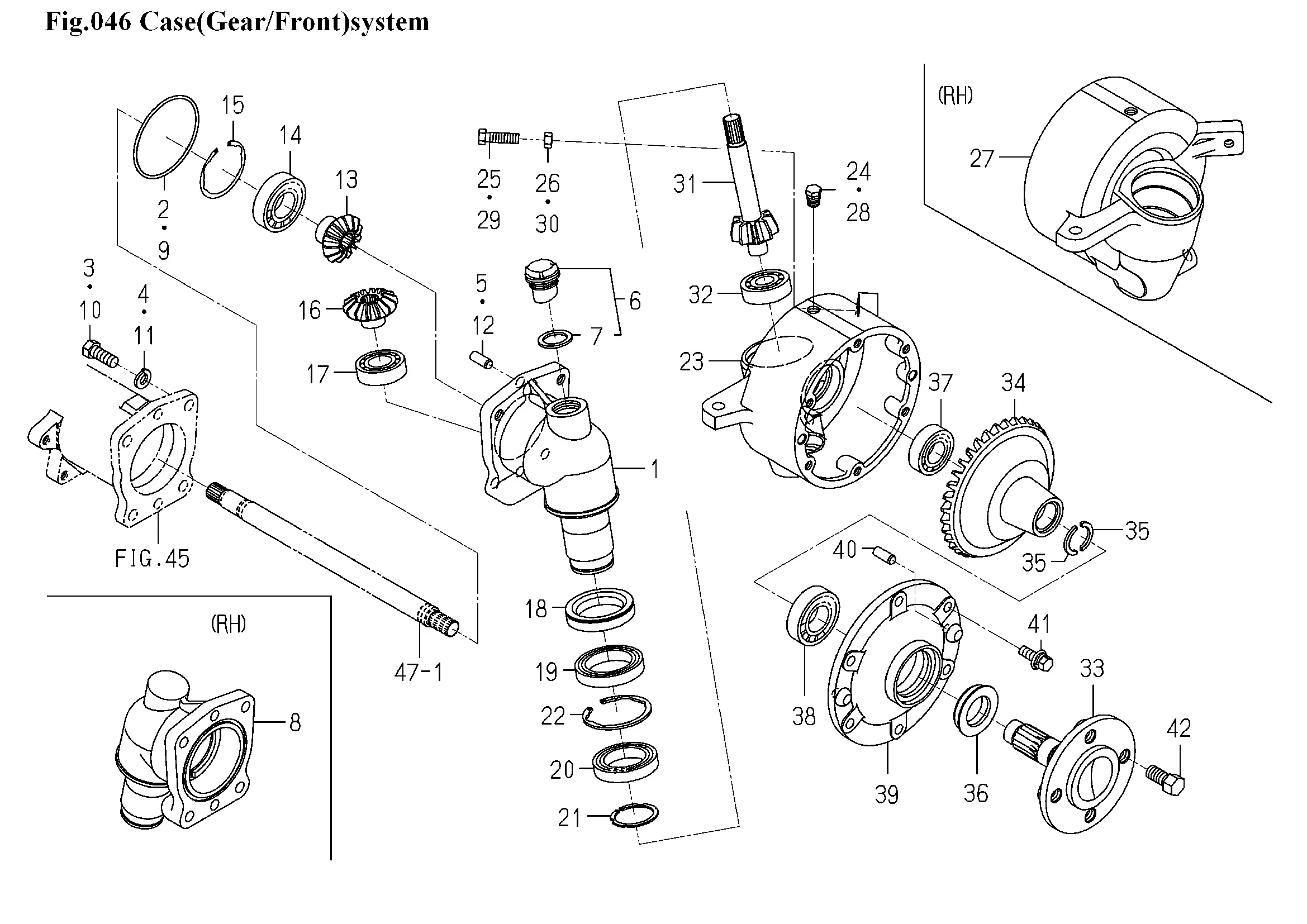

Achsschenkel, vorne
Ersatzteile (42 Teile)
1
1725-434-001-10
2
O-RING/1A,G90
3
BOLT/M12X30/7T
4
WASHER,SP/M12
5
PIN,ST,B/10X24
6
CAP,OIL
7
PACKING
8
1725-434-002-10
9
O-RING/1A,G90
10
BOLT/M12X30/7T
11
WASHER,SP/M12
12
PIN,ST,B/10X24
13
1725-434-003-10
14
BEARING/BALL
15
RING,SNAP/R62
16
1725-434-004-10
17
BEARING,RB/6205
18
SEAL/OIL ASSY
19
BEARING,RB/6910
20
BEARING/BALL/6909
21
V706-140-045-00
22
V707-140-068-00
23
CASE/FINAL/LH
24
PLUG/SCREW/SEAL
25
V201-361-003-50
26
V304-460-010-00
27
CASE/FINAL/RH
28
PLUG/SCREW/SEAL
29
V201-361-003-50
30
V304-460-010-00
31
1725-434-008-10
32
BEARING/BALL
33
SHAFT/WHEEL
34
1725-434-011-10
35
WASHER/27X36X03
36
SEAL/OIL ASSY
37
BEARING,RB/6205
38
BEARING/BALL
39
1725-434-054-10
40
PIN,ST,B/10X24
41
BOLT,SP/M10X30/7T
42
1725-434-015-30
