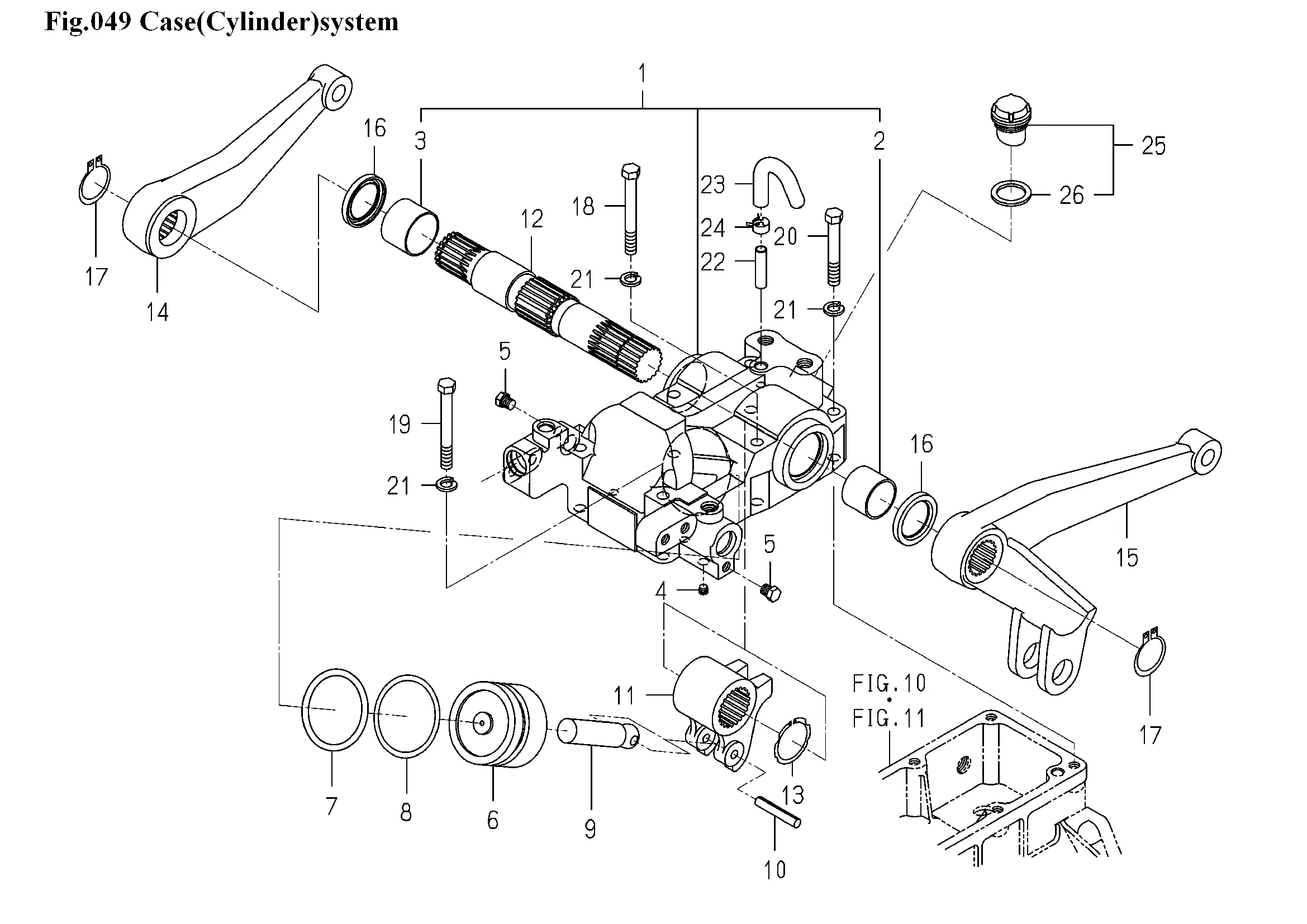

Zylinder, Hubarme Heckhydraulik
Ersatzteile (26 Teile)
1
1725-501-200-50
2
BUSH/35X39X30
3
BUSH/40X43X30
4
PLUG/SCREW
5
PLUG/SCREW/SEAL
6
PISTON
7
O-RING/1B,P65
8
RING,BACK UP
9
ROD
10
V580-140-805-00
11
CRANK/LIFT
12
1725-501-071-00
13
RING,SNAP/S40
14
ARM/LIFT/LH
15
1725-501-107-00
16
SEAL,OIL/VC35506
17
RING,SNAP/35 C
18
V201-361-008-50
19
BOLT/M10X85/7T,SEAL
20
V201-361-007-00
21
WASHER,SP/M10
22
PIPE,BREATHER
23
1716-501-006-10
24
J062-138-148-00
25
CAP,OIL
26
PACKING
