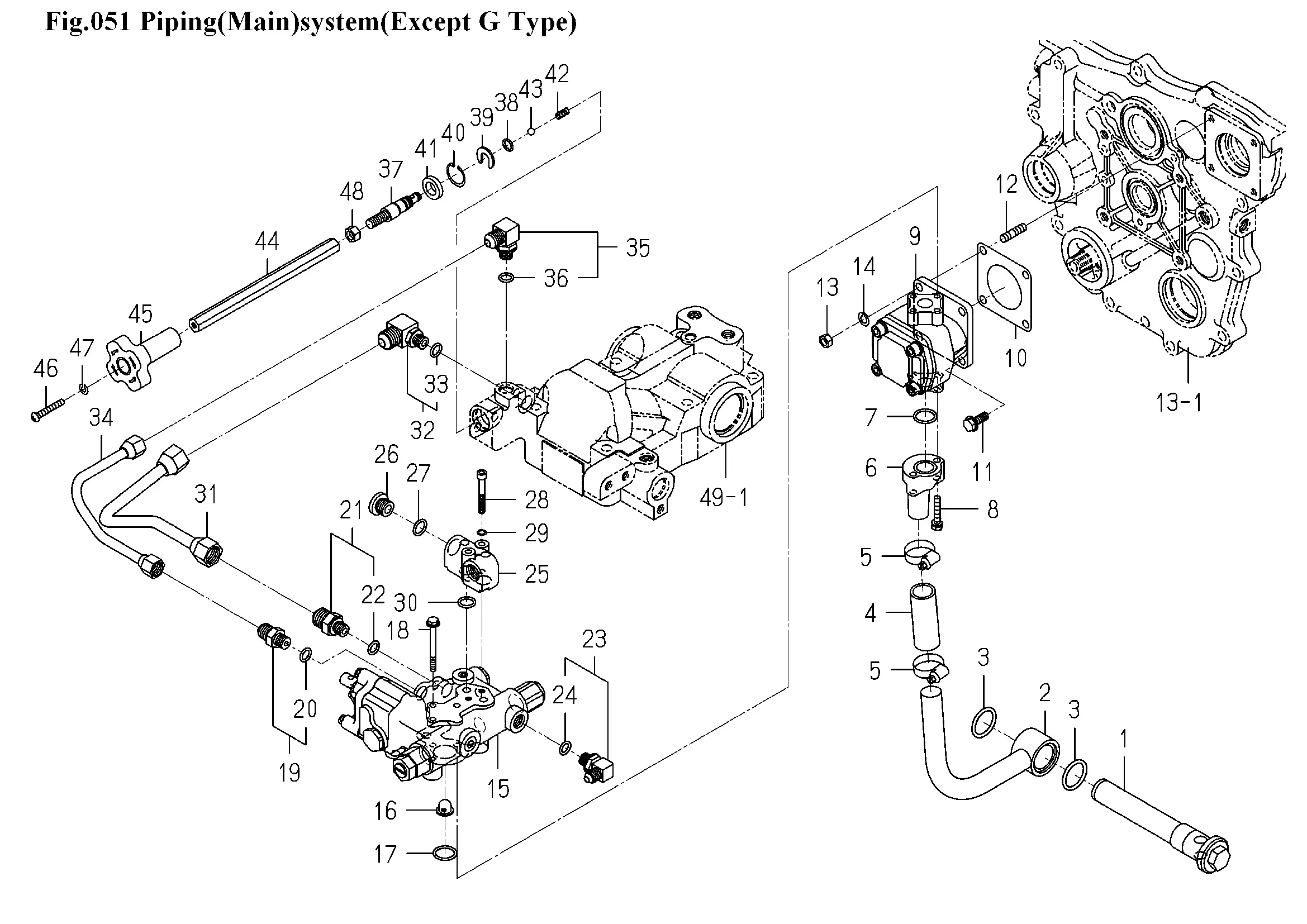

Hydraulikpumpe, -Steuerventil
Ersatzteile (48 Teile)
1
1738-508-210-10
2
1725-508-760-10
3
O-RING/1B,P28
4
1739-508-081-00
5
J061-120-032-00
6
1725-508-012-00
7
O-RING/1B,P20
8
FLANGEBOLT/M6X35
9
1725-508-320-10
10
PACKING,OIL PUMP
11
V231-360-802-00
12
STUD/M8X20
13
NUT/M8
14
WASHER,SP/M8
15
VALVE/CONTROL/101
16
FILTER/LINE/12X18X15
17
O-RING/1B,P20
18
V230-360-606-00
19
ADAPTER/PF1/4 ASSY
20
O-RING/1B,P11
21
1725-508-330-00
22
O-RING/1B,P11
23
ADAPTER/L/G1/4 ASSY
24
O-RING/1B,P11
25
1725-508-016-00
26
PLUG(G3/8)
27
O-RING/1B,P14
28
SCREW/SOCKET
29
WASHER/07X10X01
30
O-RING/1B,P12
31
PIPE/RETURN COMP
32
ADAPTER/L/G1/4 ASSY
33
O-RING/1B,P18
34
PIPE/MAIN COMP
35
ADAPTER/L/PF1/4 ASSY
36
O-RING/1B,P11
37
SHAFT/SLOWRETURN
38
O-RING/1B,P10
39
PLATE/STOPPER
40
RING,SNAP/25 C
41
SEAL/DUST
42
SPRING/HC015
43
BALL,STEEL
44
1599-507-003-10
45
KNOB
46
SCREW/M6X40
47
V401-160-006-00
48
NUT/M10
