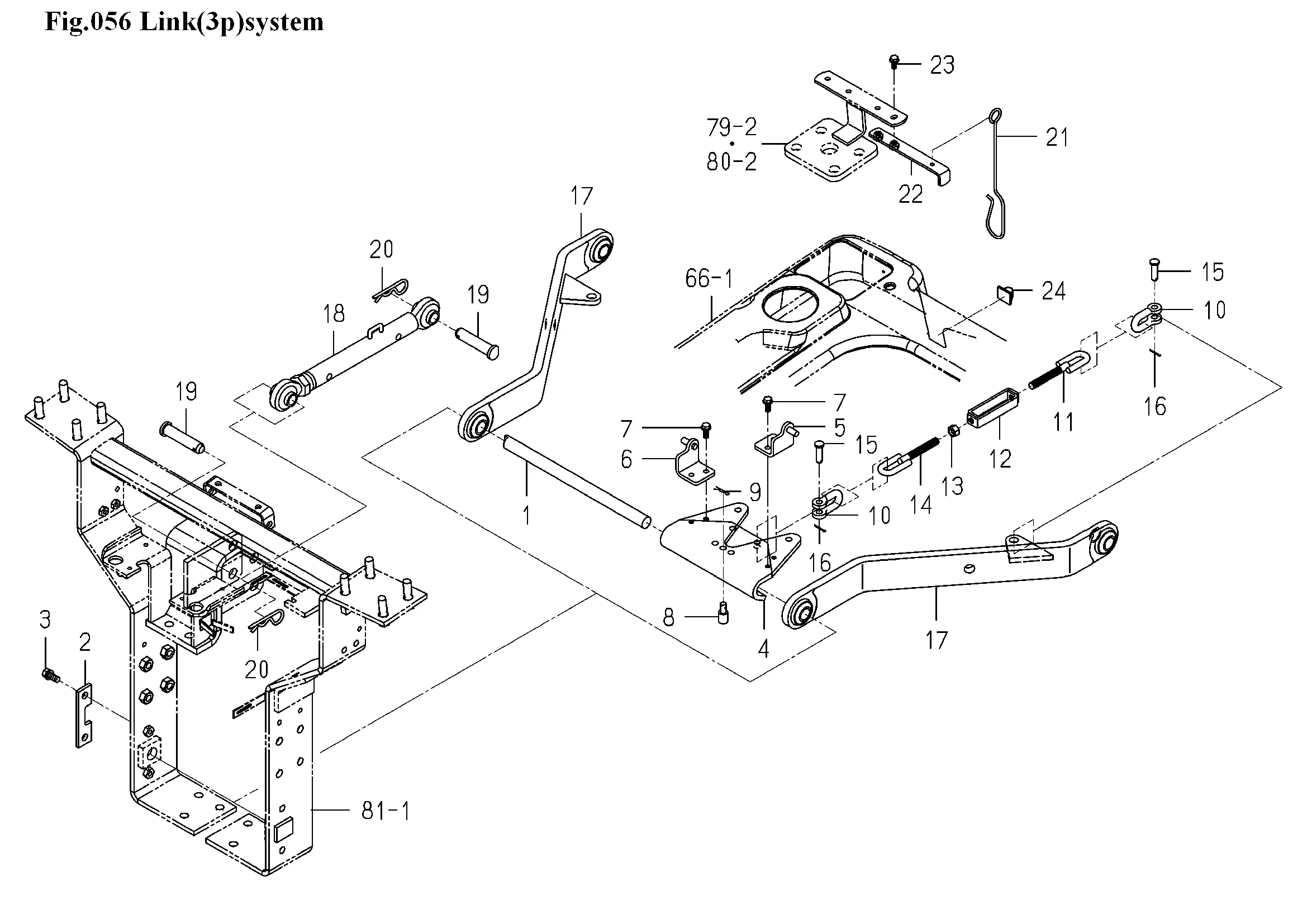

Heck-3-Punkt-Aufnahme
Ersatzteile (24 Teile)
1
ROD/22X353
2
PLATE/STOPPER
3
BOLT,S/M10X25/7T
4
1739-514-001-00
5
PLATE/LH COMP
6
PLATE/RH COMP
7
FLANGEBOLT/M8X16
8
PIN/STOPPER
9
PIN/SNAP
10
1725-514-008-00
11
CHAIN/CHECK/LH COMP
12
1725-514-680-00
13
NUT
14
CHAIN/CHECK/RH COMP
15
PIN/10X32
16
PIN,SPLIT/2.5X20
17
1725-514-650-00
18
LINK/TOP ASSY
19
PIN/19X86
20
PIN,HAIR (19) *
21
HOOK/TOP-LINK
22
1739-514-710-00
23
FLANGEBOLT/M8X16
24
1650-652-014-00
