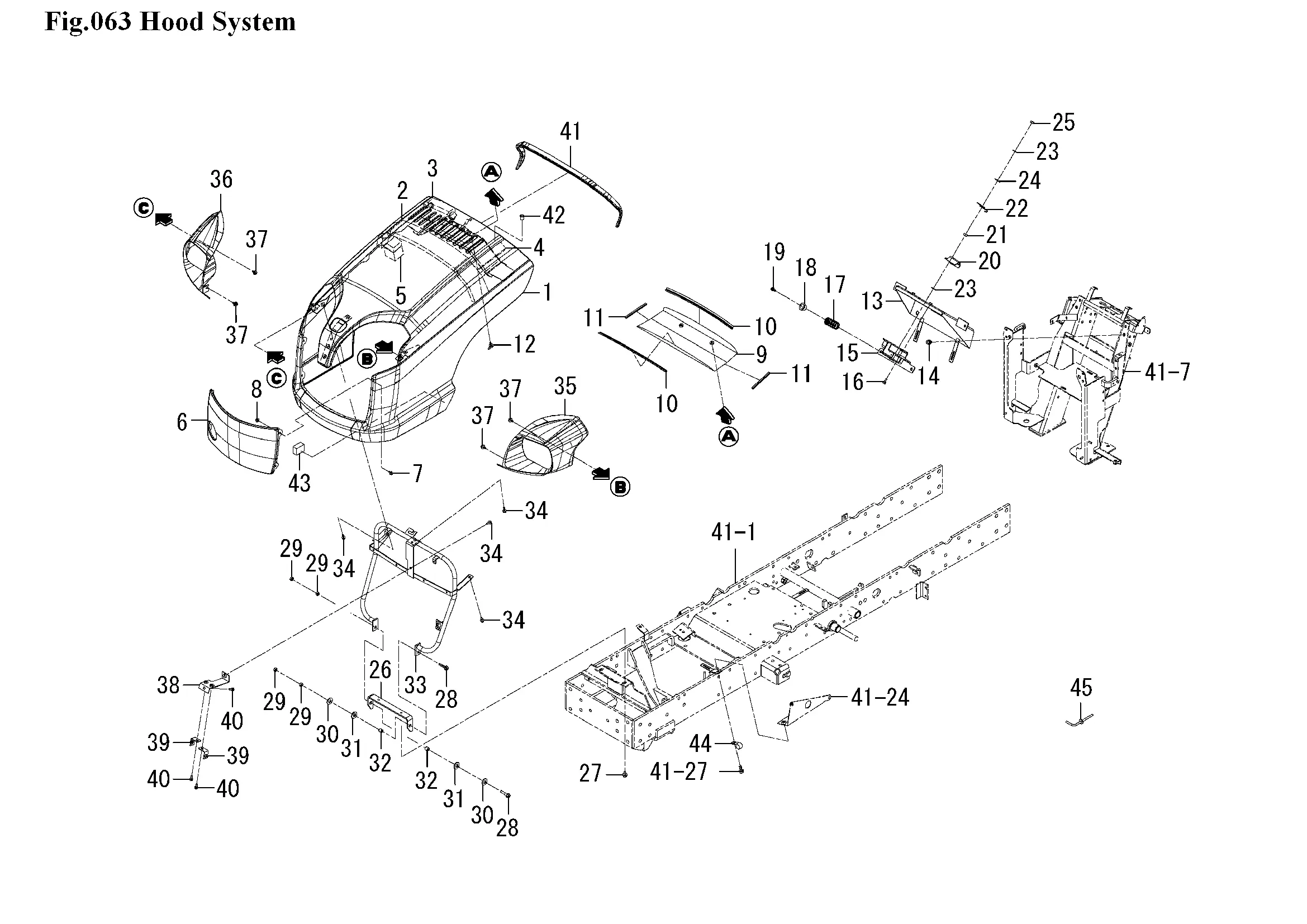

Motorhaube
Ersatzteile (45 Teile)
1
HOOD/F3 COMP
2
SEAL/70X20X640
3
SEAL/30X20X150
4
SEAL/30X20X150
5
SEAL/45X50X80
6
1739-601-071-10
7
V210-360-601-20
8
NUT/WASHER/M6
9
1725-601-720-20
10
TRIM/1X6X360
11
RUBBER,HOOK
12
V273-360-601-50
13
1739-601-880-00
14
V211-660-802-00
15
BRACKET/STOPPER COMP
16
BOLT,SP/M6X16
17
SPRING/HC053
18
BUSH/19X30X14
19
SCREW,SP/M6X16
20
1739-601-850-30
21
7825-601-004-00
22
3673-641-004-00
23
WASHER,PL/M8
24
V411-260-010-00
25
1719-312-001-00
26
HINGE/HOOD
27
V211-660-802-00
28
V231-360-803-50
29
NUT/M8
30
V411-260-012-00
31
WASHER/12X26X04
32
COLLAR/08X12X10
33
STAY/LAMP COMP
34
BOLT,SP/M6X16
35
1739-601-073-20
36
1739-601-074-20
37
BOLT/M6X14/16
38
1739-601-750-10
39
PLATE COMP
40
BOLT,SP/M6X16
41
INSULATOR
42
1738-626-208-00
43
1739-601-077-00
44
1675-508-003-00
45
TOOL/HOOD COMP
