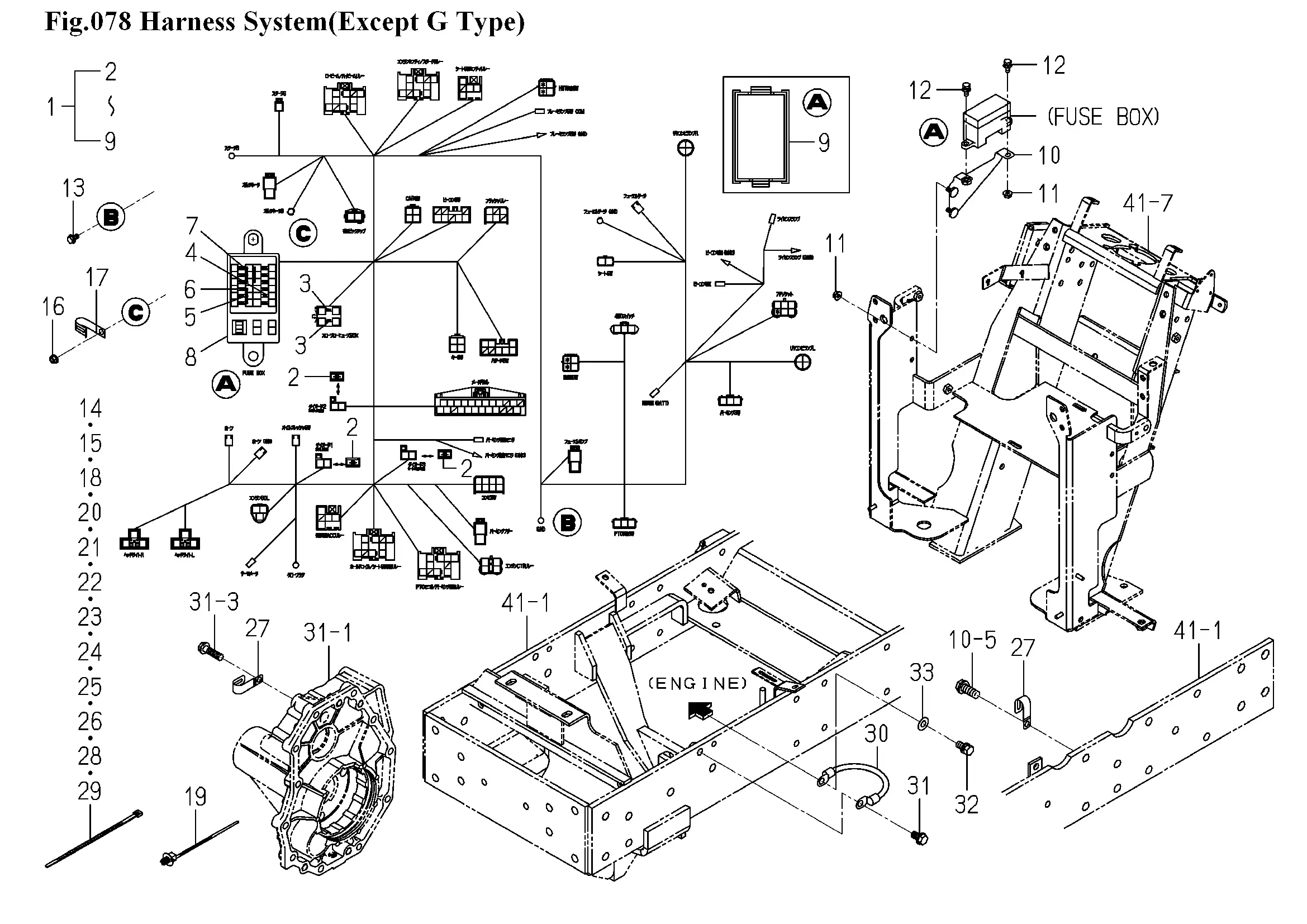

Kabelbaum
Ersatzteile (33 Teile)
1
HARNESS/MAIN/F3 ASSY
2
DIODE
3
FUSE/SLOW BLOW/40A
4
FUSE/BLADE/32V05A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V15A
7
FUSE/BLADE/32V20A
8
TOOL/FUSE
9
COVER/FUSEBOX
10
BRACKET/FUSE COMP
11
NUT/WASHER/M6
12
BOLT,SP/M6X16
13
FLANGEBOLT/M6X12
14
BAND,WIRE/140
15
BAND,WIRE/140
16
NUT/FLANGE/M6
17
HOLDER/JE/9-9
18
1342-402-006-00
19
1725-690-071-00
20
BAND,WIRE/140
21
BAND,WIRE/140
22
BAND,WIRE/140
23
BAND,WIRE/140
24
BAND,WIRE/140
25
BAND,WIRE/140
26
1342-402-006-00
27
CLAMP,HARNESS
28
BAND,WIRE/140
29
BAND,WIRE/140
30
WIRE,LEAD
31
V231-361-002-00
32
BOLT,SEMS/M10X20,7T
33
V411-260-010-00
