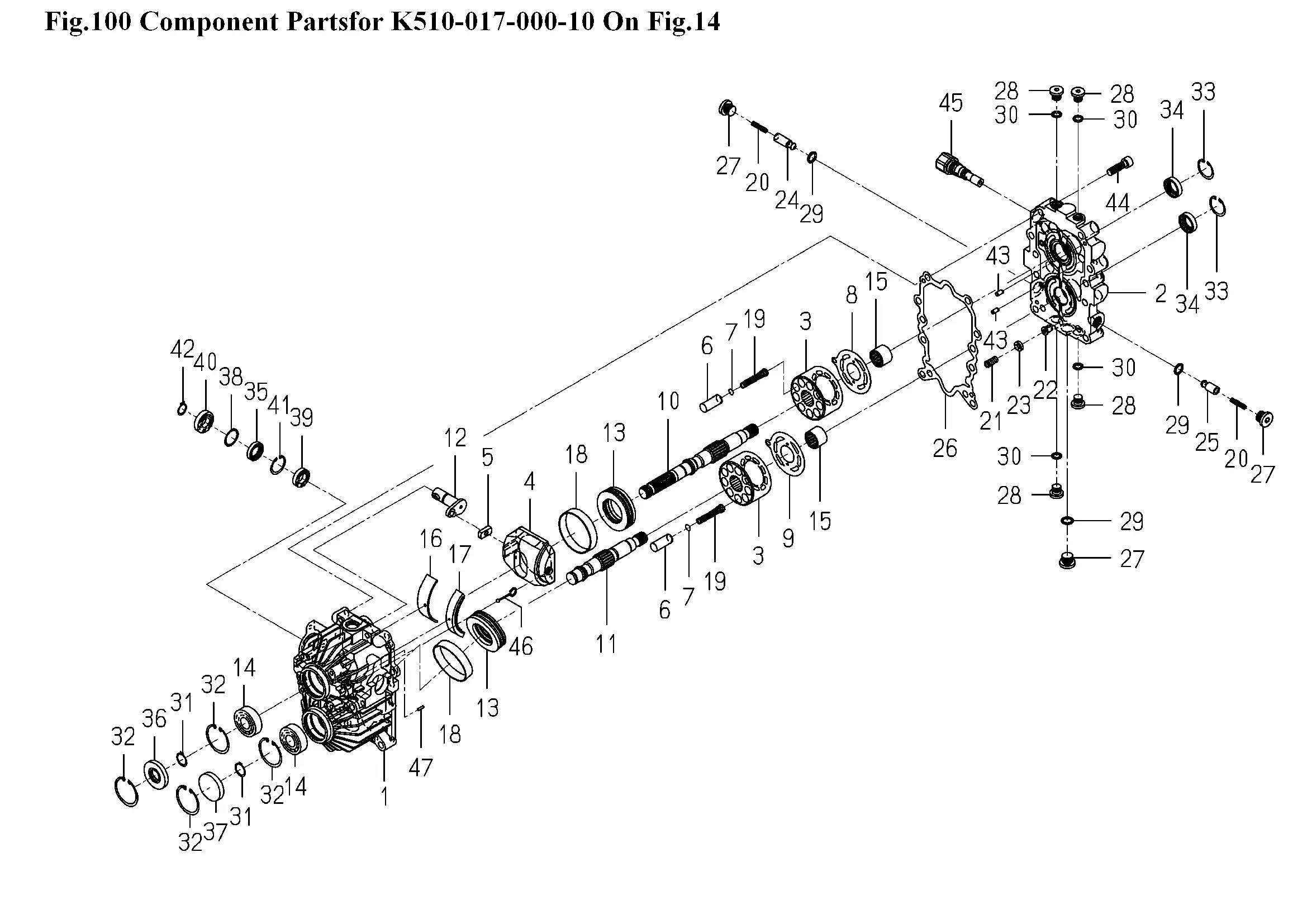

Einzelteile Hydrostat K510-017-000-10
Ersatzteile (47 Teile)
1
K510-017-001-00
2
K510-017-004-10
3
K510-005-005-00
4
K510-017-006-00
5
K510-001-007-00
6
K510-006-008-00
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
K510-017-012-00
11
K510-001-013-20
12
K510-017-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BEARING/NEEDLE
18
BUSH/68X71X14
19
SPRING/HC053
20
SPRING/HC030
21
SPRING/HC021
22
K510-003-022-00
23
K510-003-037-00
24
POPPET/CHECK/0.5
25
K510-001-024-00
26
GASKET
27
PLUG(G3/8)
28
PLUG(PF1/4)
29
O-RING/1B,P14
30
O-RING/1B,P11
31
RING,SNAP/20 C
32
RING,SNAP/47 C
33
RING,SNAP/32 C
34
OIL SEAL
35
SEAL/OIL
36
SEAL,OIL/TC20477
37
SEAL/47
38
WASHER/25X30X1
39
K510-017-047-00
40
K510-017-048-00
41
RING,SNAP/30 C
42
RING,SNAP/17 C
43
K510-001-036-00
44
V220-541-003-50
45
K510-001-100-00
46
K510-003-500-00
47
V523-100-301-00
