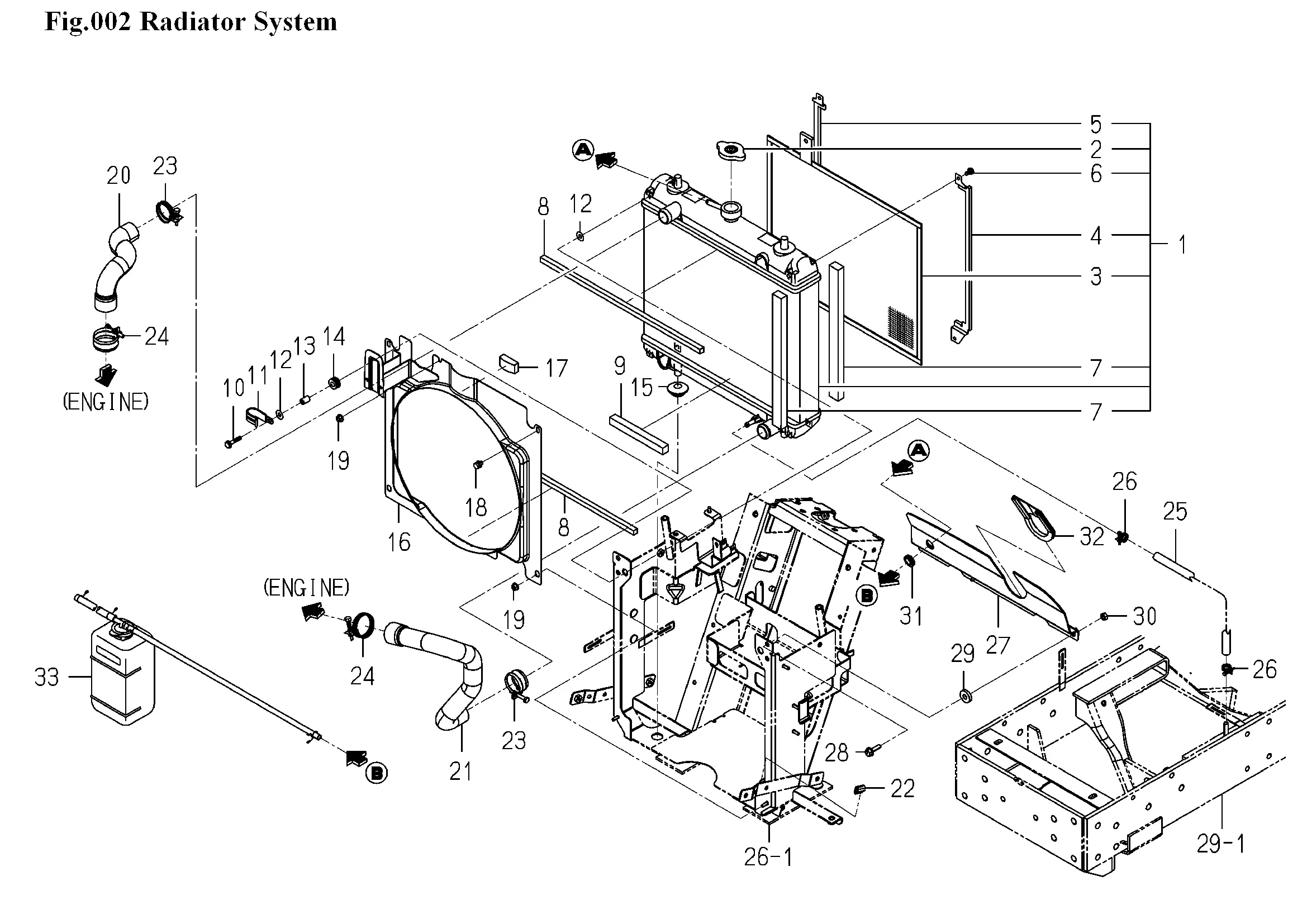

Kühler
Ersatzteile (33 Teile)
1
RADIATOR/390X30 ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1836-102-001-00
9
1836-102-002-00
10
FLANGEBOLT/M6X30
11
3737-172-009-00
12
1836-102-003-00
13
1836-102-041-00
14
1836-102-004-00
15
BUSH,LEVER
16
1836-102-420-00
17
1836-102-007-00
18
V210-360-601-20
19
NUT/WASHER/M6
20
1836-102-033-00
21
1836-102-034-00
22
PAD/20
23
J061-230-038-00
24
CLAMP/WIRE/36-44
25
HOSE/290
26
CLIP/HOSE/14.7-15.9
27
1836-102-430-20
28
FLANGEBOLT/M8X25
29
CUSHION/RUBBER/10X25
30
NUT/M8
31
1836-102-006-00
32
1725-102-071-00
33
TANK/RESERVE ASSY
