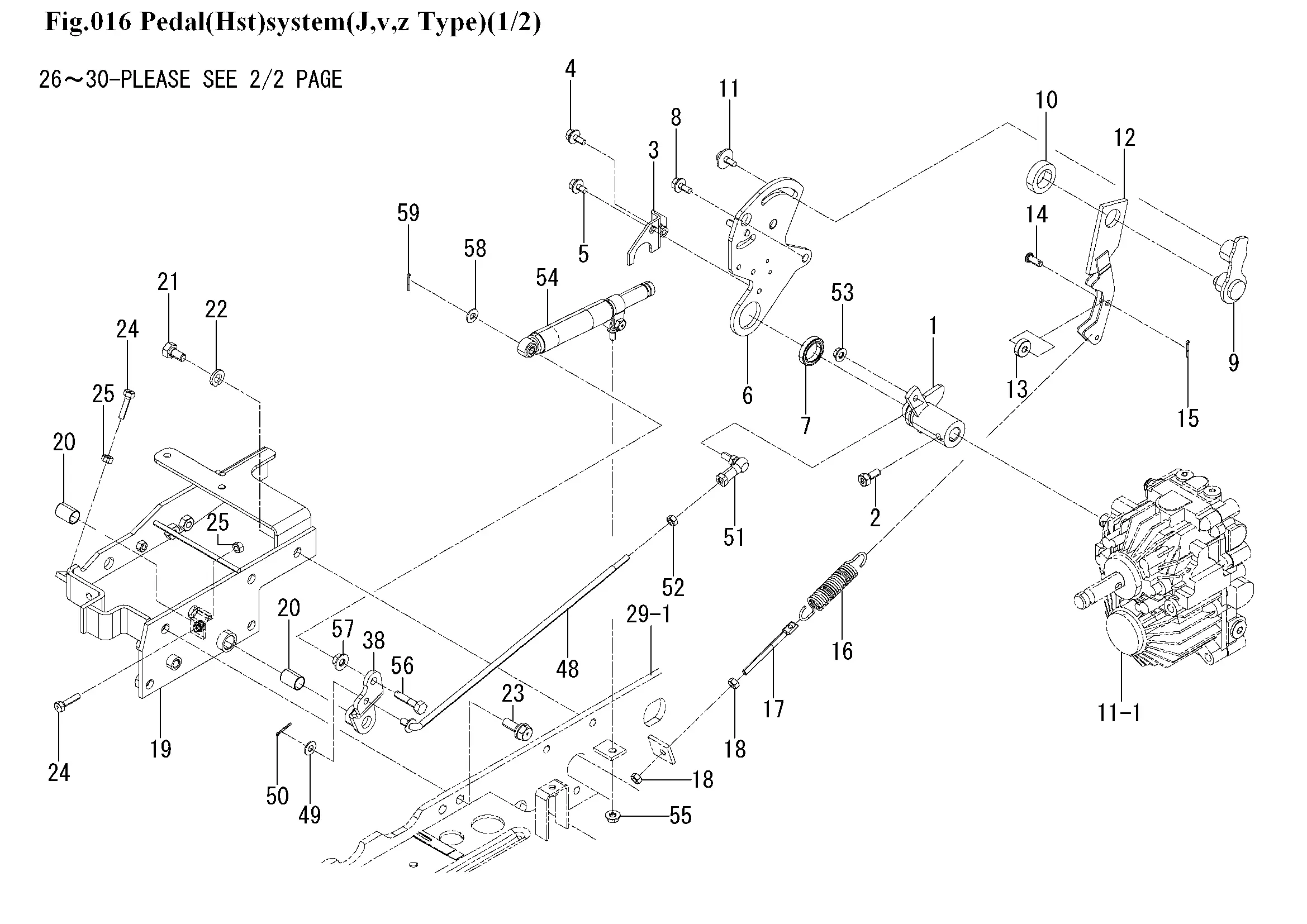

Pedal HST
Ersatzteile (62 Teile)
1
1836-272-240-00
2
1836-272-001-00
3
1836-272-550-00
4
BOLT,SP/M8X20
5
BOLT,SP/M8X16
6
1845-272-230-00
7
BEARING/BALL
8
V211-660-802-00
9
1836-272-580-20
10
1836-272-041-00
11
1725-103-004-00
12
1836-272-570-00
13
BEARING/BALL
14
1836-272-005-00
15
PIN,SPLIT/2.5X20
16
1836-272-045-00
17
1836-272-042-00
18
NUT/M8
19
1845-272-250-00
20
1656-664-221-10
21
J932-201-039-00
22
V402-160-012-00
23
1836-201-004-00
24
V201-360-803-00
25
NUT/M8
26
ARM/PEDAL/F COMP
27
1656-664-221-10
28
NIPPLE,GREASE
29
V401-160-006-00
30
PEDAL/HST COMP
31
PAD/HST/R/15
32
V211-660-801-60
33
ARM/PEDAL/REVERSE
34
1836-272-490-00
35
PIN/GROOVE
36
PEDAL/HST COMP
37
PAD/HST/R/15
38
V211-660-801-60
39
ARM/HST COMP
40
ARM COMP
41
PIN/GROOVE
42
1836-272-043-10
43
1836-272-047-10
44
WASHER,PL/M8
45
PIN,SPLIT/2.5X20
46
PLATE/IR/25X95
47
FLANGEBOLT/M8X16
48
ROD/HST/376 COMP
49
WASHER,PL/M8
50
PIN,SPLIT/2.5X20
51
1560-695-021-00
52
NUT/M8
53
Kombimutter-M8
54
DAMPER/OIL ASSY
55
Kombimutter-M8
56
PIN/08X46
57
NUT/WASHER/M10
58
WASHER,PL/M8
59
PIN,SPLIT/2.5X20
60
PLATE/LOCK
61
J932-210-012-00
62
NUT/WASHER/M6
