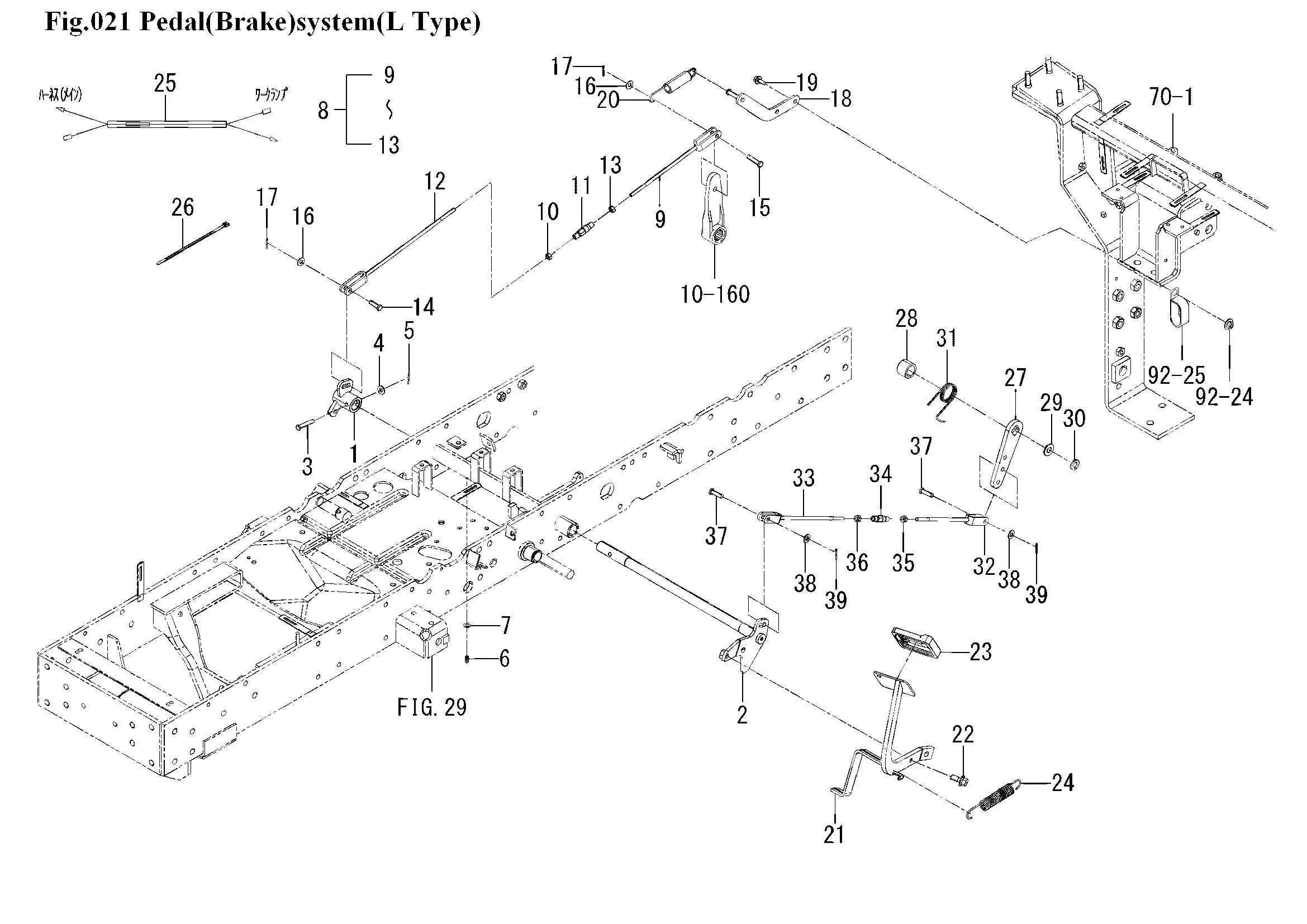

Pedal, Bremse
Ersatzteile (39 Teile)
1
1845-312-360-00
2
1845-312-350-20
3
1120-716-001-10
4
WASHER,PL/M8
5
PIN,SPLIT/2X20
6
NIPPLE,GREASE
7
V401-160-006-00
8
1836-312-430-20
9
1836-312-440-10
10
NUT/M8
11
1836-312-047-10
12
1836-312-450-10
13
1836-312-048-10
14
PIN/08X26
15
PIN/8X36
16
WASHER,PL/M8
17
PIN,SPLIT/2.5X20
18
1845-312-230-00
19
FLANGEBOLT/M8X16
20
SPRING/HE120
21
1845-312-410-00
22
BOLT,SP/M10X25/7T
23
PAD
24
SPRING/HE120
25
1836-660-043-00
26
BAND,WIRE/140
27
ARM/BRAKE
28
COLLAR/23X32X22
29
V411-260-012-00
30
WASHER,SP/M12
31
SPRING/HT037
32
1836-312-440-10
33
1845-312-310-10
34
1836-312-047-10
35
1836-312-048-10
36
NUT/M8
37
PIN/08X26
38
WASHER,PL/M8
39
PIN,SPLIT/2.5X20
