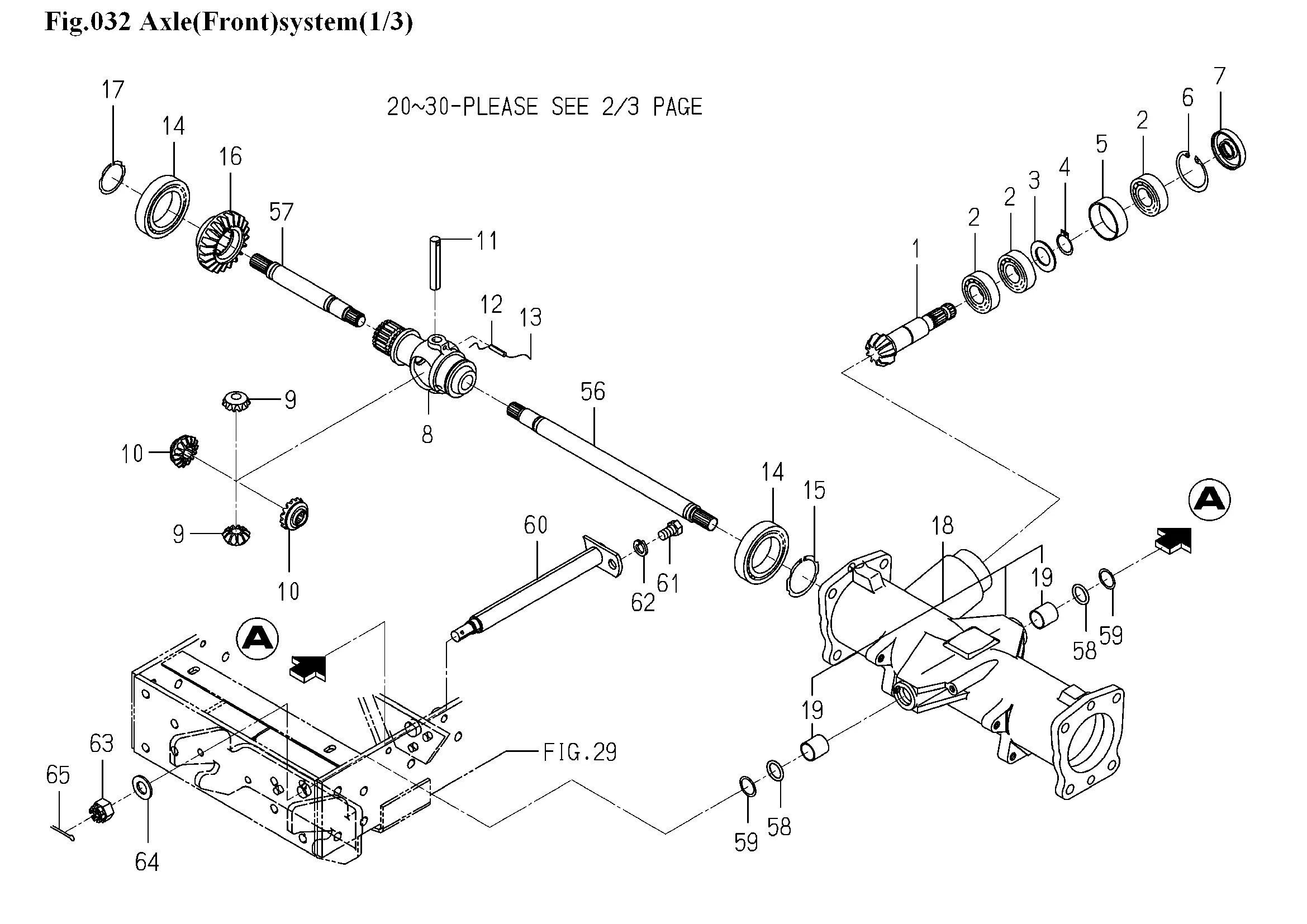

Teller-Kegelrad, Differenzial,Achsschenkel, vorne
Ersatzteile (69 Teile)
1
PINION/BEVEL/09
2
BEARING/BALL
3
WASHER/25X42X02
4
1725-218-109-00
5
COLLAR/48X52X17
6
1725-219-121-00
7
1776-432-003-00
8
CASE/DIFFERENTIAL/FR
9
PINION/BEVEL/11
10
GEAR/BEVEL/15
11
1725-432-714-00
12
1725-432-715-00
14
1725-432-801-00
15
1725-432-113-00
16
GEAR/BEVEL/21
17
1725-432-114-00
18
1725-433-810-20
19
BUSH/22X25X25
20
CASE/FINAL/UPPER/LH
21
1725-434-114-00
22
1725-434-115-00
23
PIN/B
24
CASE/FINAL/UPPER/RH
25
1725-434-114-00
26
1725-434-115-00
27
PIN/B
28
1725-434-102-00
29
1725-434-116-00
30
1725-308-103-00
31
1725-434-103-00
32
1725-201-806-00
33
SEAL/OIL ASSY
34
BEARING/BALL/6909
35
R.B.B/6908/KOYO
36
1725-432-114-00
37
1725-308-103-00
38
1725-434-104-00
39
PLUG/SCREW/R1/4
40
1725-219-121-00
41
PLUG/52X10
42
1725-434-112-00
43
PLUG/SCREW/R1/4
44
1725-219-121-00
45
PLUG/52X10
46
1725-434-113-00
47
BEARING/6304/KBC
48
SHAFT/WHEEL
49
GEAR/BEVEL/35
50
WASHER/27X36X03
51
SEAL/OIL ASSY
52
1725-201-806-00
53
1725-434-116-00
54
COVER/WHEEL
55
1725-434-124-00
56
1725-435-101-00
57
1725-435-102-00
58
O-RING/1B,P22A
59
1725-430-001-00
60
PIN/PIVOT COMP
61
J932-201-039-00
62
V402-160-012-00
63
NUT,CASTLE/M16 P=1.5
64
V411-260-016-00
65
V500-164-003-00
66
CAP,OIL
67
PACKING
68
J932-201-041-00
69
V304-460-010-00
70
BOLT/M14X1.5X23
