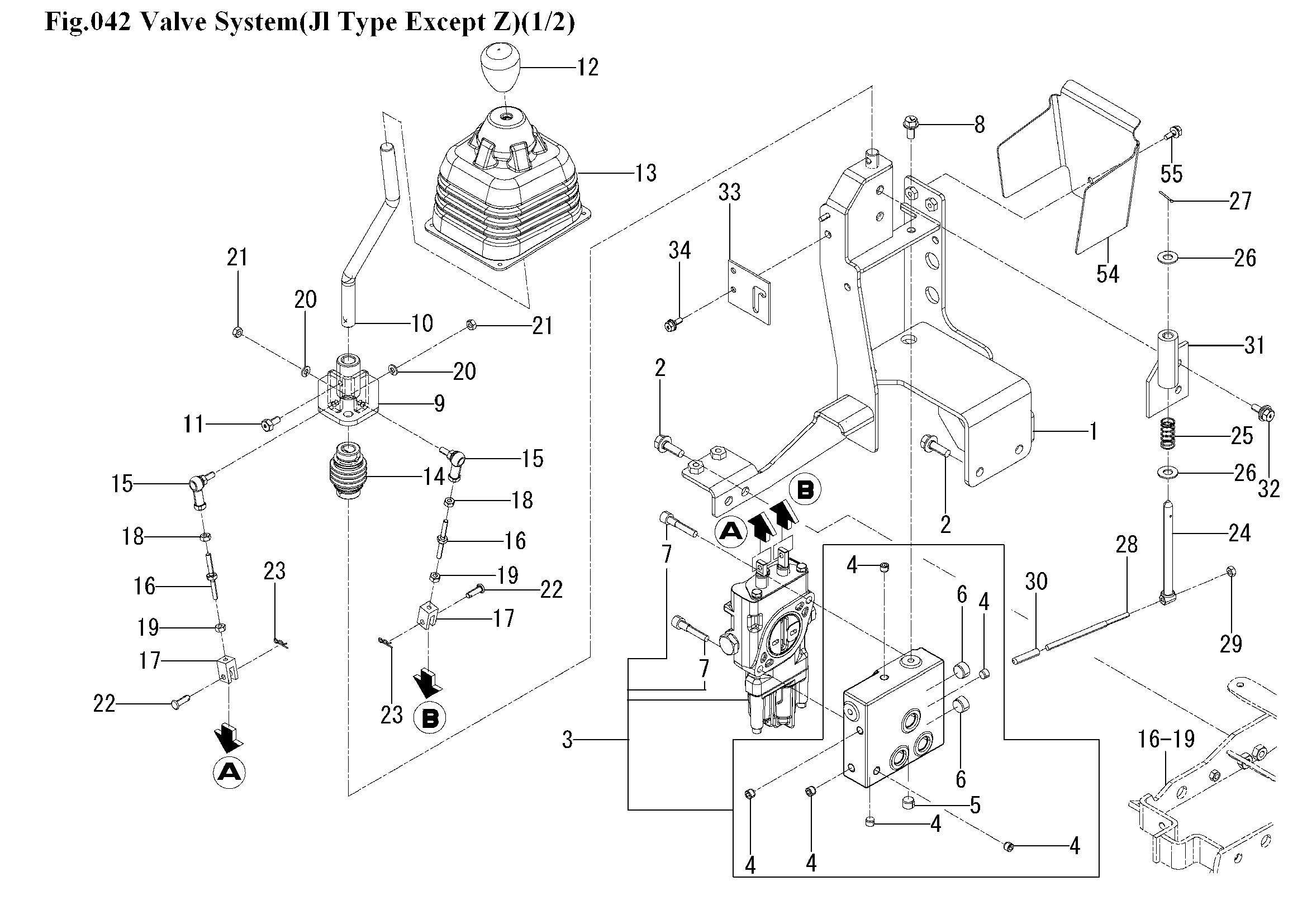

Zusatzsteuergerät
Ersatzteile (55 Teile)
1
1845-512-510-00
2
BOLT,SP/M10X25/7T
3
VALVE/JOY ASSY
4
PLUG/SCREW/SEAL
5
PLUG/SCREW/SEAL
6
PLUG/SCREW/SEAL
7
1725-511-085-00
8
FLANGEBOLT/M8X16
9
1836-512-510-10
10
1845-512-008-00
11
BOLT/M8X16
12
1836-512-001-00
13
1836-512-041-00
14
JOINT ASSY
15
JOINT/BALL/M06
16
ROD/M06X55
17
1836-512-046-00
18
V301-260-006-00
19
NUT/SM/LH/M06
20
V401-160-006-00
21
V301-260-006-00
22
PIN/06X19
23
PIN/SNAP
24
1836-512-540-30
25
1364-403-005-10
26
V411-260-010-00
27
PIN,SPLIT/2X20
28
PIN(6X108)
29
V301-260-006-00
30
CAP/LOCK
31
1836-512-530-00
32
BOLT,SP/M8X20
33
1836-512-052-00
34
BOLT,SP/M6X16
35
FLANGE/JOY
36
1999-512-320-00
37
1999-512-310-00
38
O-RING/1B,P14
39
1836-508-001-00
40
WASHER/07X10X01
41
O-RING/1B,P12
42
1836-512-650-00
43
1836-512-660-00
44
1836-512-670-00
45
1999-512-310-00
46
O-RING/1B,P14
47
1999-508-380-00
48
HOLDER/10
49
FLANGEBOLT/M8X25
50
NUT/M10
51
Kombimutter-M8
52
PLUG(G3/8)
53
O-RING/1B,P14
54
COVER/JOY/VALVE
55
BOLT,SP/M6X16
