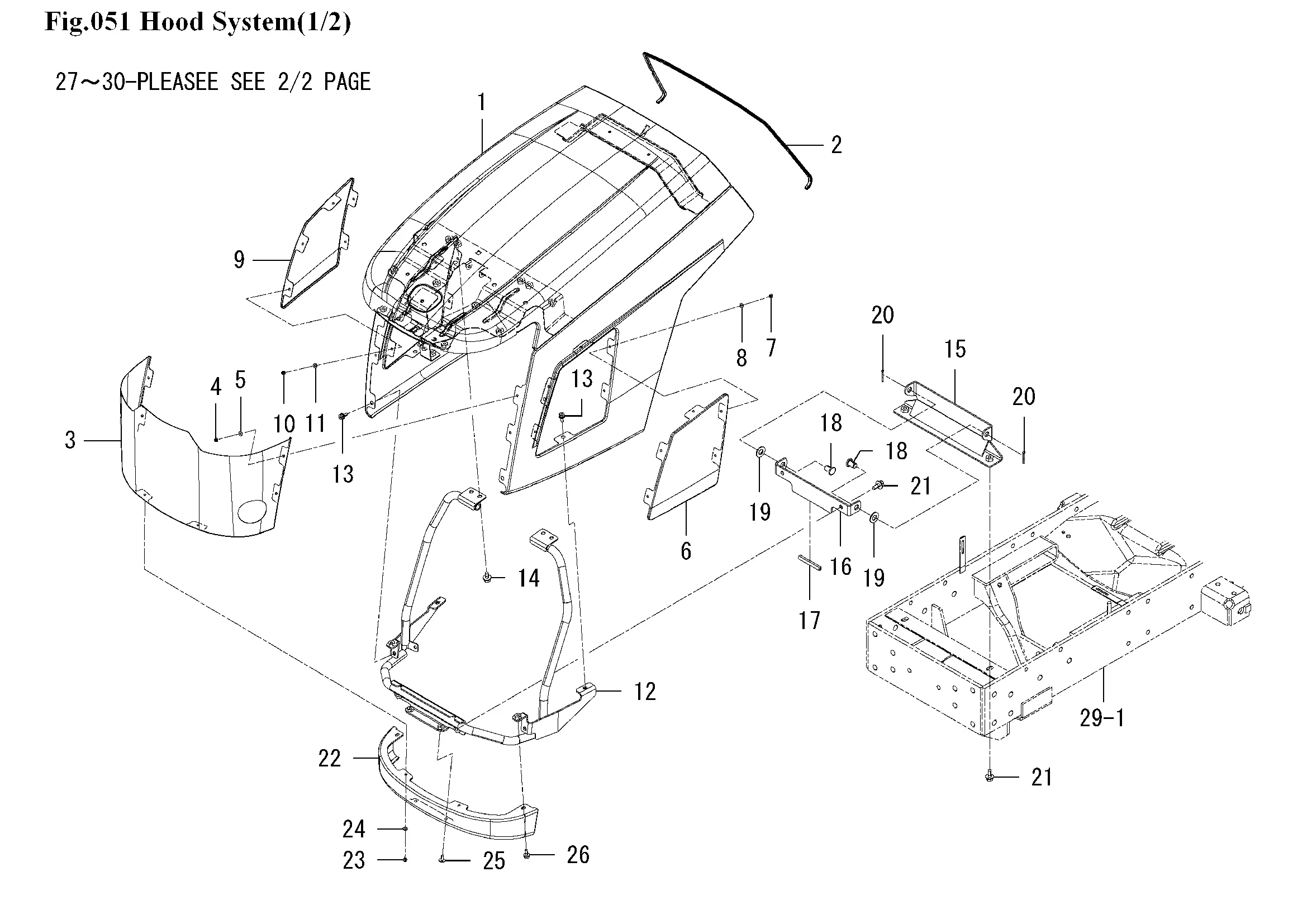

Motorhaube
Ersatzteile (64 Teile)
1
HOOD COMP
2
INSULATOR/HOOD/800
3
NET/HOOD/FRONT
4
J932-296-001-00
5
J932-411-001-00
6
NET/HOOD/LH
7
J932-296-001-00
8
J932-411-001-00
9
NET/HOOD/RH
10
J932-296-001-00
11
J932-411-001-00
12
FRAME COMP
13
BOLT,SP/M6X16
14
V211-660-801-60
15
1999-601-250-00
16
HINGE/HOOD
17
TRIM/75
18
1836-601-054-00
19
1836-601-003-00
20
J932-500-007-00
21
V211-660-802-00
22
HOOD/UNDER
23
J932-296-001-00
24
J932-411-001-00
25
1836-603-002-00
26
BOLT,SP/M6X16
27
1836-601-490-00
28
V211-660-802-00
29
1845-601-230-00
30
V210-660-601-60
31
WASHER,PL/M8
32
1836-601-462-10
33
HOOK COMP
34
WASHER,PL/M8
35
1719-312-001-00
36
SPRING/HE036
37
ROD/PUSH COMP
38
WASHER,PL/M8
39
PIN,SPLIT/2.5X20
40
CAP/PUSH
41
V301-260-006-00
42
1836-601-088-00
43
HOLDER/ROD
44
V411-260-006-00
45
V500-162-001-50
46
1845-601-220-00
47
BOLT,SP/M8X16
48
1845-601-092-00
49
BOLT,SP/M6X16
50
1845-601-005-00
51
INSULATOR/30X30X920
52
SUPPORT/BRACKET COMP
53
1836-601-055-00
54
BUSH/19X30X14
55
BOLT,SP/M8X25
56
NUT/M10
57
V210-660-604-00
58
FLANGEBOLT/M6X16
59
V401-160-006-00
60
V301-260-006-00
61
TOOL/HOOD COMP
62
FRAME/HOOD/LOWE COMP
63
FRAME/HOOD/UPPE COMP
64
V211-660-802-00
