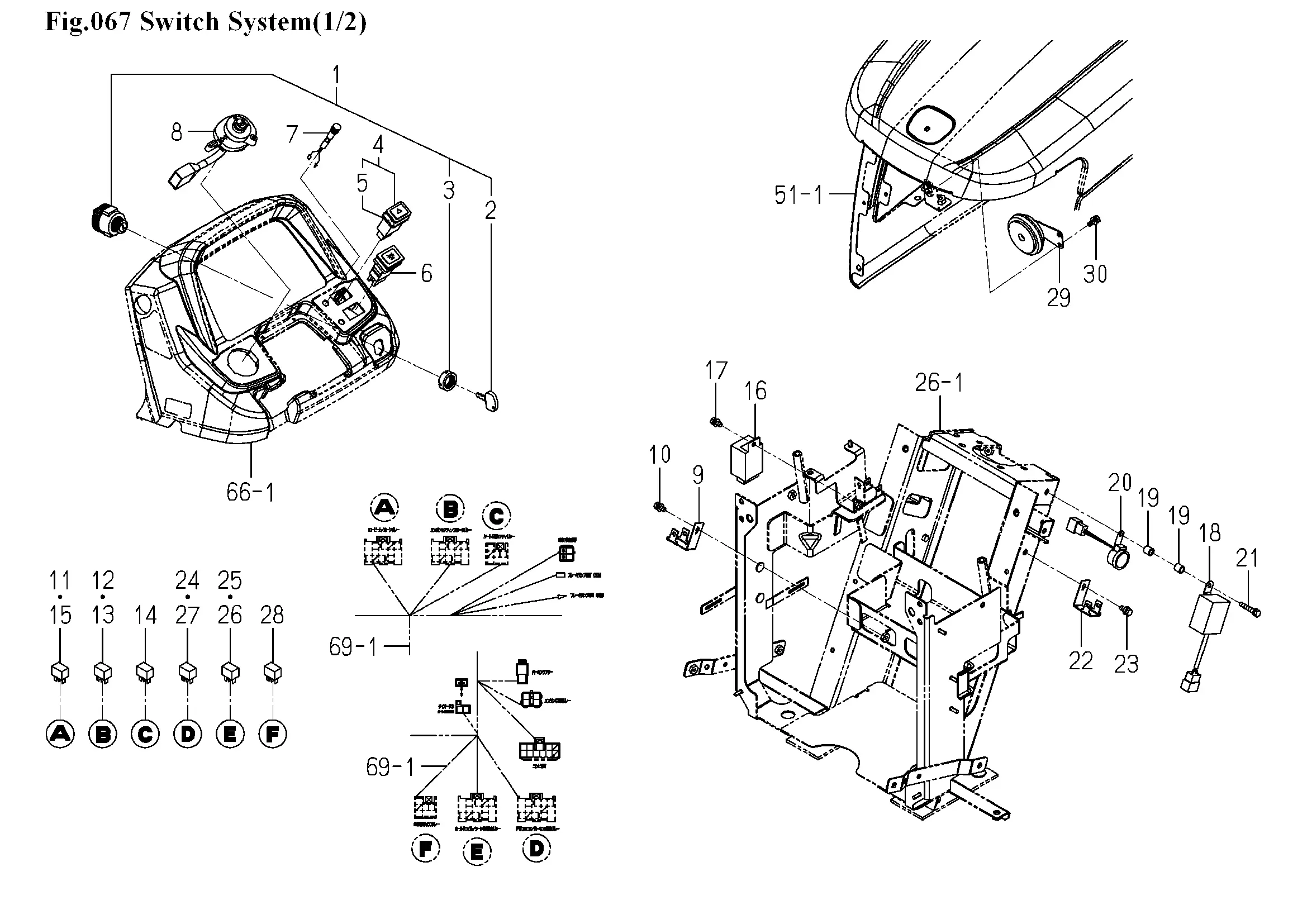

Schalter, Hupe
Ersatzteile (58 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
SWITCH/HAZARD ASSY
5
BULB/LAMP/14V60MA
6
SWITCH/BEACON ASSY
7
LAMP/LED ASSY
8
SWITCH/COMBINATION/E
9
1725-405-233-10
10
BOLT,SP/M6X16
11
RELAY/5P ASSY
12
RELAY/5P ASSY
13
RELAY/5P ASSY
14
RELAY/5P ASSY
15
RELAY/5P ASSY
16
1739-681-220-20
17
BOLT,SP/M6X16
18
UNIT/TIMER ASSY
19
1725-407-001-10
20
BUZZER ASSY
21
BOLT,S/M6X35/7T
22
1725-405-233-10
23
BOLT,SP/M6X16
24
RELAY/5P ASSY
25
RELAY/5P ASSY
26
RELAY/5P ASSY
27
RELAY/5P ASSY
28
RELAY/5P ASSY
29
1740-680-530-20
30
BOLT,SP/M6X16
31
1772-654-280-10
32
1772-654-281-00
33
BOOT
34
SWITCH/LIMIT ASSY
35
1836-680-044-00
36
PLATE,SWITCH
37
ARM/SENSOR COMP
38
BUSH/15X17X15
39
WASHER
40
Sicherungsring 15x1
41
1725-680-002-00
42
BOLT,SP/M8X16
43
1740-680-520-10
44
BOLT,SP/M6X16
45
SWITCH ASSY
46
V120-364-001-60
47
1845-680-210-00
48
V210-360-601-20
49
1342-402-006-00
50
1739-681-720-00
51
BOLT,SP/M6X30
52
1716-680-330-10
53
ARM
54
BOLT,SP/M6X16
55
COLLAR/08X12X15
56
1845-680-001-00
57
1740-680-520-10
58
BOLT,SP/M6X16
