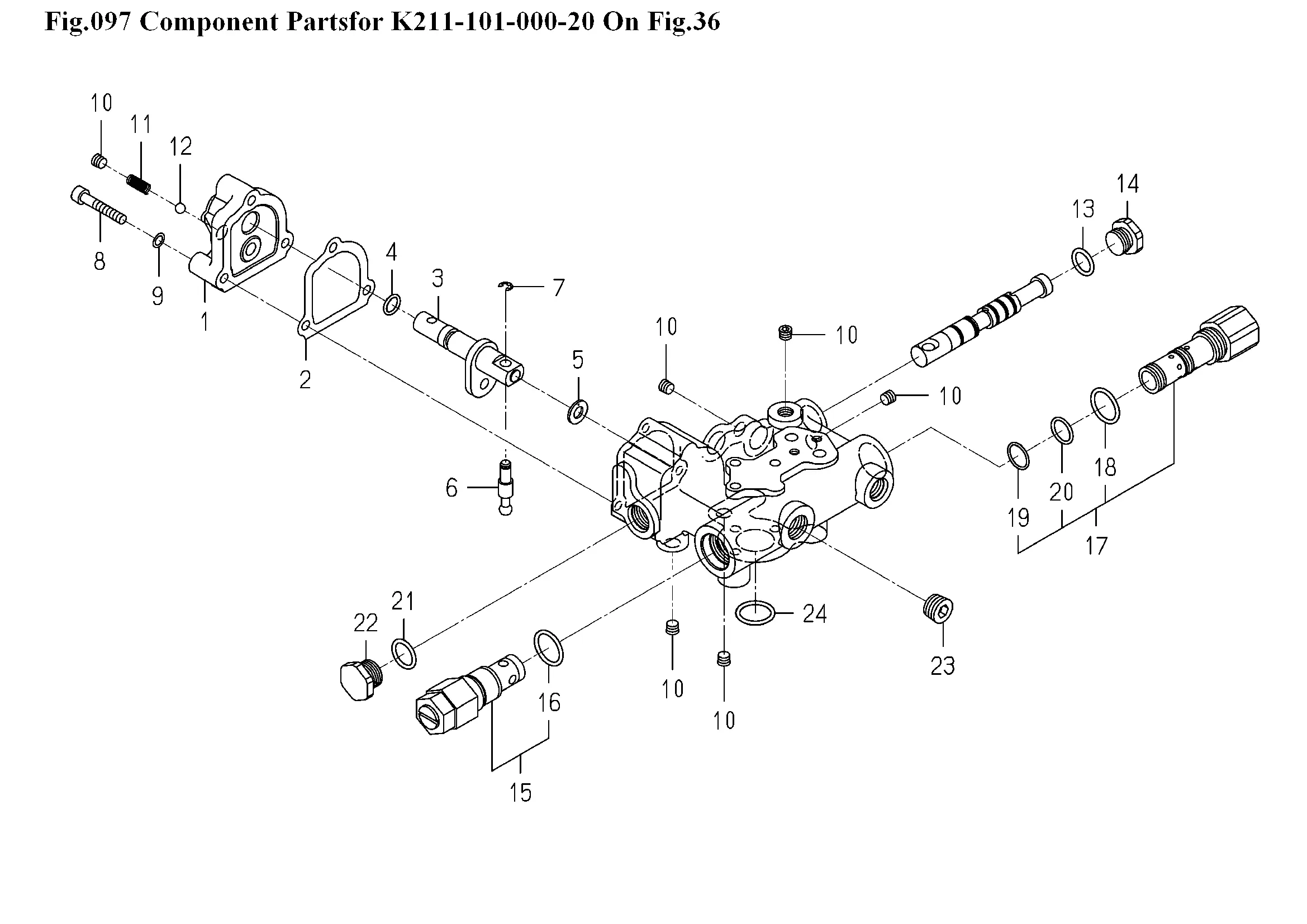

Einzelteile Steuerventil K211-101-000-20
Ersatzteile (24 Teile)
1
K211-101-101-00
2
GASKET/DVS2/066
3
K211-066-300-00
4
O-RING/1B,P10A
5
WASHER/THRUST/8X16
6
K211-101-102-00
7
RING,SNAP/4 E
8
K211-101-103-00
9
WASHER/07X10X01
10
PLUG/SCREW/SEAL
11
SPRING/HC017
12
BALL,STEEL
13
O-RING/1B,P14
14
PLUG
15
K250-054-000-10
16
O-RING/1B,P20
17
VALVE/FLOW PRIORITY/
18
O-RING/1B,P20
19
O-RING/1B,S16
20
RING/O/F404/1015
21
O-RING/1B,P16
22
K234-001-005-00
23
PLUG/SCREW/SEAL
24
O-RING/1B,P20
