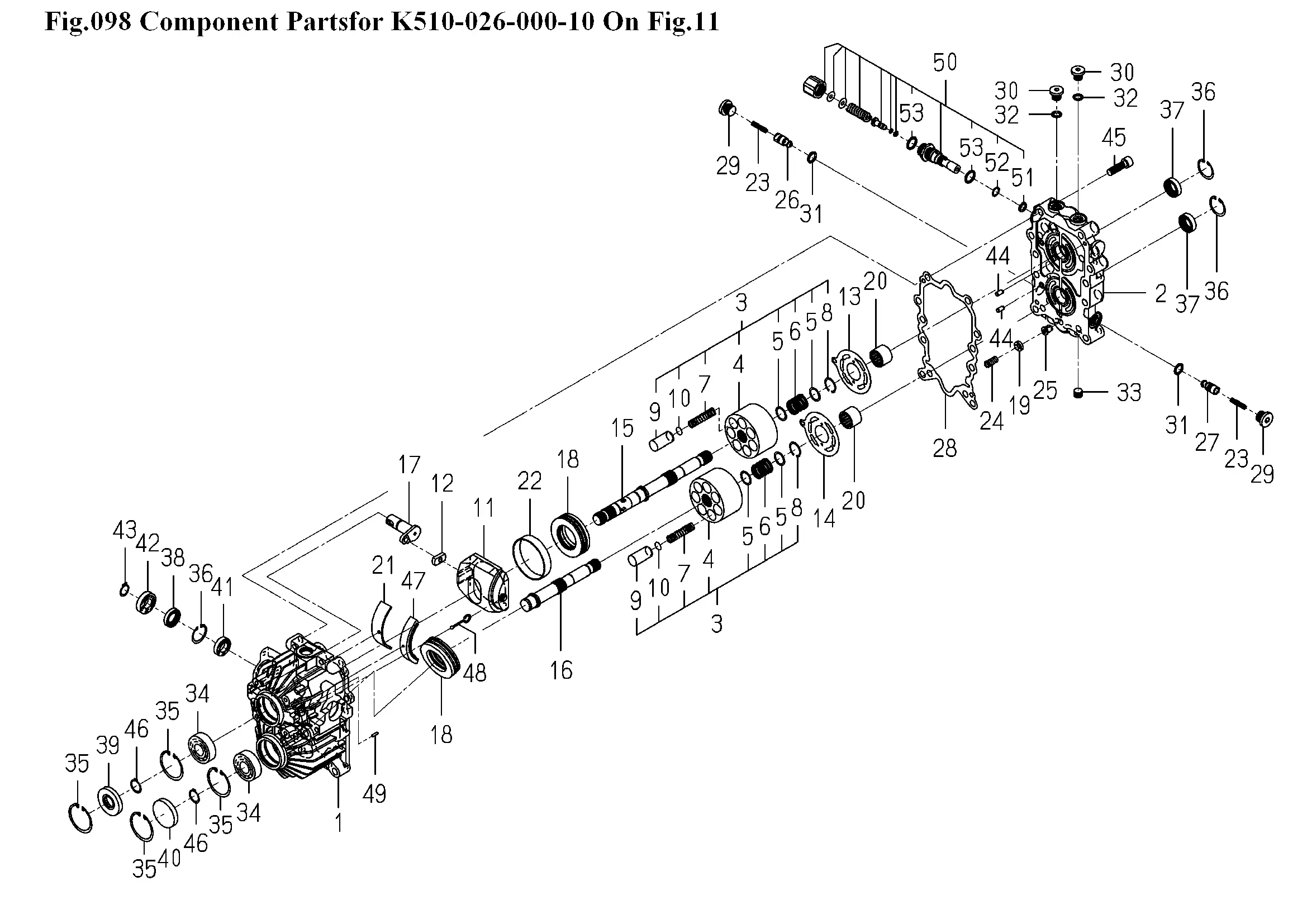

Einzelteile Hydrostat K510-026-000-10
Ersatzteile (53 Teile)
1
K510-017-001-00
2
K510-026-004-10
3
BLOCK/CYLINDER/HMS1
4
K510-021-301-00
5
K510-021-302-00
6
K510-021-303-00
7
K510-021-304-00
8
K510-021-305-00
9
K510-021-306-00
10
SHIM/1.0
11
K510-017-006-00
12
K510-001-007-00
13
PLATE/VALVE/PUMP
14
PLATE/VALVE/MOTOR
15
K510-026-012-00
16
K510-021-013-00
17
K510-017-014-00
18
BEARING/THRUST
19
K510-026-037-00
20
K510-021-016-10
21
BUSH/95X100X22
22
BUSH/68X71X14
23
SPRING/HC030
24
SPRING/HC021
25
K510-003-022-00
26
K510-026-023-00
27
K510-021-024-00
28
GASKET
29
PLUG(G3/8)
30
PLUG(PF1/4)
31
O-RING/1B,P14
32
O-RING/1B,P11
33
PLUG/SCREW/SEAL
34
V600-110-620-40
35
RING,SNAP/47 C
36
RING,SNAP/30 C
37
SEAL/OIL
38
SEAL/OIL
39
SEAL,OIL/TC20477
40
SEAL/47
41
K510-017-047-00
42
K510-017-048-00
43
RING,SNAP/17 C
44
K510-001-036-00
45
V220-541-003-50
46
RING,SNAP/20 C
47
BEARING/NEEDLE
48
K510-003-500-00
49
V523-100-301-00
50
K510-026-100-00
51
O-RING/1B,P12
52
RING/BACK UP
53
O-RING/1B,P18
