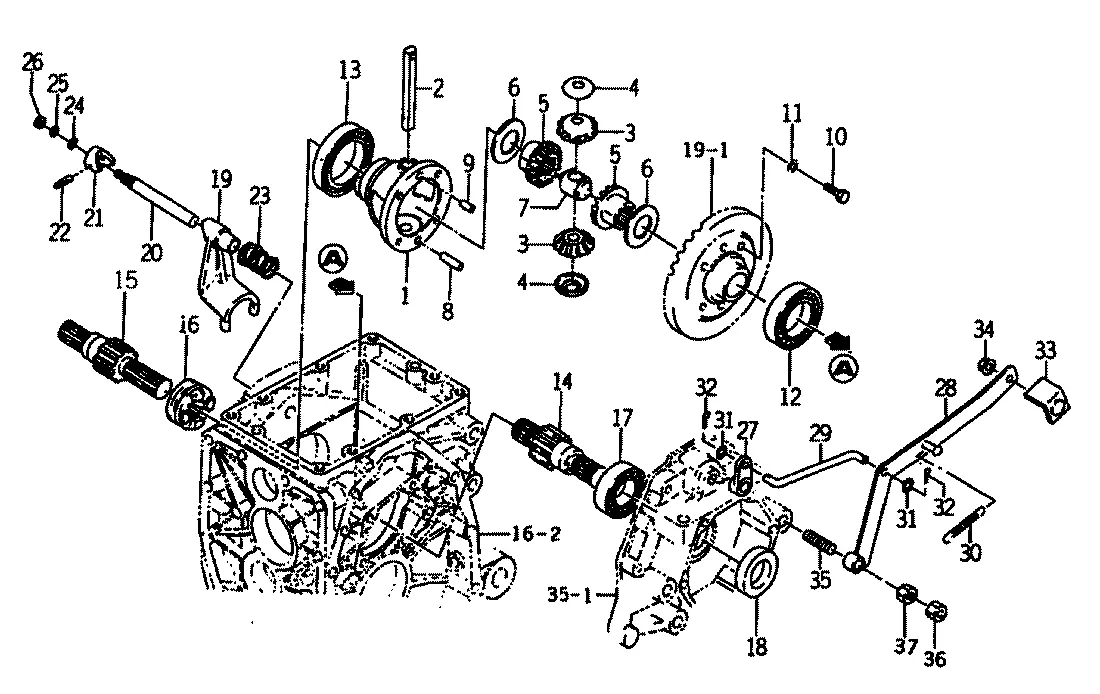

Differential
Ersatzteile (37 Teile)
1
1427-301-002-20
2
SHAFT,DIFF. PINION
3
Kegelrad, Differenzial/12 Z
4
COLLAR,PINION THRUST
5
Kegelrad, Diff.-Korb
6
COLLAR,THRUST
7
Halter, Differenzialkegelrad
8
1672-301-002-00
9
V522-100-801-60
10
BOLT/M8X25
11
WASHER,SP/M8
12
BEARING,RB/6009
13
BEARING,RB/6010
14
Antriebswelle
15
Antriebswelle
16
Kupplungsklaue, Hinterachs.Dif
17
BEARING,RB/6206
18
SEAL,OIL/TC30458
19
1427-301-014-10
20
Schaltwelle, Differenzial
21
CAM,DIFF-LOCK
22
V530-240-502-40
23
SPRING,PRESS/40
24
O-RING/1A,P10A
25
WASHER,SP/M10
26
NUT/M10
27
ARM/DIFFLOCK
28
1682-301-200-00
29
1672-301-001-00
30
SPRING,TENSION/121
31
WASHER,PL/M8
32
PIN,SPLIT/2X20
33
1672-301-210-00
34
Kombimutter-M8
35
V251-261-203-50
36
NUT/M12
37
V305-260-012-00
