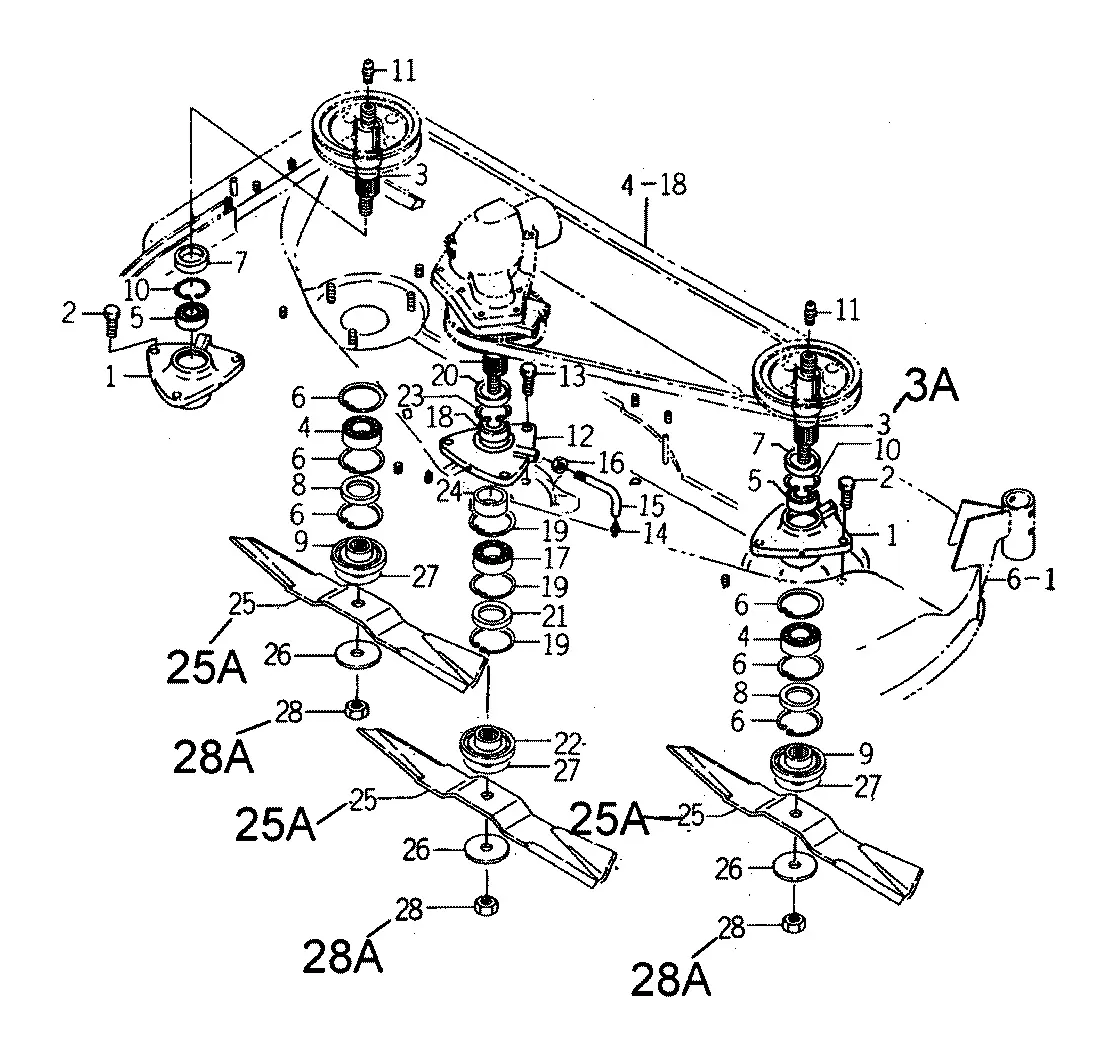

Messer,Messerlagerung,Messerflansch
Ersatzteile (31 Teile)
1
METAL/SIDE
2
V211-261-002-50
3
Messerwelle
3A
SHAFT/BRADE
4
BEARING/BALL
5
BEARING,RB/6908
6
RING,SNAP/52 C
7
SEAL/OIL
8
SEAL,OIL/TC35528
9
COLLAR/BRADE
10
RING,SNAP/R62
11
NIPPLE,GREASE
12
METAL/CENTER
13
V211-261-002-50
14
NIPPLE,GREASE
15
PIPE/GREASE
16
NUT/M10
17
BEARING/BALL
18
BEARING,RB/6908
19
RING,SNAP/52 C
20
SEAL/OIL
21
SEAL,OIL/TC35528
22
COLLAR/BRADE
23
RING,SNAP/R62
24
COLLER/26X34X15
25
Messer 60x472 D=14mm
25A
Messer
26
Scheibe 14x55x5
27
Scheibe
28
NUT/M14/7T
28A
NUT/M20X1.5
