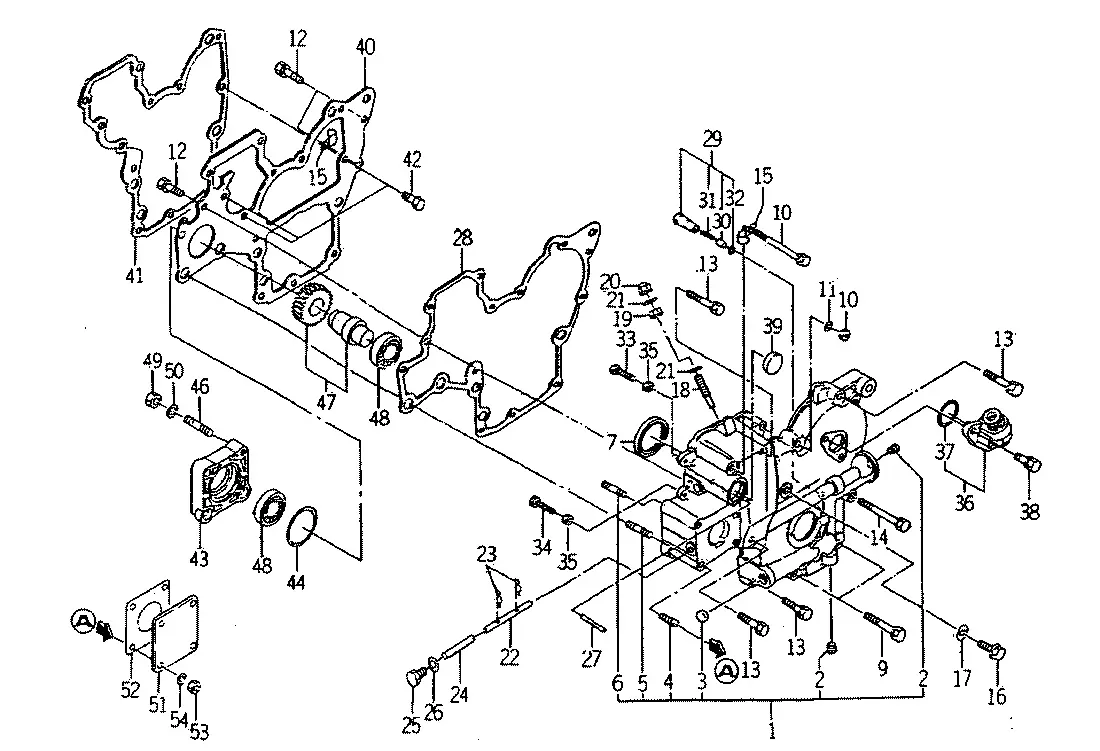

Stirnraddeckel
Ersatzteile (54 Teile)
1
6211-310-012-10
2
Stopfen
3
Stopfen
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
9
6509-000-084-00
10
6909-110-508-00
11
6909-150-508-00
12
V211-560-802-00
13
6901-910-845-00
14
6209-030-006-00
15
HOLDER/JE/9-9
16
Bolzen
17
WASHER/08X14X01
18
6215-546-003-00
19
6209-409-001-00
20
NUT,CAP/M8
21
Dichtung
22
PIN/ARM
23
PIN/SNAP
24
6215-542-005-00
25
Stecker
26
Dichtung
27
PIN,GROOVE
28
6211-312-003-10
29
Ventil
30
Kolben
31
SPRING/RELIEF VALVE
32
RING,SNAP/12 C
33
6209-050-001-00
34
6209-050-002-00
35
6909-110-406-00
36
6219-310-003-10
37
O-RING/1A,S24
38
6901-910-616-00
39
CAP,BLANK/30
40
Platte
41
6211-312-004-10
42
6902-050-816-00
43
SPACER
44
O-RING/1A,S50
46
STUD
47
Welle
48
V600-110-600-50
49
6909-110-408-00
50
6909-150-508-00
51
Deckel
52
6211-322-002-00
53
6909-110-408-00
54
6909-150-508-00
ob
6209-030-005-00
ob
6209-749-001-10
