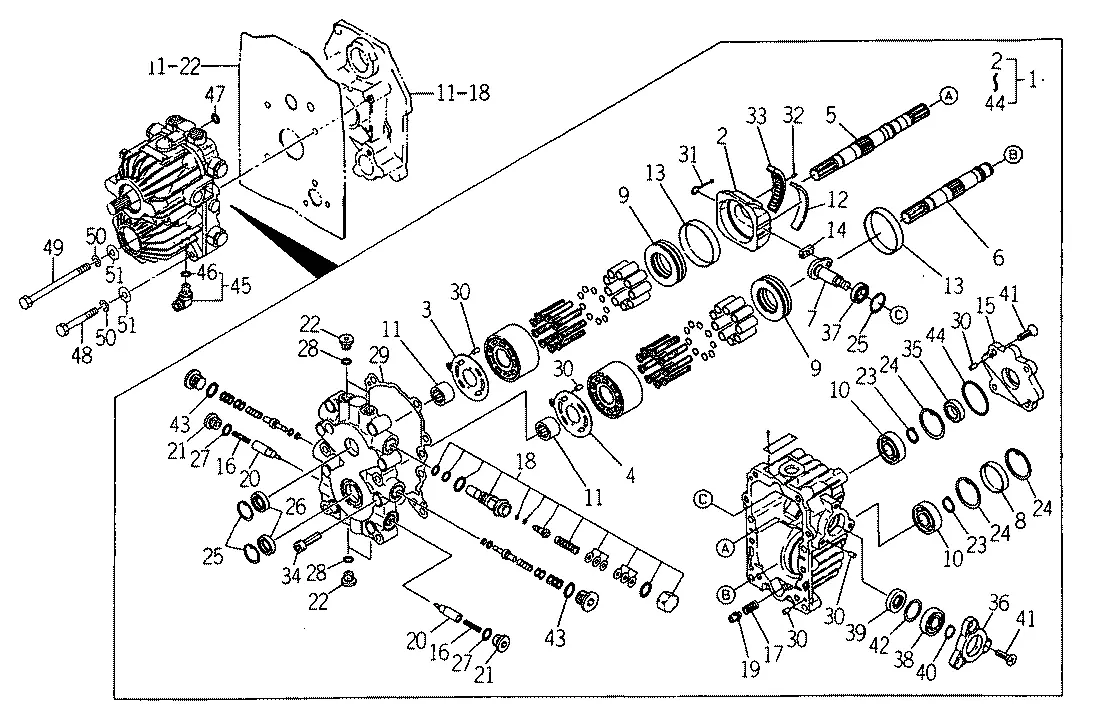

Hydrostat, Einzelteile
Ersatzteile (51 Teile)
1
Hydrostat, kpl. (NETTO)
2
1683-202-501-00
3
Ventilplatte
4
Ventilplatte
5
Welle, HST
6
1683-202-505-00
7
1683-202-506-00
8
Dichtkappe
9
1683-202-508-00
10
1683-202-509-00
11
Nadellager
12
1683-202-512-00
13
BUSH
14
1683-202-514-00
15
Deckel
16
SPRING
17
1683-202-517-00
18
VALVE/S/A
19
1683-202-519-00
20
POPPET
21
1683-202-522-00
22
1683-202-523-00
23
RING,SNAP/20 C
24
RING,SNAP/47 C
25
RING,SNAP/30 C
26
Wellendichtring (NMJ)
27
O-RING/1B,P14
28
O-RING/1B,P11
29
Dichtung
30
1683-202-526-00
31
1683-202-527-00
32
1683-202-528-00
33
1683-202-519-00
34
V220-541-003-50
35
Wellendichtring, zweiteilig
36
1683-202-532-00
37
Lager
38
Lager
39
Wellendichtring
40
RING,SNAP/17 C
41
Schraube
42
1683-202-537-00
43
O-RING/1B,P18
44
O-Ring
45
1683-273-640-00
46
O-RING/1B,P14
47
O-RING/1A,P14
48
BOLT/M10X75/7T
49
BOLT/M10X140/7T
50
WASHER,SP/M10
51
V411-260-010-00
