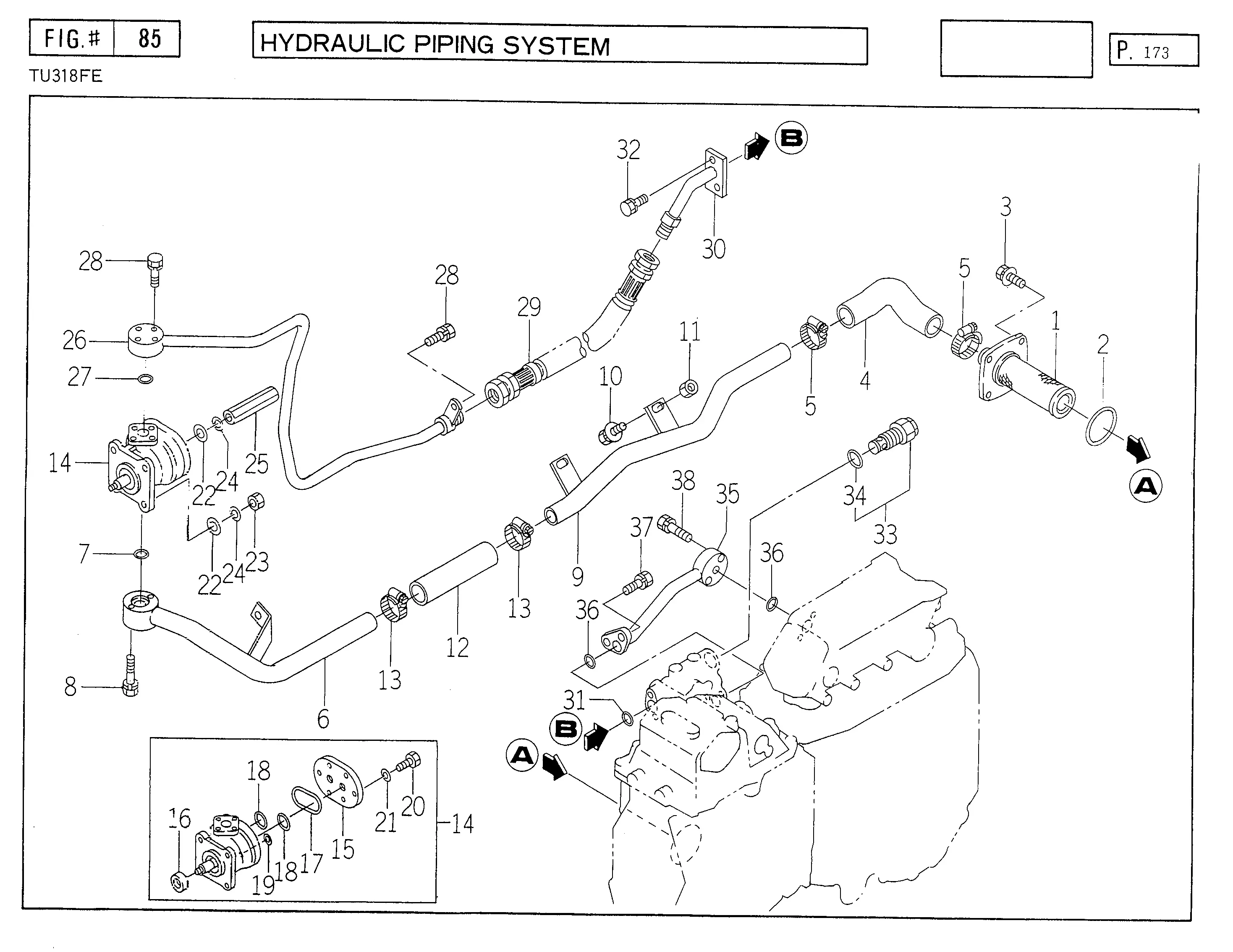

Hydraulikpumpe, -Leitungen
Ersatzteile (38 Teile)
1
Hydraulifilter 125MM LANG
2
O-RING/1A,G70
3
BOLT,SP/M8X25
4
Schlauch
5
Schlauchschelle 32-50 (9 breit)
6
Hydraulikleitung
7
O-RING/1A,P20
8
V210-260-604-00
9
Hydraulikleitung
10
BOLT,SP/M8X20
11
NUT/M8
12
Schlauch
13
Schlauchschelle 32-50 (9 breit)
14
Hydraulikpumpe
15
COVER,PUMP
16
SEAL,OIL/TC14287
17
O-RING/1B,G50 HS90
18
O-RING/1B,P22
19
O-RING/1B,P6
20
K135-002-009-00
21
V401-140-008-00
22
WASHER,PL/M8
23
NUT/M8
24
WASHER,SP/M8
25
1560-515-004-40
26
Hydraulikleitung
27
O-RING/1B,P20
28
V210-260-603-00
29
Hydraulikschlauch (NML)
30
Leitung
31
O-RING/1B,P14
32
BOLT,S/M8X25
33
Ventil
34
O-RING/1B,P20
35
Hydraulikleitung
36
O-RING/1B,P14
37
BOLT,S/M8X25
38
BOLT,S/M8X35
