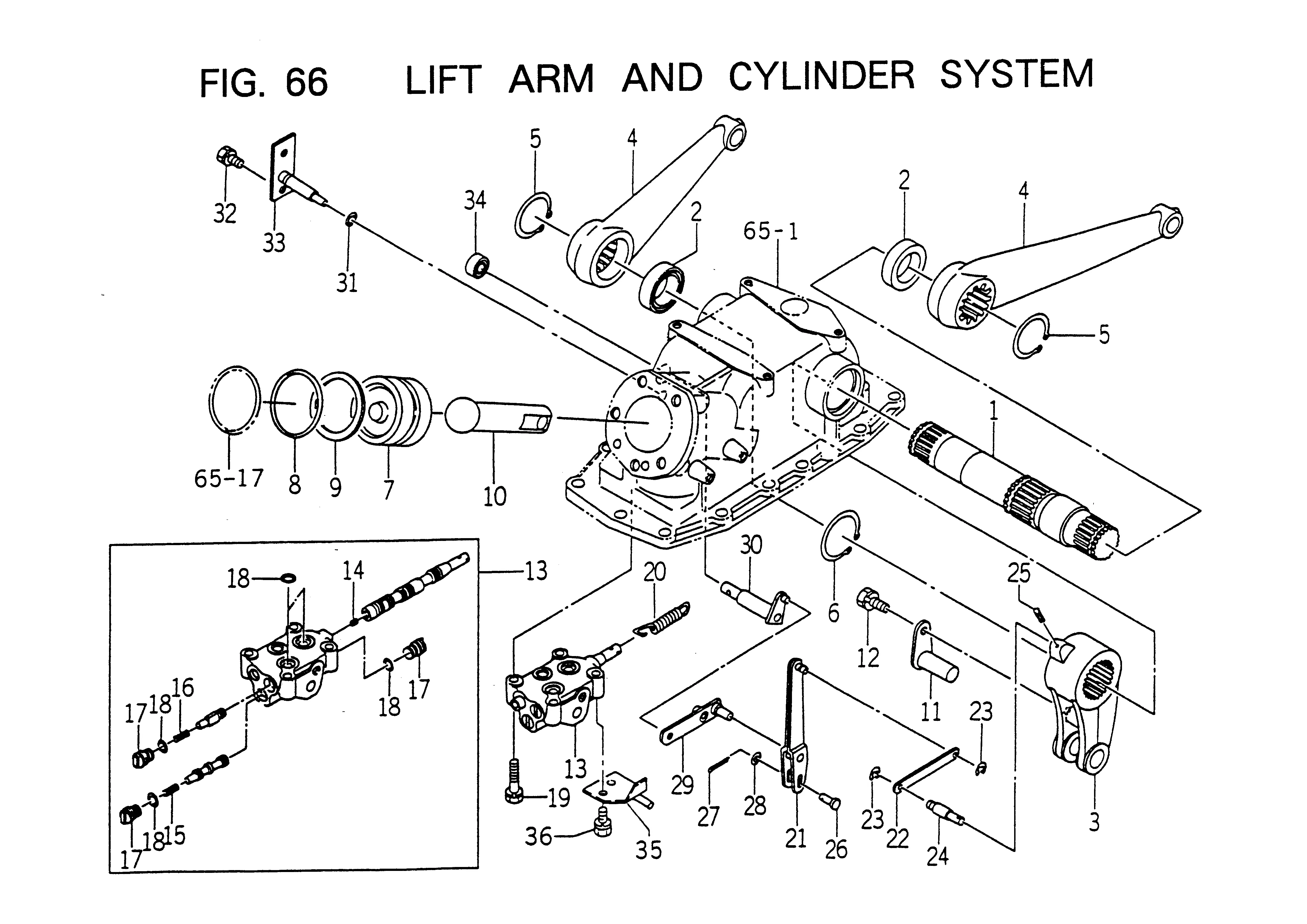

Hubarme, Heckaushebung
Ersatzteile (36 Teile)
1
Welle
2
1444-501-004-10
3
1588-502-002-00
4
Hubarm, Heckhydraulik
5
V706-140-045-00
6
V706-140-050-00
7
1444-503-001-20
8
O-RING/1B,P65
9
RING,BACK UP
10
Gestänge
11
PIN,ROD COMP
12
BOLT,S/M10X20/7T
13
Ventil
14
SPRING
15
K211-003-002-00
16
SPRING
17
Stopfen
18
O-RING/1B,P12
19
V211-260-804-00
20
Feder
21
1588-503-200-00
22
1550-503-005-00
23
RING,SNAP/4 E
24
1550-503-006-00
25
PIN,SPRING/3X16 W
26
PIN/5X17
27
V500-162-001-50
28
V411-260-005-00
29
1550-503-220-00
30
Hebel
31
O-RING/1A,P7
32
V211-260-801-60
33
1550-503-240-10
34
Wellendichtring
35
1603-503-200-00
36
V211-260-801-20
