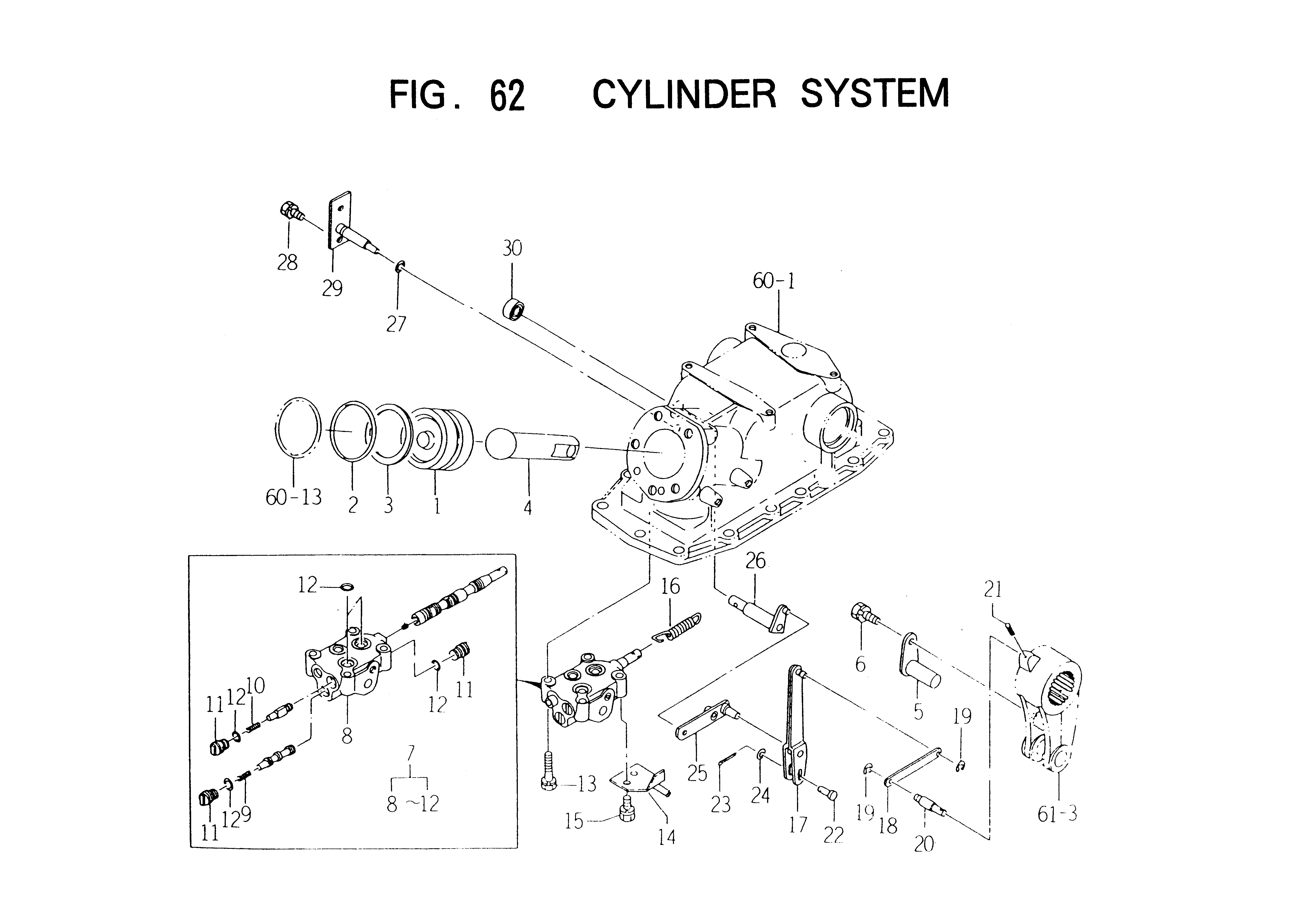

Heckhydraulik
Ersatzteile (30 Teile)
1
1444-503-001-20
2
O-RING/1B,P65
3
RING,BACK UP
4
Gestänge
5
PIN,ROD COMP
6
BOLT,S/M10X20/7T
7
Ventil
8
K211-003-100-00
9
SPRING
10
SPRING
11
Stopfen
12
O-RING/1B,P12
13
V211-260-804-00
14
1603-503-200-00
15
V211-260-801-20
16
Feder
17
1588-503-200-00
18
1550-503-005-00
19
RING,SNAP/4 E
20
1550-503-006-00
21
PIN,SPRING/3X16 W
22
PIN/5X17
23
V500-162-001-50
24
V411-260-005-00
25
1550-503-220-00
26
Hebel
27
O-RING/1A,P7
28
V211-260-801-60
29
1550-503-240-10
30
Wellendichtring
