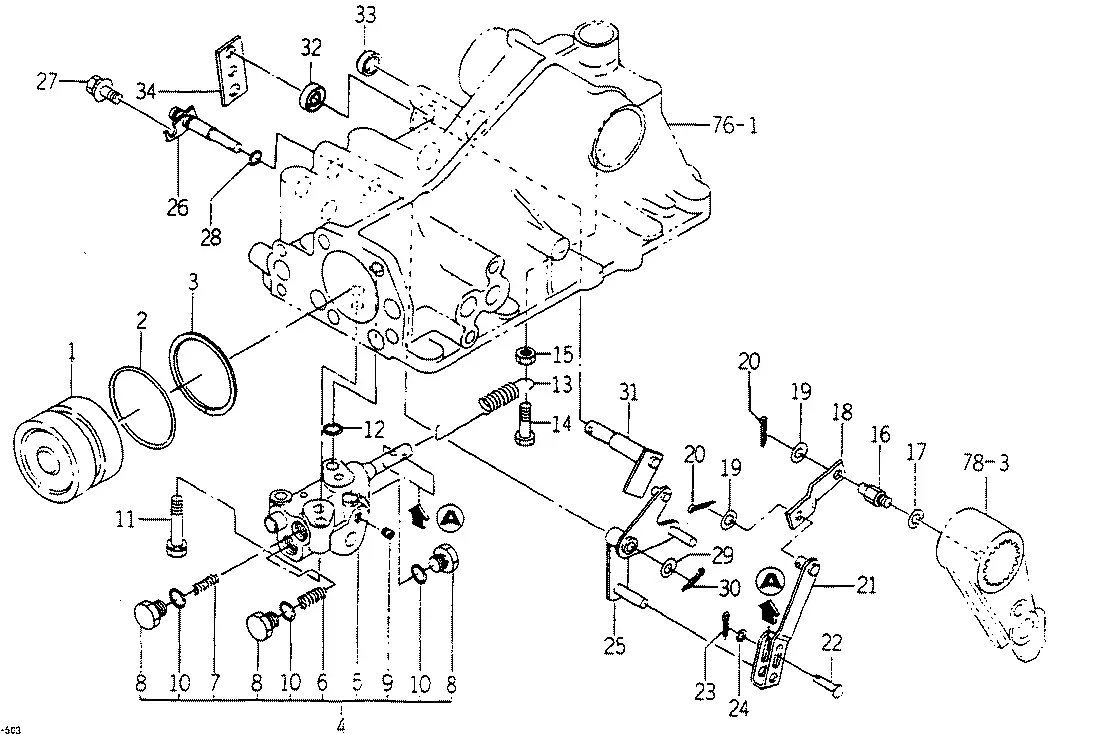

Zylinder, Ventil-Heckhydraulik
Ersatzteile (34 Teile)
1
Kolben, Heckhydraulik
2
O-RING/1B,P55
3
RING,BACKUP
4
Steuerventil
5
K211-025-100-20
6
SPRING
7
SPRING
8
PLUG
9
K200-014-007-00
10
O-RING/1B,P12
11
V211-260-804-50
12
O-RING/1B,P14
13
1614-503-004-00
14
V201-260-803-00
15
NUT/M8
16
1614-503-001-00
17
WASHER,SP/M8
18
1614-503-002-00
19
WASHER,PL/M8
20
PIN,SPLIT/2X20
21
1614-503-200-00
22
1614-503-005-00
23
PIN,SPLIT/2X20
24
V411-260-005-00
25
1614-503-270-10
26
1620-503-200-00
27
BOLT,SP/M8X16
28
O-RING/1A,P7
29
WASHER,PL/M8
30
PIN,SPLIT/2X20
31
ARM/POSITION COMP
32
SEAL,OIL/VC12224
33
PLUG/22
34
PLATE/I/25X62
