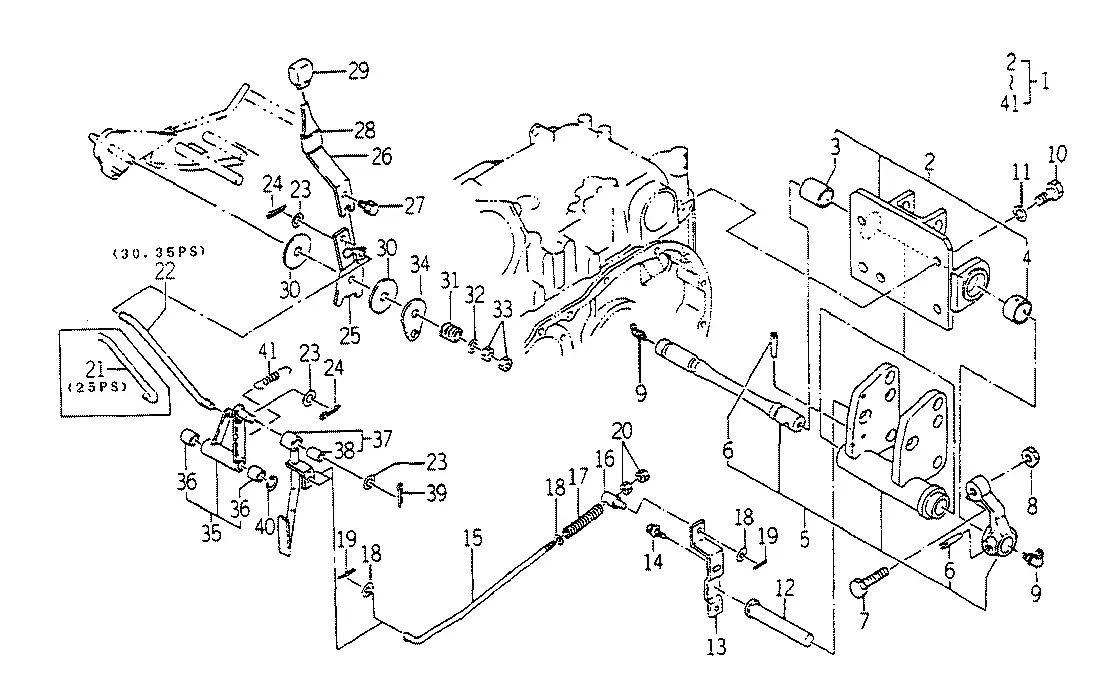

Hebel,Gestänge-Heckaushebung
Ersatzteile (41 Teile)
1
1594-512-910-00
2
1594-512-210-10
3
1560-522-002-00
4
1560-522-003-40
5
1560-522-230-40
6
V511-101-006-00
7
1594-512-004-00
8
NUT/M14
9
V762-150-000-00
10
BOLT/M14X35/7T
11
WASHER,SP/M14
12
Bolzen Typ=D-19-110--000
13
1560-522-004-30
14
BOLT,SP/M8X16
15
1594-512-002-00
16
Verbindung
17
Feder
18
WASHER,PL/M8
19
PIN,SPLIT/2.5X20
20
NUT/M8
21
1561-514-211-40
22
1563-514-211-40
23
WASHER,PL/M8
24
PIN,SPLIT/2X20
25
Platte
26
1594-512-001-10
27
V211-260-801-60
28
Schlauch
29
Knopf, Handgashebel
30
1600-505-007-00
31
SPRING,PRESS/22
32
V411-260-010-00
33
NUT/M10
34
PLATE
35
1560-512-230-60
36
Buchse 12x14x20
37
1594-512-230-00
38
BUSH/10X12X20
39
PIN,SPLIT/2X20
40
RING,SNAP/12 C
41
Feder
