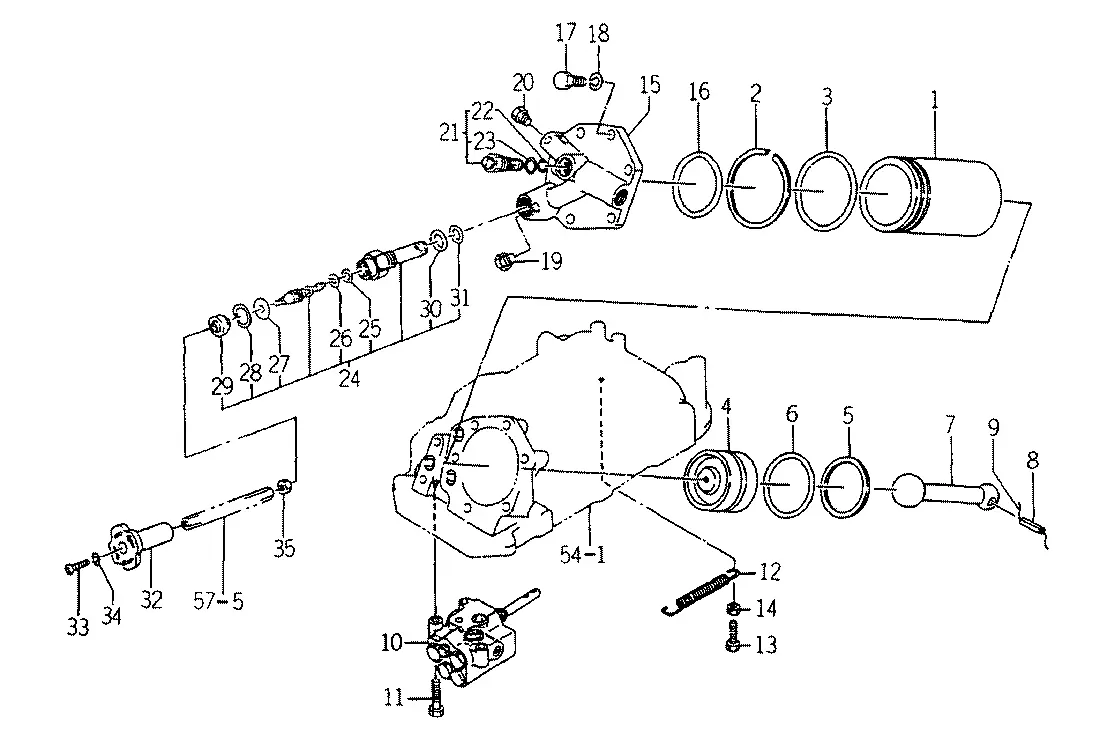

Zylinder, Heckhydraulik
Ersatzteile (34 Teile)
1
Zylinder
2
Dichtring
3
O-Ring
4
Kolben
5
Stützring
6
O-Ring
7
1650-501-008-00
8
V580-140-805-00
10
K211-008-000-10
11
V211-260-804-00
12
SPRING
13
V201-260-803-00
14
NUT/M8
15
1560-507-008-00
16
O-Ring G75
17
V201-361-203-50
18
WASHER,SP/M12
19
PLUG/SCREW/SEAL
20
PLUG/SCREW/SEAL
21
VALVE
22
O-RING/1B,P12
23
O-RING/1B,P18
24
K231-004-000-20
25
O-RING/1B,P10A
26
RING/BACK UP
27
Manschette 11x21x3
28
Sicherungsring
29
SEAL,DUST
30
O-RING/1B,P22
31
O-RING/1B,P16
32
KNOB
33
SCREW/M6X40
34
V401-160-006-00
35
NUT/M10
