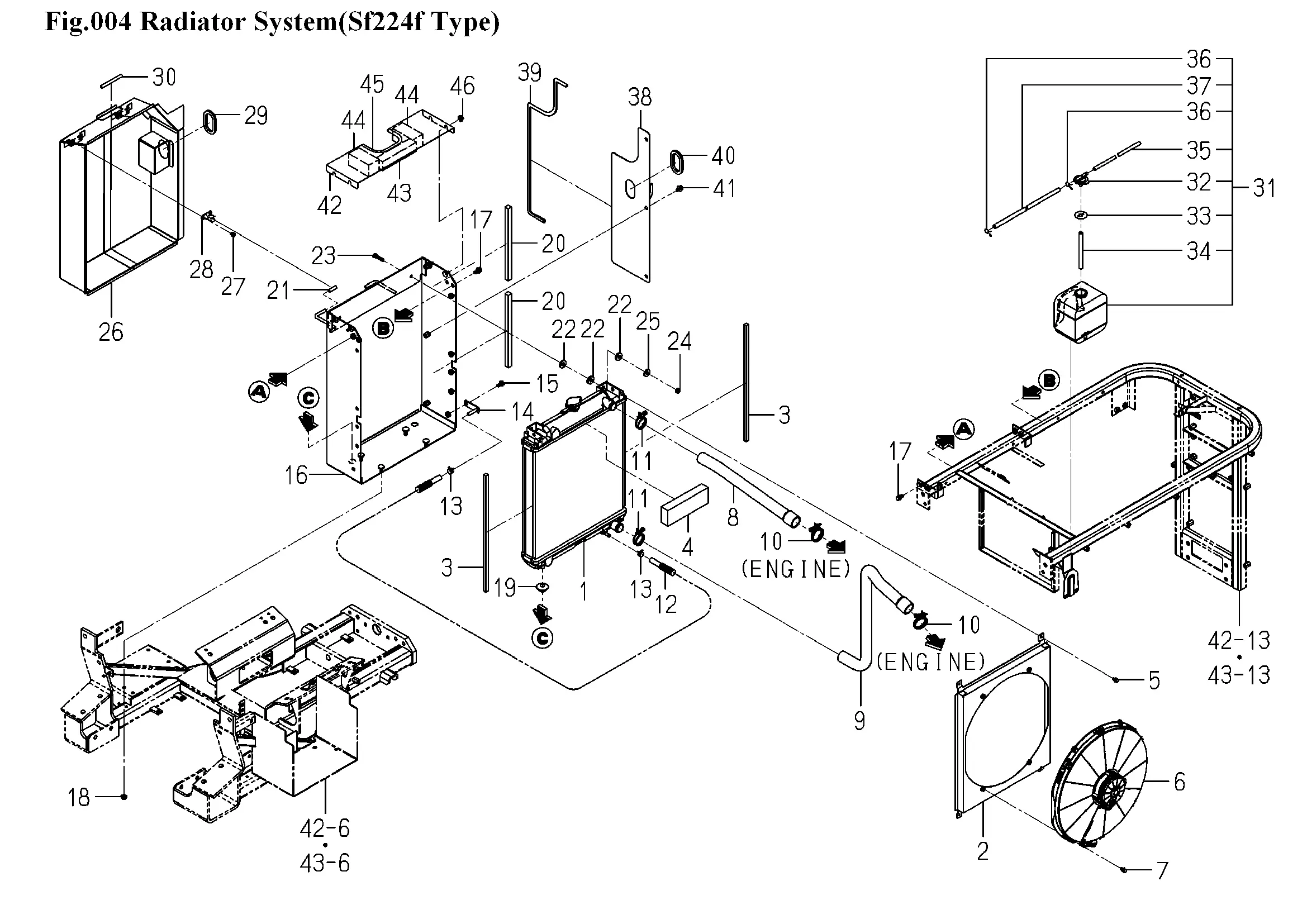

Kühler
Ersatzteile (46 Teile)
1
RADIATOR ASSY
2
1832-102-220-00
3
INSULATOR/10X10X450
4
INSULATOR
5
BOLT,SP/M6X16
6
FAN/RADIATOR/22 ASSY
7
BOLT,SP/M6X16
8
HOSE/RADIATOR/IN/224
9
HOSE/RADIATOR/OUT/22
10
CLAMP/WIRE/36-44
11
J061-230-038-00
12
HOSE/290 ASSY
13
CLIP/HOSE/14.7-15.9
14
1809-102-330-00
15
FLANGEBOLT/M8X16
16
1832-102-210-20
17
BOLT,SP/M8X20
18
Kombimutter-M8
19
BUSH,LEVER
20
Isolierung
21
TUBE/07X09X30
22
CUSHION/RUBBER/10X25
23
V201-260-803-50
24
1719-312-001-00
25
WASHER/24X9X3.2
26
COVER/RADIATOR COMP
27
SCREW,SP/M6X12
28
SPRING
29
TRIM/188
30
INSULATOR/90
31
RESERVETANK ASSY
32
CAP
33
PACKING
34
1690-102-214-00
35
1690-102-215-00
36
1690-102-216-00
37
HOSE/RUBBER
38
PLATE/GUARD/RADIATOR
39
INSULATOR/791
40
TRIM/198
41
BOLT,SP/M8X16
42
1832-102-001-00
43
INSULATOR/30X35X150
44
1796-604-073-00
45
INSULATOR/220
46
Kombimutter-M8
