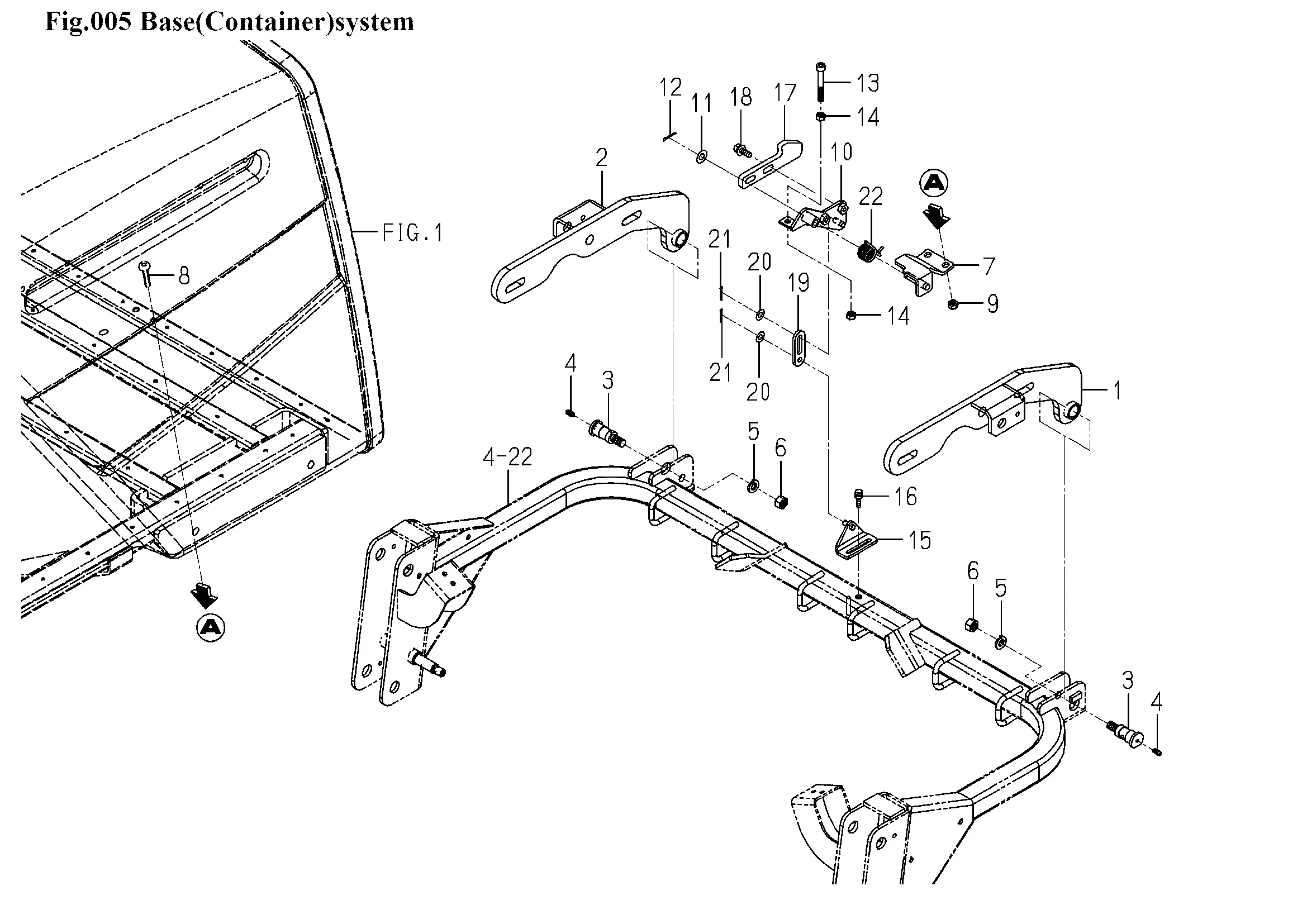

Halterung
Ersatzteile (22 Teile)
1
STAY/DUMP/LH COMP
2
STAY/DUMP/RH COMP
3
PIN/20X36
4
NIPPLE,GREASE
5
WASHER,SP/M12
6
NUT/M12
7
8676-402-250-20
8
SCREW/M8
9
1719-312-001-00
10
PLATE/LOCK COMP
11
V411-260-010-00
12
V500-163-002-00
13
SCREW/SOCKET/M8X60
14
NUT/M8
15
PLATE/RELEASE COMP
16
V210-360-602-50
17
8676-402-007-10
18
BOLT,SP/M8X25
19
PLATE/IR/22X65
20
WASHER,PL/M8
21
PIN,SPLIT/2.5X20
22
SPRING/HT022
