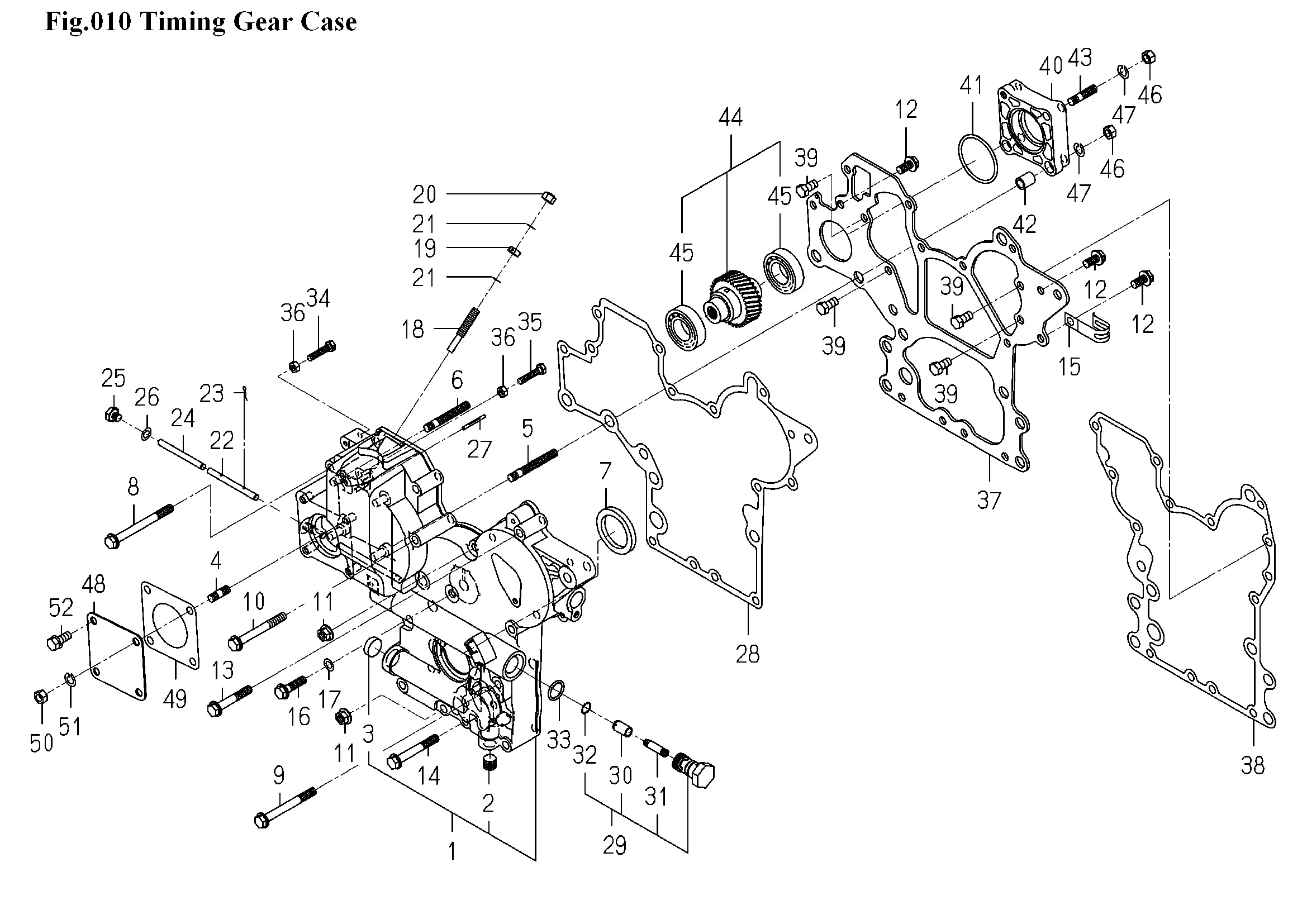

Stirnradgetriebegehäuse
Ersatzteile (52 Teile)
1
6211-310-075-00
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
8
FLANGEBOLT/M8X85
9
FLANGEBOLT/M8X75
10
FLANGEBOLT/M8X70
11
NUT/M08
12
FLANGEBOLT/M8X16
13
FLANGEBOLT/M8X50
14
FLANGEBOLT/M8X60
15
HOLDER/JE/9-9
16
V231-360-803-00
17
WASHER/08X14X01
18
6215-546-003-30
19
6209-409-001-00
20
NUT,CAP/M8
21
PACKING
22
PIN/ARM
23
PIN/SNAP
24
PIN
25
PLUG/SCREW
26
WASHER/08X14X01
27
PIN/GROOVE
28
6211-312-005-10
29
VALVE/RELIEF ASSY
30
PISTON/VALVE/RELIEF
31
SPRING/RELIEF VALVE
32
RING,SNAP/12 C
33
O-RING/1A,P18
34
6209-050-001-00
35
6209-050-002-00
36
V301-260-006-00
37
6211-311-013-20
38
6211-312-006-10
39
6902-050-816-00
40
SPACER
41
O-RING/1A,S50
42
PIN/TUBE
43
STUD
44
SHAFT/HYDRAULIC ASSY
45
BEARING/BALL
46
NUT/M8
47
WASHER,SP/M8
48
COVER/HYDRAULIC
49
6211-322-002-00
50
NUT/M8
51
WASHER,SP/M8
52
V211-560-802-00
