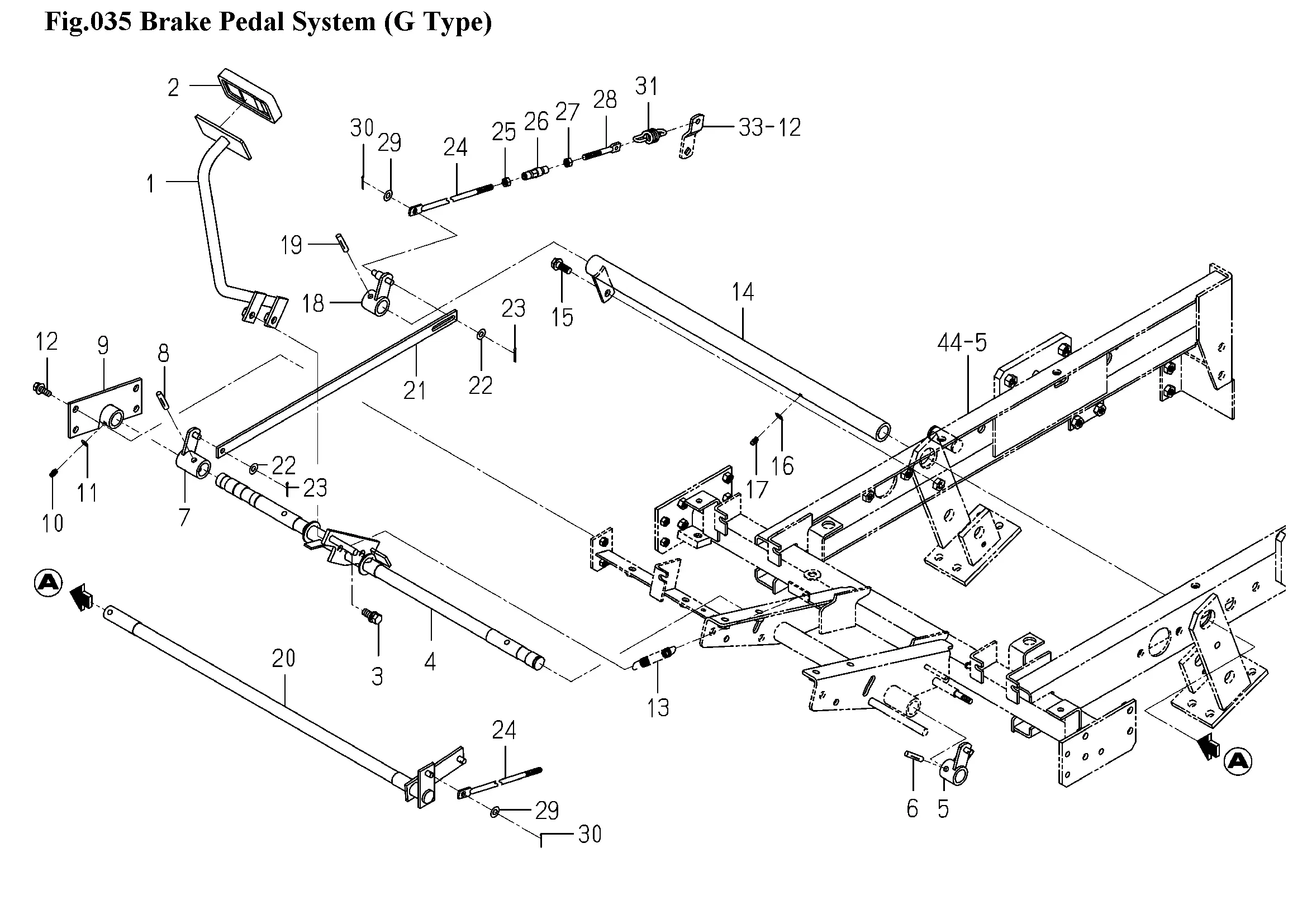

Bremspedal (G-Type)
Ersatzteile (31 Teile)
1
1771-312-210-00
2
Pedalgummi, Bremse (rot)
3
V211-261-002-50
4
1771-312-220-00
5
1771-312-230-00
6
PIN/GROOVE
7
1771-312-240-00
8
PIN/GROOVE
9
1771-312-260-00
10
NIPPLE,GREASE
11
V411-260-006-00
12
BOLT,SP/M8X20
13
SPRING/HE095
14
HUB/BRAKE/G COMP
15
V231-361-002-50
16
V411-260-006-00
17
NIPPLE,GREASE
18
ARM/COUNTER/G COMP*
19
PIN/GROOVE
20
SHAFT/COUNTER/G COMP
21
1771-312-051-00
22
WASHER,PL/M8
23
PIN,SPLIT/2.5X20
24
ROD/M08X350
25
NUT/M8
26
TURNBUCKLE/M8
27
NUT/LH/M08
28
ROD/M08X72/LH
29
WASHER,PL/M8
30
PIN,SPLIT/2X20
31
SPRING/HE060
