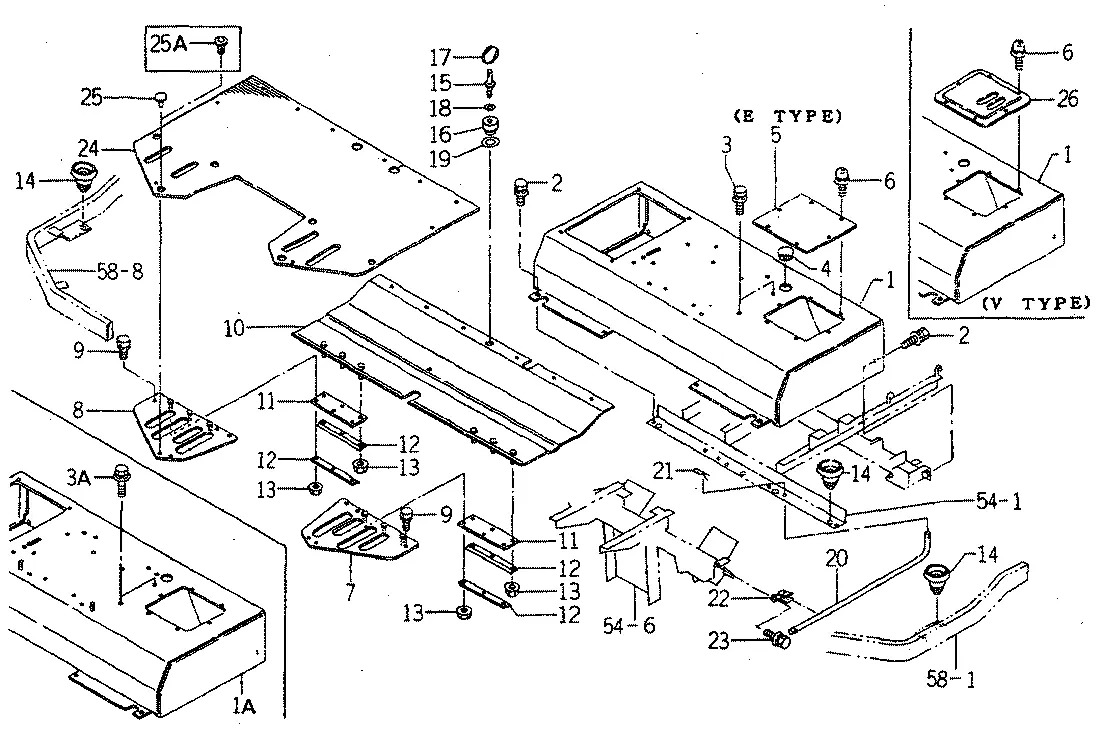

Bodenbleche
Ersatzteile (28 Teile)
1
1636-611-230-10
1A
1636-611-230-20
2
BOLT,SP/M8X16
3
BOLT,SP/M8X20
3A
BOLT,SP/M8X25
4
INSULATOR
5
1636-611-003-00
6
SCREW,SP/M6X16
7
1636-611-250-00
8
1636-611-260-00
9
V211-260-801-60
10
1636-611-270-10
11
1636-611-005-10
12
1636-611-004-10
13
NUT/WASHER/M6
14
Gummipuffer
15
1636-611-280-00
16
GROMMET/10X30X5
17
SPRING/CLIP
18
V411-260-010-00
19
WASHER,PL/M18
20
1636-611-001-00
21
PIN,HAIR
22
HANGER,SUPPORT
23
BOLT,SP/M8X16
24
1636-611-002-20
25
CLIP(B)
25A
RIVET/SCREW ASSY
