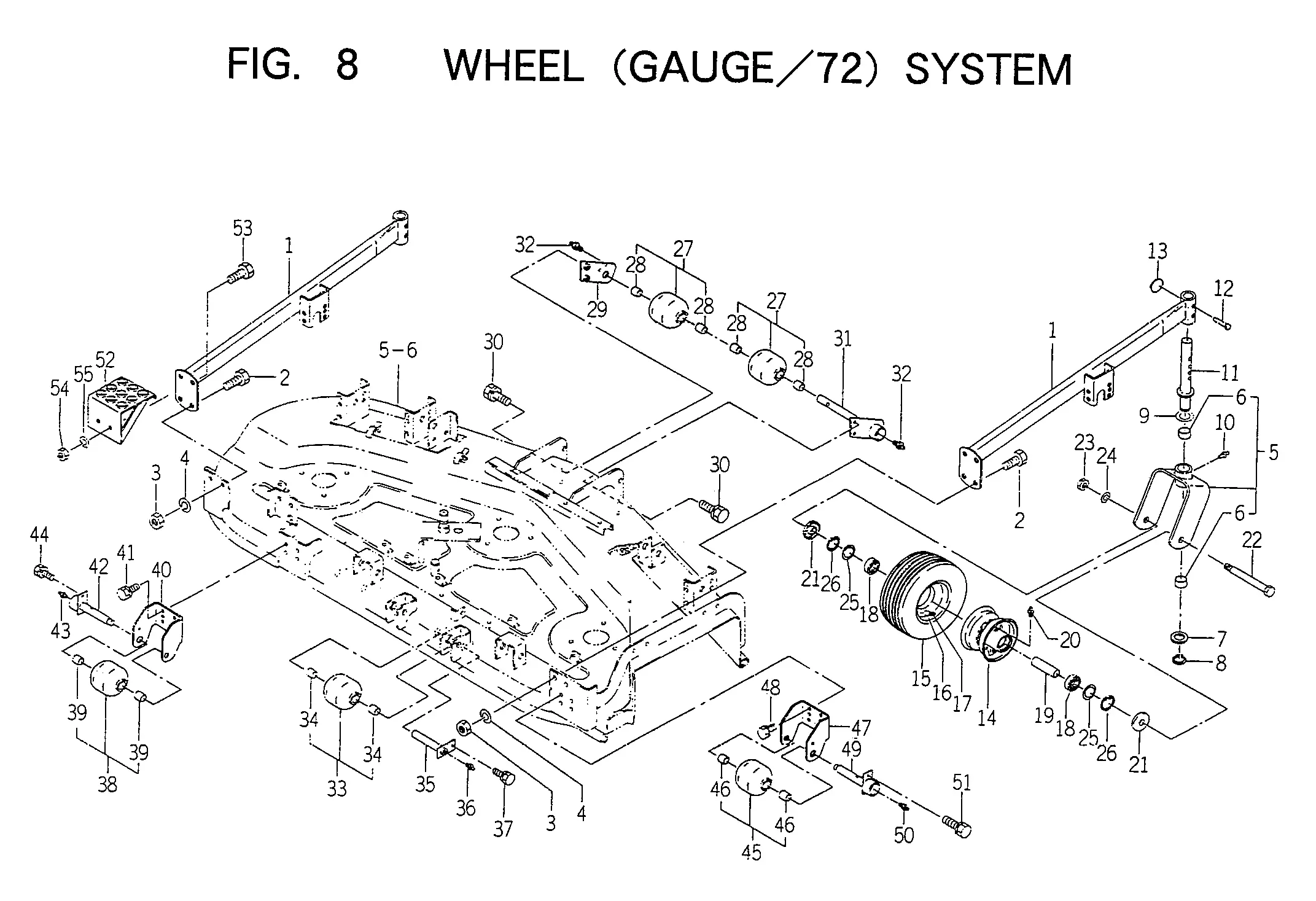

Radgabeln,Laufrad
Ersatzteile (55 Teile)
1
Stützradrahmen
2
BOLT/M12X25/7T
3
V304-460-012-00
4
WASHER,SP/M12
5
FORK/WHEEL ASSY
6
BUSH/30X34X20
7
WASHER/30X50X05
8
RING,SNAP/30 C
9
COLLAR,THRUST
10
NIPPLE,GREASE
11
Bolzen
12
PIN/10X53
13
SPRING/CLIP
14
8654-501-340-10
15
Reifen, 11.00x4.00-5 (NMJ)
16
1386-241-002-00
17
V999-200-003-00
18
Kugellager 6204 RS
19
COLLAR/22X27X93
20
NIPPLE,GREASE/PT1/8
21
COLLAR/SEAL COMP
22
PIN/20X175
23
NUT/M16/7T
24
WASHER,SP/M16
25
WASHER/34X47X01
26
RING,SNAP/47 C
27
Laufrolle
28
8654-501-283-00
29
Halter
30
BOLT,S/M10X25/7T
31
Radbolzen
32
Schmiernippel M10x1,
33
Laufrolle
34
8654-501-283-00
35
Bolzen Typ=H-22-128-0-000
36
V764-150-000-00
37
V211-560-801-60
38
Laufrolle
39
8654-501-283-00
40
Halter, li
41
BOLT,S/M10X25/7T
42
Bolzen Typ=H-22-128,5-0-000
43
Schmiernippel M10x1,
44
V211-560-801-60
45
Laufrolle
46
8654-501-283-00
47
Halter, re
48
BOLT,S/M10X25/7T
49
Bolzen Typ=H-22-128,5-0-000
50
Schmiernippel M10x1,
51
V211-560-801-60
52
Tritt
53
BOLT/M12X25/7T
54
V304-460-012-00
55
WASHER,SP/M12
