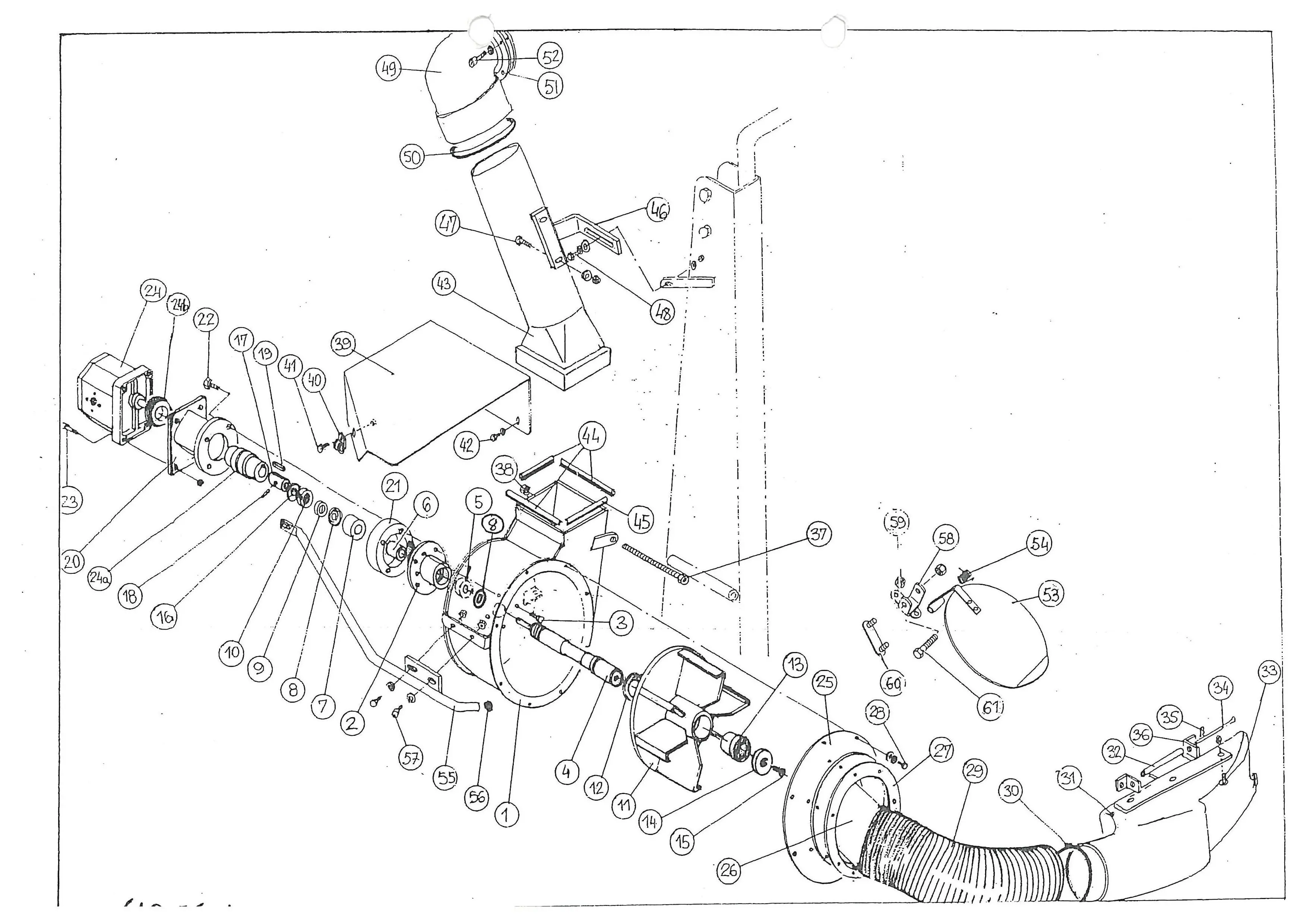

SAUGSYSTEM & 400 MM TURBINE / SAMMELBEHÄLTER
Ersatzteile (71 Teile)
1
S610.3001
2
S660.4144
3
C161.1025Z
3a
C173.10
4
S590.4010
5
C141.6205 2RS C3
6
S660.4090
7
C141.3205 2RS
8
Metal aasket
9
S595.4070
10
Locknut
11
S590.3010
12
C211.35E
13
Lockinq assembly
14
Washer
15
C161.820Z
16
S590.4067
17
S670.4022
18
C192.0625
19
C201.8730
20
S670.3004
21
S590.4069
22
C161.1030
22a
Sprina washer
23
C162.835Z
23a
C173.8
24
C137.4042
24a
S670.4043
24b
S670.4019
25
Cover
26
lntake of blower shell
27
Cover
28
Screw
28a
C181.L8Z
28b
C183.8Z
29
C273.200A
30
C217.SGH205
31
S590.2025
31a
S610.2018
31b
S590.3027
31c
S610.3021
32
S590.4046
33
C168.P8252
34
S670.4042
35
C194.3
36
S670.4018
37
S590.4036
38
C172.20Z
39
S610.3020
40
C217.NOR02515
41
C161.620Z
41a
C173.6
42
C161.820Z
42a
C181.28Z
42b
C183.8Z
43
Shooter blower
44
lnlet gasket
45
lnlet gasket
46
S610.4009
47
C163.1035Z
47a
C181.210Z,
47b
C183.102
47c
C171.102
48
C161.10452
48a
C181.2102
48b
C173.10
49
Container intake shooter
50
lnlet gasket
51
S595.4124
52
C162.6202
52a
C183.62
